    L76-M33 L76 GPS module GNSS Antenna MTK3333 Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS &

    • L76-M33 L76 GPS module GNSS Antenna MTK3333 Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS &
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Model Number:L76-M33
    Package:SMD Type
    Promise 100% &:No fake
    Embedded patch antenna:GPS, GLONASS, BeiDou, Galileo and QZSS
    Whole part number:L76-M33

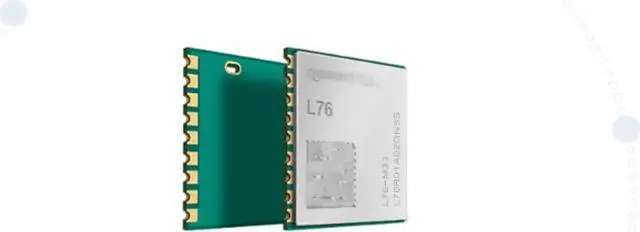

    L76, the extremely compact GNSS module, is a concurrent GNSS receiver with multiple GNSS systems. It provides simultaneous GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 can acquire and track any mix of multiple satellite signals.
    Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.
    Combining advanced AGPS called EASY (Embedded Assist System) and proven AlwaysLocate technology, L76  achieves the highest performance and fully meets the industrial standard. Additional feature of embedded logger function called LOCUS allows L76 to log position information to internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding cost.
    Its super performance makes L76 ideal for automotive, industrial PDA,  consumer and industry applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.
    Key Benefits
      Extremely compact size, 10.1mm × 9.7mm ×2.5mm
      Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS
      EASY, an advanced AGPS technology without external memory
      Ultra low tracking power consumption, 18mA
      AlwaysLocate, an intelligent algorithm for power saving
      LOCUS, an embedded logger solution with no need for host and external flash
      High sensitivity, -165dBm @Tracking, -148dBm @Acquisition
      99 acquisition/ 33 tracking channels and 210 PRN channels
      Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)
      Anti-Jamming, Multi-tone Active Interference Canceller
      Balloon mode, for high altitude up to 80km
      PPS VS. NMEA can be used for time service

    We can supply the all series of Quectel GNSS Module,just check in our store if you need other model.
    L76 *1pcs
