SIMCOM SIM68MLB GNSS module GPS BeiDou QZSS open service L1 band reception capability 1575.42MHz EASY self-generated prediction

Model Number:SIM68MLB

SIM68MLB
SIM68MLB is a high performance and  reliable GNSS module. It is a GNSS module integrated with GPS & BeiDou  system in a LCC type with Airohas high sensitivity navigation engine, which allows customer to achieve  industrys high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
SIM68MLB provides simultaneous GPS, BeiDou, and QZSS open service L1 reception capability. With 33 tracking channels and 99 acquisition channels, SIM68MLB can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY (Embedded Assist System) with proven AlwaysLocate technology, SIM68M achieves the highest performance and fully meets the industrial standard.
Product Advantages
Support EASY self-generated orbit prediction
Support EPO orbit prediction
Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Product Details
Mechanical data

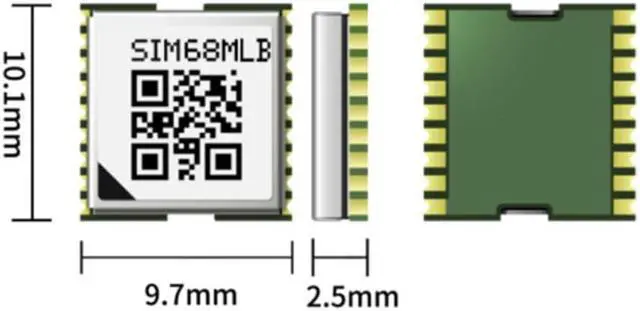

Dimensions : 10.1*9.7*2.5mm
Weight : 0.5g
Features
Support GPS/BeiDou/QZSS
(L1 Band Receiver 1575.42MHz)
Support EASY self-generated orbit prediction
Support EPO orbit prediction
Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Performance data
Receiver type : 33tracking/99 acquisition-channel GNSS receiver
Max. update rate : 10Hz
Sensitivity¹
Tracking : -165 dBm
Reacquisition : -160 dBm
Cold starts : -148 dBm
Time-To-First Fix²
Cold starts : 28 s
Warm start : 26 s
Hot starts :
EPO Assist : 13sCTTFF)
Accuracy
Automatic Position³ :
Speed : 0.1m/s
Operation temperature
5
: -40~+85
Interfaces
Serial interfaces : UART
Digital I/O
Pulse-per-second (PPS)
EINT0 input
Protocols
NEMA
PMTK
Electrical data
Power supply : 2.8V~4.3V
Backup power : 2.3V~4.6V
Power consumption
2,6
:
Acquisition : 25mA
Tracking : 20mA
AlwaysLocate : 340uA
Backup : 14uA
Antenna type : Active and passive
Antenna power : External or internal VCC_RF
Certifications
TBD
SIM68MLB GNSS Module*1pcs
