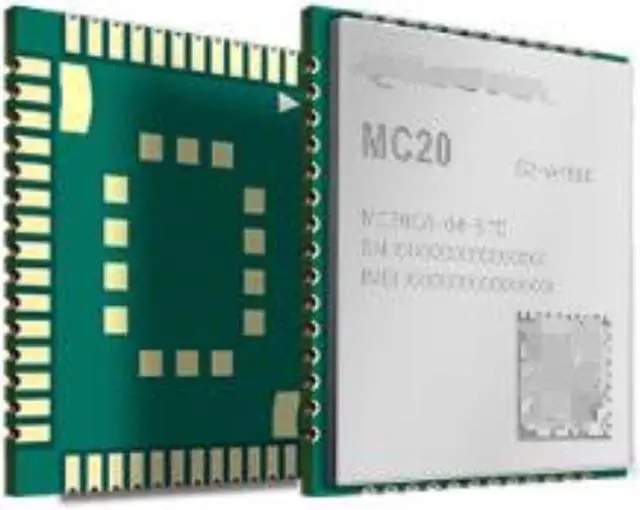

MC20 MC20CA-04-STD GSM/GPRS/GNSS BT3.0 &compare with SIM868

Model Number:MC20
Package:LCC Type
Promise 100% &:No fake
Whole part number:MC20CA-04-STD
Or:MC20CB-04-STD
MC20E:GSM/GPRS/GNSS BT3.0

The MC20 module is developed using the latest multi-function communication positioning chip from MediaTek. It is a full-featured communication module integrating LCC package, quad-band GSM/GPRS and advanced algorithm GNSS engine. It has the advantages of ultra-small size, low power consumption and dual card single standby. The MC20 not only embeds rich network protocols (such as TCP, UDP, PPP, FTP, HTTP, and SSL), but also integrates multi-constellation satellite systems (such as Beidou, GPS, QZSS) to provide wireless mobile communications and precise navigation and positioning. Features.
In addition to GSM/GPRS wireless communication capabilities, the MC20 module also supports advanced GNSS technology. It integrates EPOTM (users do not need to set up their own servers, directly obtain EPO data from MTK server), second-order technology, etc., enabling fast first-time positioning. Supporting multi-constellation satellite system demodulation algorithms such as Beidou, GPS, QZSS, etc., its positioning is more accurate, and its anti-multipath interference capability is stronger, which has more advantages than traditional GPS modules. In addition, the MC20 module has built-in LNA and low-power algorithms: the former increases its receiving sensitivity to -149dBm; the latter makes it consume only 40% of the normal operating mode in the low-power mode (GLP Mode).
The MC20 module is 40% smaller than the traditional GSM+GNSS solution, making it a bigger advantage in a variety of applications. Its main application areas are: wearable devices (smart watches), pet tracking, property tracking and driving recorders.
Main advantage
Ultra-small volume: 18.7mm × 16.0mm × 2.1mm
Multi-satellite navigation system: GPS/BeiDou/QZSS
GNSS receiver channel: 99 capture channels / 33 tracking channels
Support multiple AGPS technologies, such as EASYTM, EPOTM, second, etc.
Built-in LNA greatly enhances GNSS receiver sensitivity (-167dBm@ tracking mode): passive GNSS antenna can be used without any external low noise amplifier
Support for enhanced GNSS features such as SDK commands, LOCUSTM, AIC, and GLP
Multi-function quad-band GSM module: 850/900/1800/1900MHz
Embedded rich network protocol: TCP/UDP/PPP/HTTP/FTP/SSL
Support voice, SMS, QuecFOTATM, dual card single standby and OpenCPU function
Supports Bluetooth V3.0 and SPP & HFP-AG configuration files

We can supply the all series of Quectel MC20 Module,just check in our store if you need other model.
MC20*1pcs
