2pcs/lot Quectel L80-R L80RE-M37 GPS POT (Patch on Top) module GNSS Antenna MTK3337

Origin:Mainland China
Model Number:L80-R
Package:LCC
Promise 100% &:No fake
Embedded patch antenna:Support QZSS

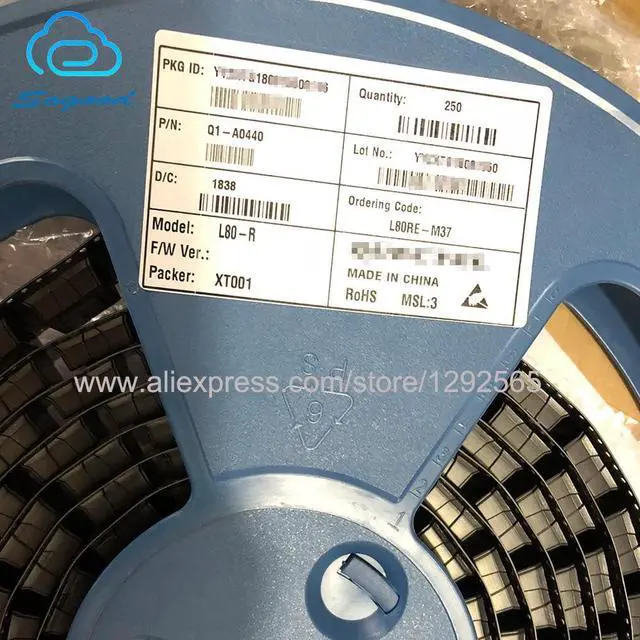

Whole part number:L80RE-M37

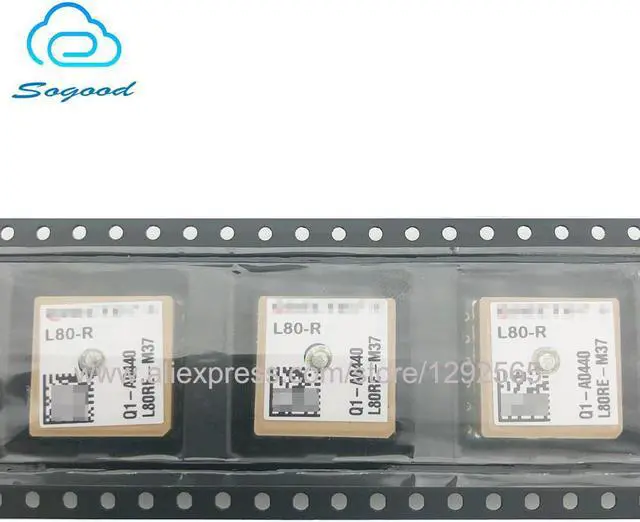

L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.
Combining advanced AGPS called EASY (Embedded Assist System) technology, L80-R achieves the highest performance and fully meets the industrial standard. EASY technology ensures L80-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80-R can fix position quickly even at indoor signal levels with low power consumption.
With its compact design, high precision and sensitivity, L80-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.
Key Benefits

Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm
  Extremely compact size: 16.0mm x 16.0mm x 6.45mm

Cost efficient for ROM-based version

Built-in LNA for better sensitivity
  EASY, advanced AGPS technology without external memory
  Ultra low power consumption in tracking mode, 20mA
  High sensitivity: 165dBm@Tracking, -148dBm@Acquisition

66 acquisition channels, 22 tracking channels
  Support QZSS
  Balloon mode, for high altitude up to 80km
  PPS VS. NMEA can be used in time service

Anti-Jamming, Multi-tone Active Interference Canceller
We can supply the all series of Quectel GNSS Module,just check in our store if you need other model.
L80-R *2pcs
