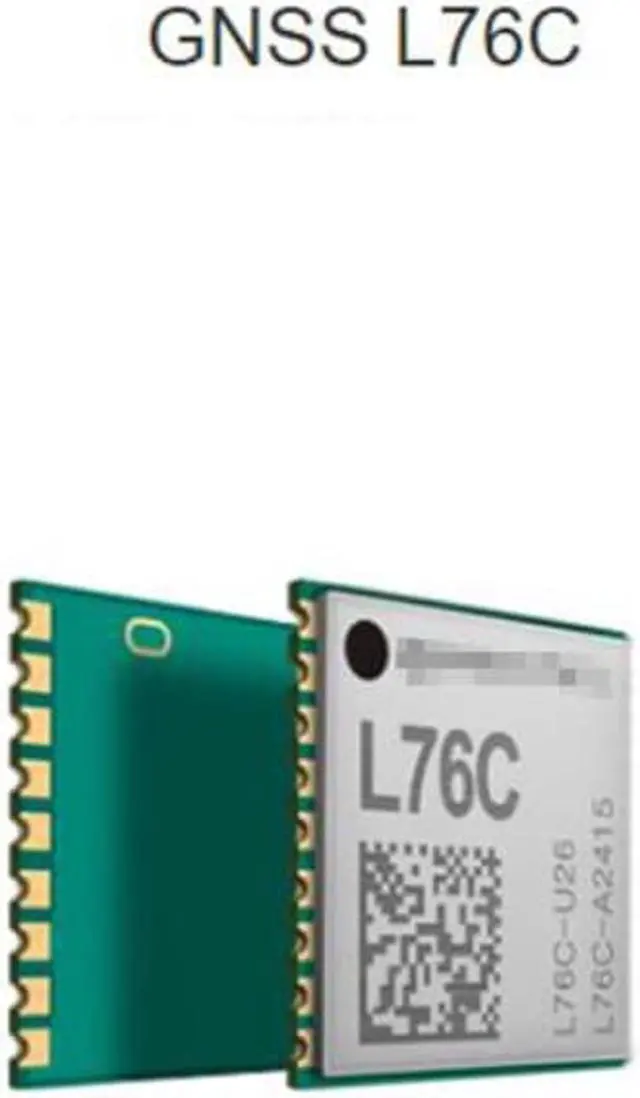

L76C L76C-U26 GNSS module support multi-satellite systems GPS BeiDou GLONASS Galileo QZSS

Model Number:L76C
Package:LCC
Promise 100% &:No fake
Embedded patch antenna:GPS BeiDou GLONASS Galileo QZSS
Whole part number:L76C-U26

The L76C is a GNSS that supports multi-satellite systems (GPS, BeiDou, GLONASS*, Galileo*, QZSS), multi-system joint positioning, supports multiple SBAS signal reception processes, and provides users with fast, accurate, high-performance positioning experience. Module. Its ultra-small size and 74 channels are tracked simultaneously; the built-in LNA ensures better performance in weak signal environments. In addition, the L76C is available in an LCC package for easy soldering.
Compared to a single GPS system, the L76C's multi-satellite positioning system allows for a significant increase in the number of visible and available satellites, while significantly reducing the initial positioning time, enabling higher positioning accuracy and accuracy even in complex urban environments. .
With the built-in Sensor Hub, the L76C module can be connected to a variety of sensors such as gyroscopes, accelerometers, magnetometers, and barometers for precise positioning. Through accurate scene and pattern recognition, it can ensure fast and accurate positioning in harsh signal environments. The effect is to significantly reduce the average operating power consumption and significantly increase the standby time of mobile phones, wearable devices and IoT devices.
The superior performance of the L76C provides an ideal solution for industrial and consumer applications. Ultra-low power consumption meets the high power requirements of portable devices, facilitating the integration of such applications.
Main advantage
Ultra-small size: 10.1mm × 9.7mm × 1.8mm
Support for multiple satellite systems: GPS, BeiDou, GLONASS*, Galileo* and QZSS
Built-in LNA for higher sensitivity
Built-in dual surface acoustic filter (SAW Filter) for enhanced noise cancellation
Ultra low working current consumption: 15mA @ tracking mode
Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)
Multi-band active interference cancellation technology to enhance anti-interference ability
Timing service: support PPS and NMEA synchronization function
Support geofencing, interference detection and mileage counting
Support SDK commands* to meet customized requirements

We can supply the all series of Quectel GNSS Module,just check in our store if you need other model.
L76C *1pcs
