SIMCOM LTE Cat1 module A7680C FDD-LTE B1/B3/B5/B8 TDD-LTE B34/B38/B39/B40/B41 compatible with SIM800C SIM868 SIM7020E

Origin:Mainland China
Model Number:A7680C
Package:LGA+LCC
Speed:10M
Type:4G LTE

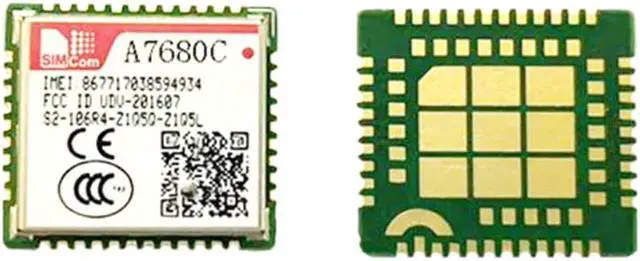

A7680C
A7680C is an ultra-small, ultra-thin LTE Cat 1 module for the Chinese market, supporting LTE-TDD/LTE-FDD wireless communication standards. The product supports a maximum downlink rate of 10Mbps and a maximum uplink rate of 5Mbps.
A7680C adopts the LGA+LCC package size of SIMCOM's classic 2G products, which realizes the smooth switch from classic 2G products (SIM800C, SIM868, etc.) to LTE products, which greatly facilitates the design of compact and fully functional terminal products for customers demand.
A7680C has a variety of built-in network protocols and supports the drivers of a variety of mainstream software operating systems (USB drivers for mainstream versions of operating systems such as Windows, Linux and Android) and software functions. At the same time, it also integrates mainstream industrial standard interfaces, with strong expansion capabilities, including UART, SDIO, I2C, GPIO and other rich interfaces, which are widely used in mainstream IoT applications, such as in-vehicle communication terminals, security terminals, POS, industrial routers And telemedicine terminals, etc..
Product Advantages
-Ultra-small size CAT 1 module
-Abundant hardware interfaces to meet various design requirements
-Compatible with classic 2G products SIM800C, SIM868 series modules
-Abundant software functions: remote upgrade (FOTA), base station positioning (LBS), SSL protocol
Product Details
General Features
Frequency Bands:
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B3/B5/B8
Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V
Dimensions: 15.7*17.6*2.1mm
Weight:TBD
Data Transfer
LTE Cat 1:
Uplink up to 5Mbps
Downlink up to10Mbps
EDGE: Uplink/Downlink up to 236.8Kbps
GPRS: Uplink/Downlink up to 85.6Kbps
Other Features
USB Driver for Microsoft Windows 7/8/10
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
Firmware update via USB/FOTA
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTP/DNS
RNDIS/PPP/ECM
TLS
LBS
TTS
MQTT
Wifi-scan
Interfaces
USB2.0
UART
(U)SIM card(1.8V/3V )
Analog audio
ADC
I2C
GPIO
Antenna: Primary
A7680C LCC+LGA*1pcs
