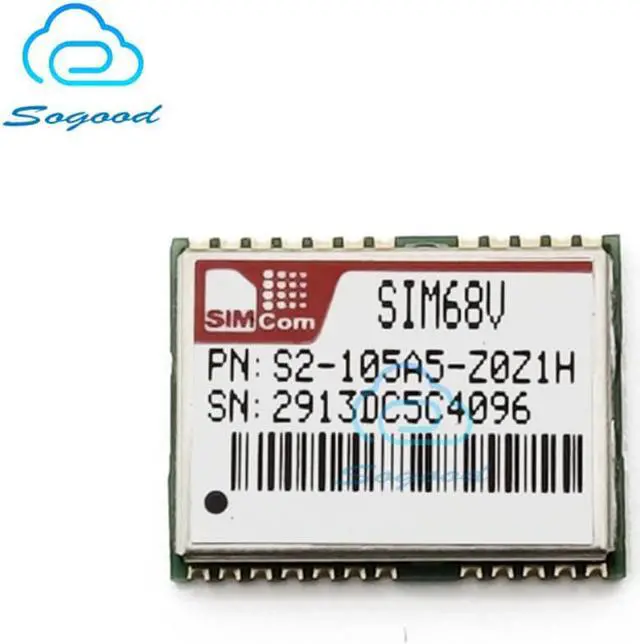

SIMCOM SIM68V GPS GLONASS Galileo module 100% Genuine standalone L1 frequency GNSS module SMT type with MTK chip

Model Number:SIM68V

SIM68V
GNSS Module
SIMCom presents a high performance and reliable GNSS module-SIM68V. This is a standalone L1 frequencyGNSS module in a SMT type with MTKs high sensitivity navigation engine, which allows customer to achieve industrys high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Product details
Mechanical data
Dimensions: 16*12.2*2.4mm
Weight: 1g
Features
Support GPS/GLONASS/Galileo
Support EASYTM self-generated orbit prediction
Support EPOTM orbit prediction
Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)
Support DGPS (RTCM)
Support Jamming Removing
Low-noise amplifier has been integrated
Interfaces
Serial interfaces UART, SPI / I²C
Digital I/O EINT0 input
Pulse-per-second (PPS)
Protocols NMEA
PMTK
Support product
SIM68 EVB KIT with USB V2.0 full speed interface
Approvals
CE
ROHS
REACH
Performance data
Receiver type
33tracking/99 acquisitionchannel GNSS receiver
Max. update rate
10Hz
Sensitivity1
Tracking:-167 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
Time-To-First-Fix2
Cold starts:28 s
Warm start:26 s
Hot starts:
EPO Assist:13sCTTFF)
Accuracy
Automatic Position3:
Speed4:0.1m/s
Operation temperature5: -40~+85
Electrical data
Power supply 2.8V~4.3V
Backup power 2.3V~4.6V
Power consumption2,6
Acquisition 34mA
Tracking 30mA
AlwaysLocateTM 340uA
Backup 14uA
Antenna type Active and passive
Antenna power External or internal VCC_RF
We can supply all this kind of Antennas as below.Just contact us if you need more!

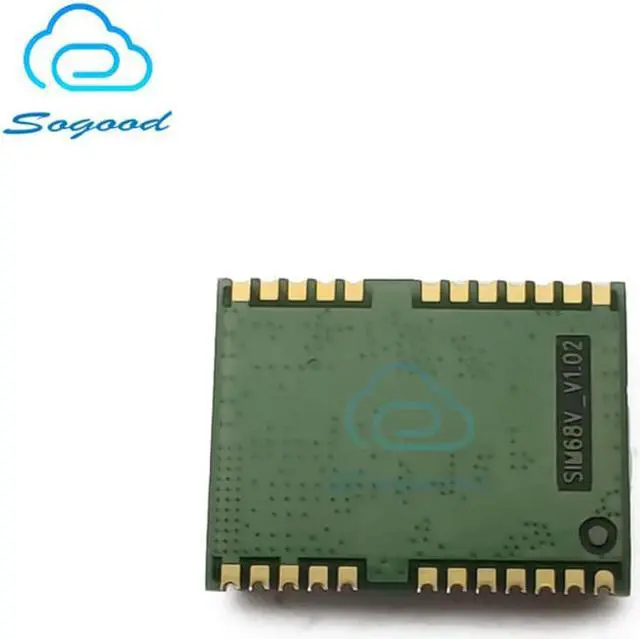

SIM68V GNSS module
*1pcs
