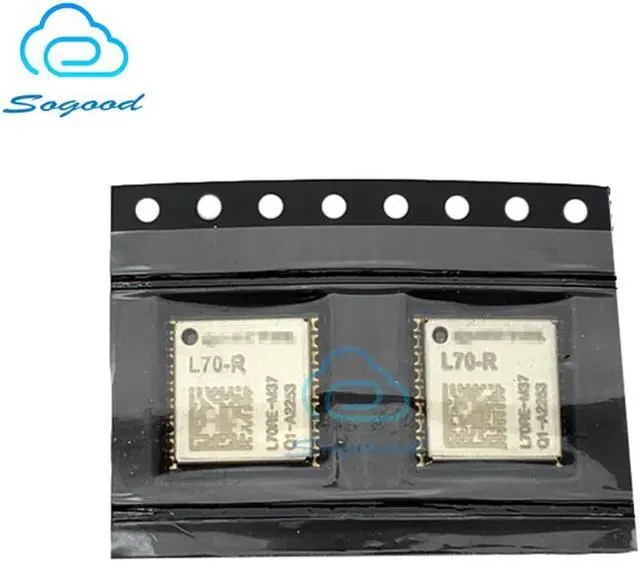

Model Number:L70-R
Package:SMD Type
Promise 100% &:No fake
Embedded patch antenna:GPS, QZSS
Whole part number:L70RE-M37
L70-R, a low cost ROM-based GPS module, brings the high performance of MTK positioning engine to the industrial applications with compact profile, ultra low power consumption and fast positioning capability.
Combining advanced AGPS called EASY (Embedded Assist System) technology, L70-R achieves the highest performance and fully meets the industrial standard. EASY technology ensures L70-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L70-R can fix position quickly even at indoor signal levels with low power consumption.
With its compact design, high precision and sensitivity, L70-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA.
consumption of L26 also makes it easier to be applied to power sensitive devices, especially portable applications.
Key Benefits
Extremely compact size: 10.1mm × 9.7mm × 2.5mm
Cost efficient for ROM-based version
Ultra low power consumption in tracking mode, 13mA
EASY, an advanced AGPS technology without external memory
High sensitivity: -165dBm @Tracking, -148dBm @Acquisition
66 acquisition channels, 22 tracking channels
Support QZSS
Balloon mode, for high altitude up to 80km
PPS VS. NMEA can be used for time service
Great anti-jamming performance due to multi-tone active interference canceller
We can supply the all series of Quectel GNSS Module,just check in our store if you need other model.
L70-R *2pcs
