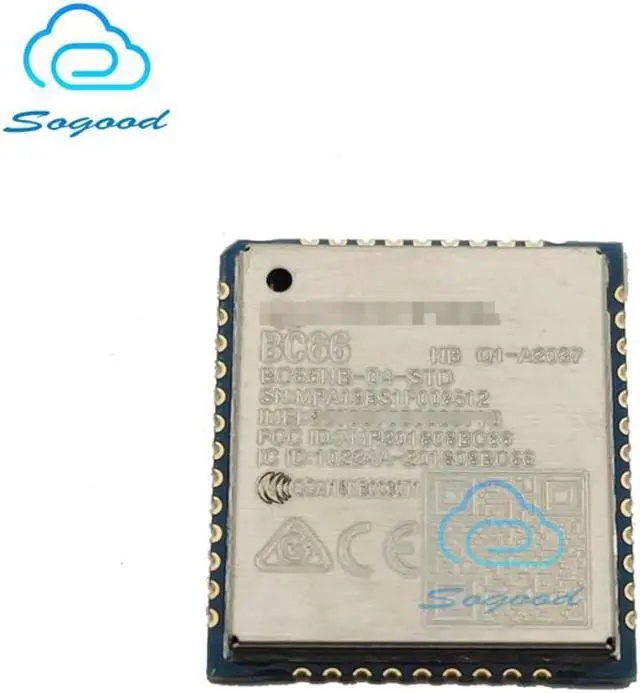

BC66 BC66NB-04-STD LTE Cat NB1 NB-IoT LPWA Global Module B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26*/B28/B66

Model Number:BC66

LTE BC66 LPWA Module
BC66 is high-performance, multi-band LTE Cat NB1 module with extremely low power consumption. The ultra-compact 17.7mm × 15.8mm × 2.0mm profile makes it perfect choice for size sensitive applications. Designed to be compatible with Quectel GSM/GPRS M66 module in the compact and unified form factor, BC66 provides a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT network.
Overview
BC66 is high-performance, multi-band LTE Cat NB1 module with extremely low power consumption. The ultra-compact 17.7mm × 15.8mm × 2.0mm profile makes it perfect choice for size sensitive applications. Designed to be compatible with Quectel GSM/GPRS M66 module in the compact and unified form factor, BC66 provides a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT network. BC66 provides abundant external interfaces and protocol stacks, as well as specialized PSM_ENIT for easy module wake-up via the external interrupt.
BC66 adopts surface mounted technology, making it an ideal solution for durable and rugged designs. The low profile and small size of LCC package allow BC66 to be easily embedded into space-constrained applications and provide reliable connectivity with applications.
Due to compact form factor, ultra-low power consumption and extended temperature range, BC66 is a best choice for a wide range of IoT applications, ranging from smart metering, bike sharing, smart wearables, smart parking, smart city, security and asset tracking to home appliances, agricultural and environmental monitoring, etc. Additionally, it is able to provide a complete range of SMS and data transmission services to meet client-side demands.
Key Benefits
 Compact LTE Cat NB1 module with ultra-low power consumption
 Low power supply voltage: 2.1V~3.63V
 Support high speed movement (80~120km/h)
 OpenCPU solution minimizes application design
 Specialized PSM_ENIT for easy module wake-up via external interrupt
 Build-in eSIM reserved
 Multi-band and rich external interfaces ensure convenient application
 Compatible with Quectel GSM/GPRS module, easy for future upgrading
 Embedded with abundant Internet service protocols
BC66 Module *1PCS
