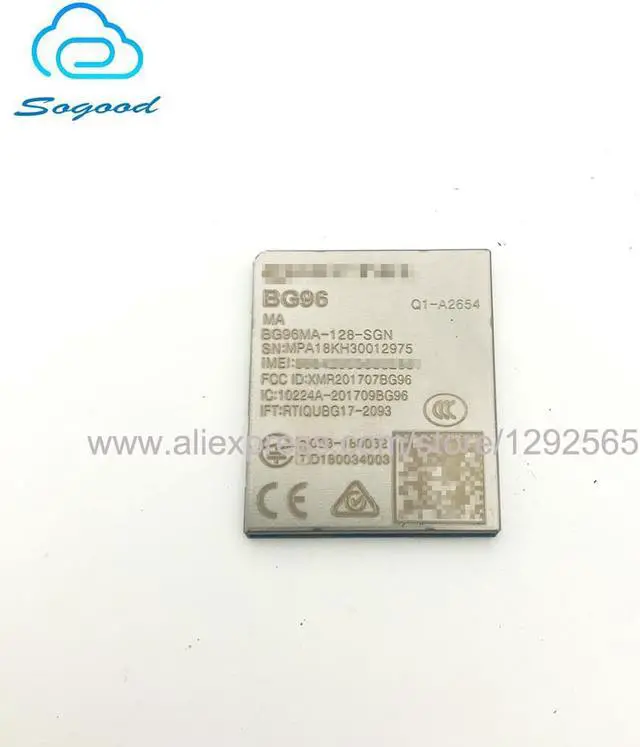

BG96MA-128-SGN LTE BG96 Cat.M1/NB1 & EGPRS Module NBIOT Modem Pin to pin EG91/EG95

Model Number:BG96
Package:LCC
Promise 100% &:No fake
FDD-LTE:B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B26/ B28
Ultra-low power consumption:NB-IoT module
Whole part number:BG96MA-128-SGN
TDD-LTE:B39 (for Cat M1 only)

BG96 is a series of LTE Cat M1/Cat NB1/EGPRS module offering a maximum data rate of 375Kbps downlink and 375Kbps uplink. It features ultra-low power consumption, and provides pin-to-pin compatibility with Quectel LTE module EG91/EG95, Cat NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.

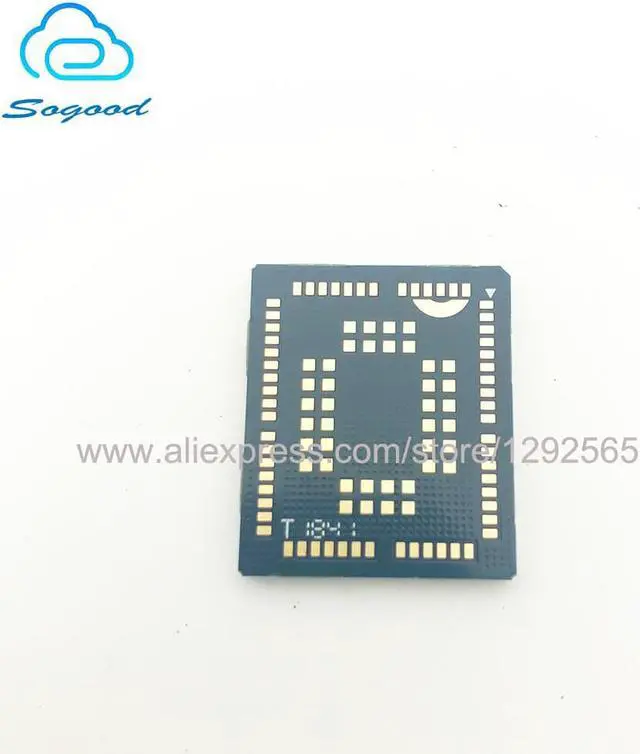

With a cost-effective SMT form factor of 26.5mm × 22.5mm × 2.3mm and high integration level, BG96 enables integrators and developers to easily design their applications and take advantage from the modules low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.
A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator) and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux and Android) extend the applicability of the module to a wide range of M2M
applications such as wireless POS, smart metering, tracking, etc.
Key Benefits
 LTE Cat M1 & Cat NB1 & EGPRS module with ultra-low power consumption
 Compact SMT form factor ideal for size-constrained applications with tight space
 Easy migration from GSM/GPRS, UMTS/HSPA and LTE modules
 Super slim profile in LGA package
 Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
Robust mounting and interfaces

BG96 *1pcs
