Quectel LPWA module BG95 BG95-M6 LTE Cat M1/Cat NB2/EGPRS B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85

Origin:Mainland China
Model Number:BG95-M6

LTE BG95-M6
The BG95-M6 is a multi-mode LPWA module which supports LTE Cat M1/Cat NB2/EGPRS and integrated GNSS and which meets the 3GPP Release 14 specification. The BG95-M2 has pin-to-pin compatibility with Quectel LTE Cat 4 modules EG91/EG95, LTE Cat M1/Cat NB1/EGPRS module BG96, NB-IoT module BC95, UMTS/HSPA modules UG95/UG96 and GSM/GPRS module M95.
The BG95-M6 achieves maximum downlink rates of 588Kbps and uplink rates of 1119Kbps under LTE Cat M1. The modules integrated RAM and flash memory enables ultra-low power consumption, and the ARM Cortex A7 processor (which supports ThreadX) enables up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.
The BG95-M6s highly integrated, cost-effective and compact SMT form factor of 23.6mm × 19.9mm × 2.2mm allows integrators and developers to benefit from its mechanical intensity and low power consumption and design their applications with ease, and its advanced LGA package enables fully automated manufacturing for high-volume applications. The modules comprehensive array of hardware-based security features enable trusted applications to run directly on the Cortex A7 TrustZone engine.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux, Android etc.) allow the module to serve a wide range of IoT applications such as wireless POS, smart metering, asset tracking, wearable devices and more.
Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE modules
ARM Cortex A7 processor (supports ThreadX)
Integrated RAM and flash memory in the baseband chipset
USB 2.0 interface
Comprehensive array of hardware-based security features
Supports DFOTA
Supports VoLTE (Cat M1 only), CS voice for GSM, QuecOpen®, and eSIM
Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design and development efforts
Robust mounting and interfaces

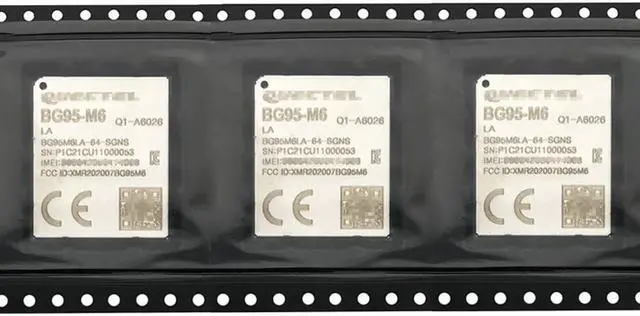

BG95-M6 Module*1pcs
