Longsung A9500 MGGT LPWAN Mini pcie module support eMTC/NB-IoT/EGPRS LTE-TDD Cat M1(eMTC)

Model Number:A9500

A9500
Longsung A9500 is one of the smallest LPWAN modules in LCC castellation packaging with the compact size of 24.0 × 26.0 × 2.5mm, ultra low power consumption and extended temperature range.
Designed for use in any LPWAN network in the world. In eMTC network, A9500 enables connect to the Internet at DL data speed up to 512Kbps. In the area where eMTC service are not available, A9500 still enables reliable and secure data connect over NB-IoT/EGPRS network.
General features:
LTE-TDD Cat M1(eMTC) Single-bandB39
LTE-FDD Cat M1(eMTC)B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B26/B28
NB-IoTB1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B26/B28
EGPRS Quad-bandB2/B3/B5/B8
Control via AT commands(GSM07.05,GSM07.07,V.25TER,GPRS,and LongSung enhanced AT commands)
Supply voltage range 3.1V-4.2V
Low Power consumption - eDRX mode:
Dimensions: 24.0mm×26.0mm×2.5mm
Soldering mounted type
Temperature range:-40°C to +85°C
Specifications for data:
Cat M1 R13Up to 1Mbps DL&UL
Cat NB1 R13Up to 200Kbps DL&UL
Interfaces:
LCC package
- Power supply
- USIM/SIM 3V, 1.8V
- UART
- NET_STATUS
- PCM
- IIC
- RESET#
- POWER_ON#
- VOUT_2V85
- VOUT_1V8
- ADCs (1.8V tolerance)
-SPI
-USB
-GPIOs
-GNSS
- Antenna interface
Additional features:
Embedded TCP/IP stack
MQTT
LWM2M
UDP
CoAP
TTS
LongSung FOTA
OpenCPU
Soft SIM
Approvals:
RoHS/CCC/CTA/GCF/CE/PTCRB/FCC

A9500 series wireless module is a wireless communication module developed by Longshang Technology. It also supports GNSS positioning and navigation services.
Including
A9500 MGGT, A9500 NGGT, A9500C
, of which:
A9500 MGGT supports eMTC / NB-IoT / EGPRS;
A9500 NGGT supports single NB-IoT;
A9500C supports LTE CAT1
The low power consumption and high performance of the A9500 series wireless module make it particularly suitable for wireless connection of IoT terminals. Can be widely used in smart home, smart medical, smart city, smart environmental protection, car networking and other fields.
A9500 MGGT Band Configuration
A9500 MGGT
FDD-LTE eMTC B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B26 / B28
TDD-LTE eMTC B39
Diversity reception not supported
NB-IoT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B26 / B28
EGPRS B2 / B3 / B5 / B8
GNSS GPS + BeiDou + GLONASS
A9500 NGGT band configuration
A9500 NGGT
Diversity reception not supported
NB-IoT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B26 / B28
GNSS GPS + BeiDou + GLONASS
A9500C Band Configuration
A9500C
FDD-LTE CAT1 B1 / B3 / B5
TDD-LTE CAT1 B41
Diversity reception support
GNSS GPS + BeiDou + GLONASS
The A9500 series wireless module adopts an advanced highly integrated design solution. It integrates RF and baseband on a PCB to complete wireless receiving, transmitting, baseband signal processing, and audio signal processing functions (A9500 MGGT, A9500 NGGT voice function reservation), single-sided Layout, external application interface is LCC PAD mode. The A9500 series wireless module supports AT command expansion, which can realize user personalized customization scheme.

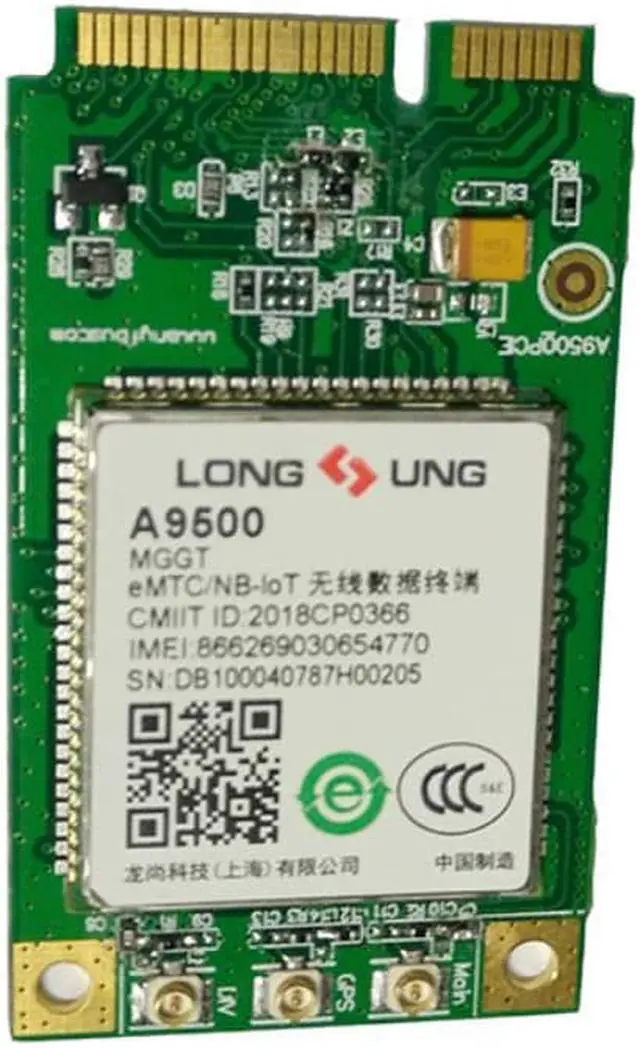

A9500 Mini PCIe MGGT LPWWN Module *1pcs
