Compex 2.4GHz/5GHz Diplexer LTE Coexistence Filter-SMA Output SMA-DP-LTE SMA-DP Diplexer interface board U.FL to SMA B7 B30 B40

Model Number:SMA Diplexer

2.4GHz/5GHz Diplexer with/without LTE Coexistence Filter-SMA Output
Model: SMA-DP-LTE / SMA-DP
KEY FEATURES
Combine the 2.4GHz and 5GHz signals to one single dual-band
antenna
LTE coexistence option are with High Rejection in LTE bands
especially B7/B30/B40 and B41
Low insertion loss
APPLICATIONS
WiFi bandpass filter that enables the coexistence of LTE and
WiFi/Bluetooth signals
WiFi or LTE Gateways, Routers, and Set-top boxes
WiFi Access Points
Specifications
Description
:

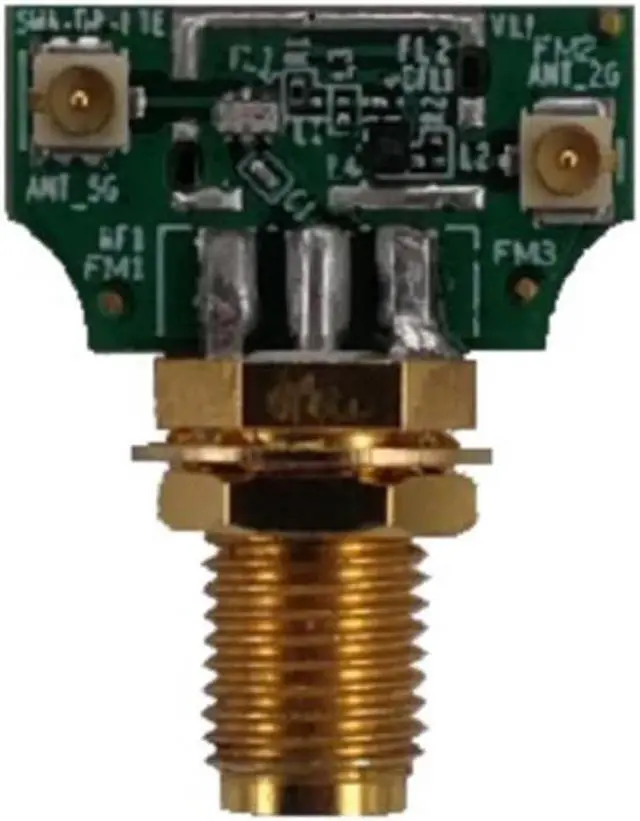

Diplexer interface board (U.FL to SMA)
Host Interface:
1x1 2.4GHz U.FL connector
1x1 5GHz U.FL connector
1x1 2.4/5GHz SMA connector
Dual Band
:
Yes
Frequency Range:
2412MHz~2472MHz
4900MHz~5950MHz
Insertion Loss:
SMA-DP-LTE
2412MHz~2472MHz: 1.2dB
4900MHz~5950MHz: 1.2dB
SMA-DP
2412MHz~2472MHz: 0.9dB
4900MHz~5950MHz: 1.3dB
VSWR:
SMA-DP-LTE
2412MHz~2472MHz: 1.6:1
4900MHz~5950MHz: 1.6:1
SMA-DP
2412MHz~2472MHz: 1.2:1
4900MHz~5950MHz: 1.6:1
Humidity:
Operating: 5% to 95% (non-condensing)
Storage: Max. 90% (non-condensing)
Temperature Range:
Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Impedance:
50
Dimension (W x H x D):
23mm x18 mm x10mm
SMA Diplexer*1PCS
