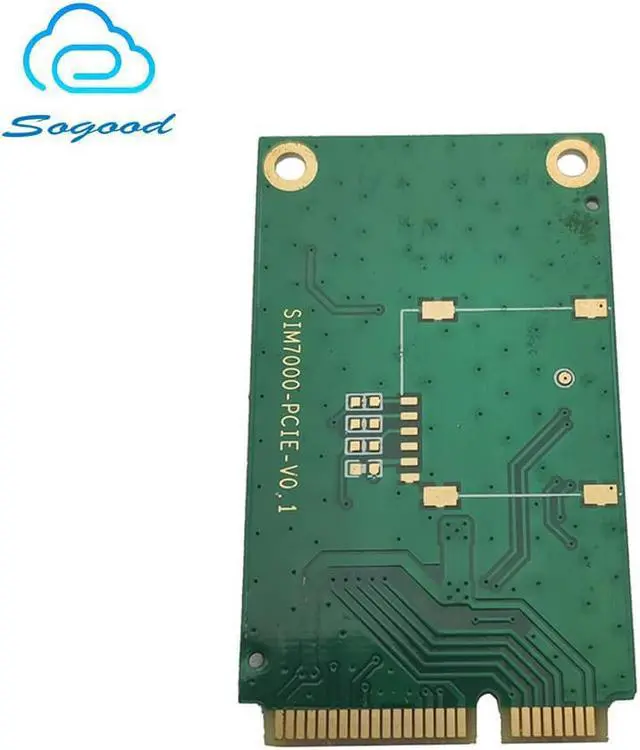

Model Number:SIM7000E
Package:Mini PCIe Type
Promise 100% &:No fake
Band:FDD-LTE B3/B8/B20/B28
Ultra-low power consumption:NB-IoT module
GNSS:(GPS,GLONASS,BeiDou and Galileo)
eMTC( CAT-M1) Module
The SIM7000X is Multi-Band LTE-FDD module solution in aSMT type which supports LTE CAT-M1(eMTC) up to 375kbpsdata transfer.
It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application.
The package of SIM7000X is compatible with SIM900 and SIM800F. AT commands of SIM7000X are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket.
It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.
Product advantages
With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000X can extend life to 10 years
SIM7000X provides deeper coverage enhancement compared to GSM
The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.
Product details
We can supply all series of SIM7000 series included SIM7000G.Just feel to search in our store if you need other kind.
SIM7000E Mini PCIe *1pcs
