Fibocom LTE Cat4 NL668-AM module for North America LTE-FDD B2 B4 B5 B12 B13 B66 B71 compatible with Quectel EC25-A EC25-AF

Origin:Mainland China
Model Number:NL668-AM

NL668-AM
Air Interface4G, 3G, 2G
Region
North America
Fibocom NL668-AM series is a series of LTE Cat 4 products for
North America.

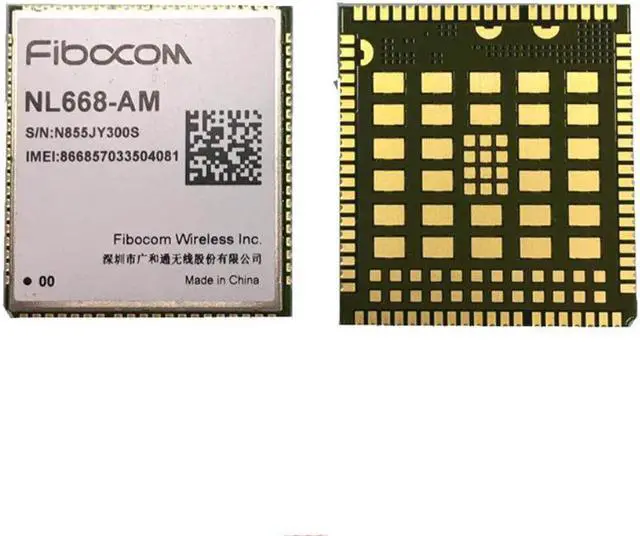

NL668-AM LTE module, which is packaged by LCC, support LTE FDD and WCDMA multiple frequency bands.
Product Features
LTE FDD: Band 2/4/5/12/13/66/71
WCDMA: Band 2/4/5

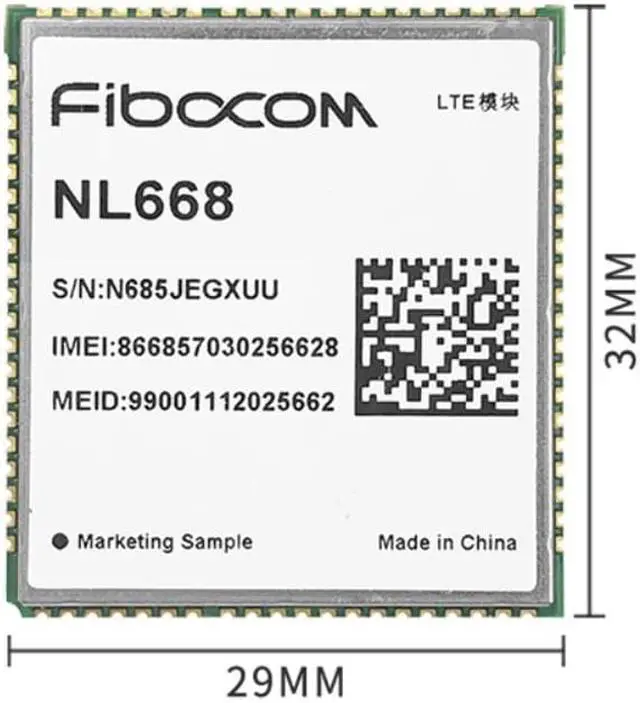

Dimension:
32 x 29 x 2.4mm
Operating Temperature:
-40~+85
Storage Temperature:
-40~+85
Operating Voltage: 3.3V~4.3V typical 3.8V
TX Power WCDMA: 23.5dBm±1dBm
               LTE FDD: 23.0dBm±1dBm
AT Command Set:3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands
Data
LTE FDD: 150Mbps DL/ 50Mbps UL
UMTS: 384kbps DL/ 384 kbps UL
HSPA/ HSPA+: 42Mbps DL/ 5.76Mbps UL
MUX: Basic Mode
SMS:MO/MT Text and PDU modes

HTTP(S)/FTP(S)/TCP(S)/UDP/IPV4/IPV6/NITZ/NTP/SSL

ECM/RNDIS/PPP/Gobinet

VoLTE/TTS/Recording/FFS/BIP

DFOTA/FOTA

GNSS/LBS/CellID

Open Linux*
Interfaces
SIM Card: 1.8V/3.0V
USB 2.0
UART
I2C
PCM/I2S
ACD
SPI*
SGMII
GPIO
Antenna:
Main/Div/GNSS
Driver
Driver:
Linux/Android/Windows
Approvals
Approvals:FCC/GCF/IC/PTCRB
               AT&T/VzW*/TMO*
               RoHS/HF
NL668-AM*1PCS
