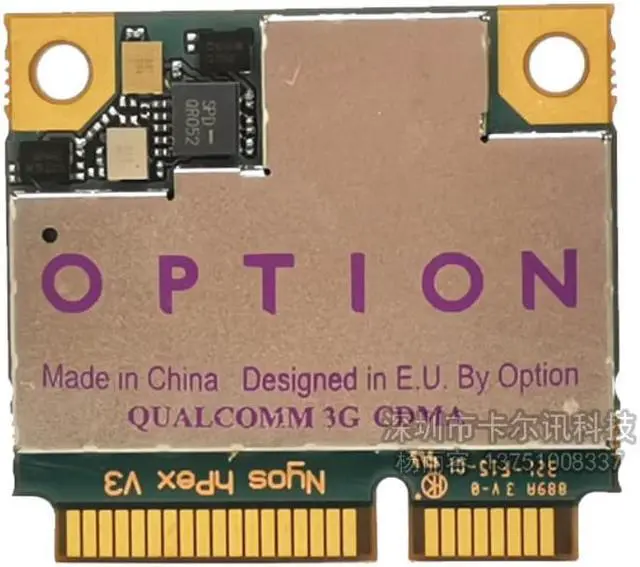

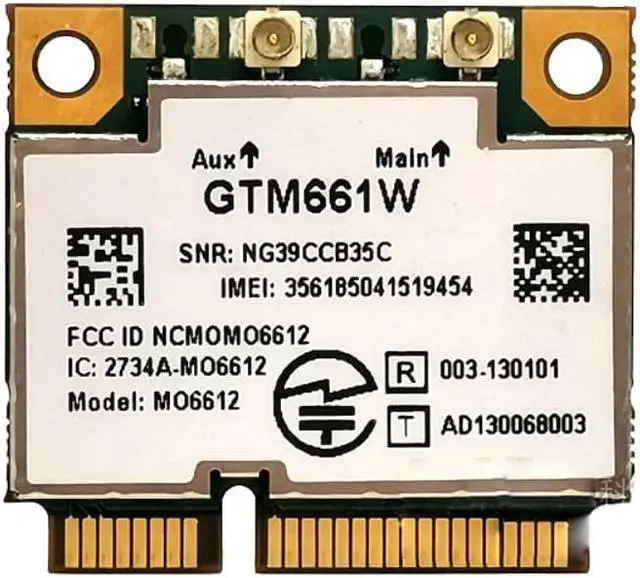

Option GTM661W 3G wireless module half height mini pcie card for tablet computer laptop Global 2G / 3G coverage GSM GPRS EDGE

Origin:Mainland China
Model Number:GTM661W

Rich connections
High-speed data connection: 14.4Mbps downlink/uplink 5.76Mbps (HSPA)
High sensitivity GPS connection
PCM voice function
Global 2G/3G coverage
Quad-band GSM / GPRS / EDGE
Quad-band HSDPA / HSUPA
Hardware specifications
Physical specifications
The appearance of PCI Express mini card, version 1.2, H1 type (half angle)
Dimensions: 26.8 mm × 30 mm × 4.2 mm
Weight: 9 g
Working temperature: -30°C to +70°C
Working humidity range: 10-90%RH non-condensing
Storage temperature: -40°C to +85°C
Storage humidity range: 5-95%RH non-condensing
maximum. Connection speed
GSM: 14.4 Kbps DL/14.4 Kbps UL
GPRS: 85.6 Kbps DL/85.6 Kbps UL (Class 12)
EDGE: 236.8 Kbps DL/236.8 Kbps UL (Level 12)
UMTS mode: 384 Kbps DL/384 Kbps UL
HSDPA mode: Downlink rate 14.4 Mbps (category 10)
HSUPA mode: 5.76 Mbps (category 6) uplink rate
HSPA+ version 7 SW function CPC (DTX / DRX), HS-SCCH less operation, enhanced CELL_FACH, enhanced L2, EF-DPCH
Memory configuration
128 MB NAND + 64 MB DDR MCP memory, can store up to 600 FW images
Hardware description
MDM6200 (GTM6X1)
Simultaneous equalization and receive diversity on all frequency bands (advanced receiver type 3I), except GSM / GPRS / EDGE
maximum
RF output power
GSM / GPRS 850/900 MHz frequency band with power Class 4 (2 W, 33 dBm)
Power Class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz band
Power E2 (0.5 W, 27 dBm) EDGE 850/900 MHz frequency band
Power E2 level (0.4 W, 26 dBm) EDGE 1800/1900 MHz frequency band
Power level 3 (0.25 W, 24 dBm) UMTS 850/900/1900/2100 MHz frequency band
Product specifications
Supported frequency band
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
UMTS/HSDPA/HSUPA:: MHz 800-850/900/1900/2100 (B1, B2, B5, B6, B8)
Typical radio frequency conducted sensitivity
EDGE (850/900/1800/1900): -104.5/-107.5/-104.5/-102.5 dBm
WCDMA (B1/B2/B4/B5/B8): -110/-110.5/-111/-112.2/-112 dBm
Driver support
Windows XP
Windows Vista
Windows 7

GTM661W *1pcs
