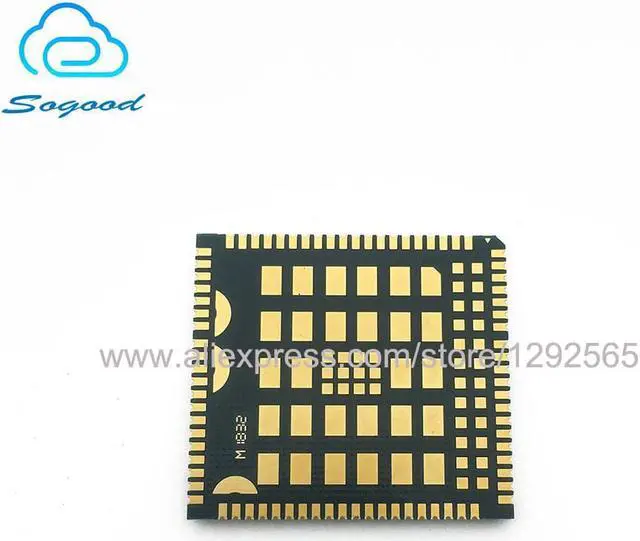

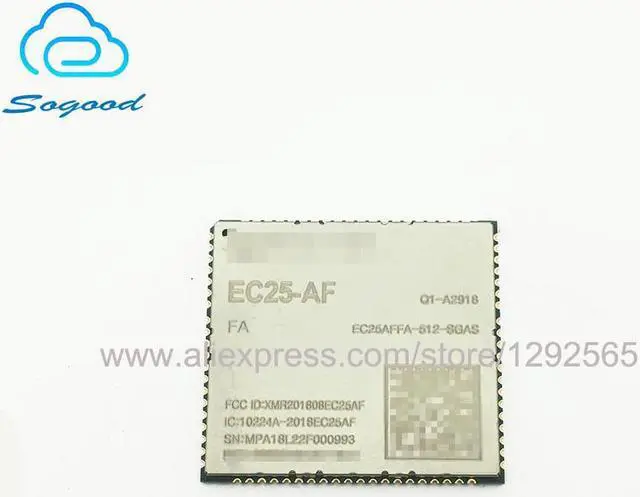

EC25 EC25-AF smt type 100% &B2/B4/B5/B12/ B13/B14/B66/B71 4G FDD-LTE/TDD-LTD CAT4 Module for North Amercian

Model Number:EC25-AF
Package:LCC
Speed:150M
Type:4G LTE
Band:B2/B4/B5/B12/ B13/B14/B66/B71
100% &:No fake

Quectel EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates. Designed in the compact and unified form factor, EC25 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for flexible migration among them in design and manufacturing.
Quectel EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates. Designed in the compact and unified form factor, EC25 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for flexible migration among them in design and manufacturing.
EC25 contains 10 variants: EC25-E, EC25-EU, EC25-EC, EC25-A, EC25-V, EC25-AF, EC25-AU, EC25-AUT, EC25-AUTL and EC25-J. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC25 supports Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.
Key Benefits
 LTE category 4 module optimized for M2M and IoT applications
 Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
 Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
 Feature refinements: supports DFOTA*, eCall* and DTMF
 MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
We can supply all series of EC25.Just feel to search in our store if you need other kind.

EC25-AF smt type*1pcs
