Raspberry Pi Pico SIM7080G NB-IoT/Cat-M(C)/GNSS positioning module Global

Origin:Mainland China
Model Number:Pico SIM7080G

Product Description
This product is a Raspberry Pi Pico expansion board with NB-IoT (Narrowband Internet of Things), Cat-M (also called eMTC, enhanced machine communication) and GNSS (Global Navigation Satellite System) functions. Netcom, serial AT command control, support HTTP/MQTT/LWM2M/COAP and other protocol communication. With the advantages of low latency, low power consumption, wide coverage and low cost, it is very suitable for IoT applications such as smart meters, asset tracking and remote monitoring.
Onboard Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
UART interface communication, serial AT command control
Support TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols
Support GNSS positioning (GPS, GLONASS, Beidou and Galileo)
The onboard 3.7V lithium interface and charging circuit can be connected to an external rechargeable lithium for external power supply, supporting charging and discharging
Onboard 2 LED indicator lights, easy to check the running status of the module
Onboard nano SIM card slot, domestic NB-IoT special card supporting China Telecom/Unicom/Mobile
Provide complete supporting information manuals (MicroPython sample programs and manuals, etc.)
Based on Raspberry Pi Pico interface design
Pico can be soldered directly, or plugged into the Pico motherboard after soldering the row

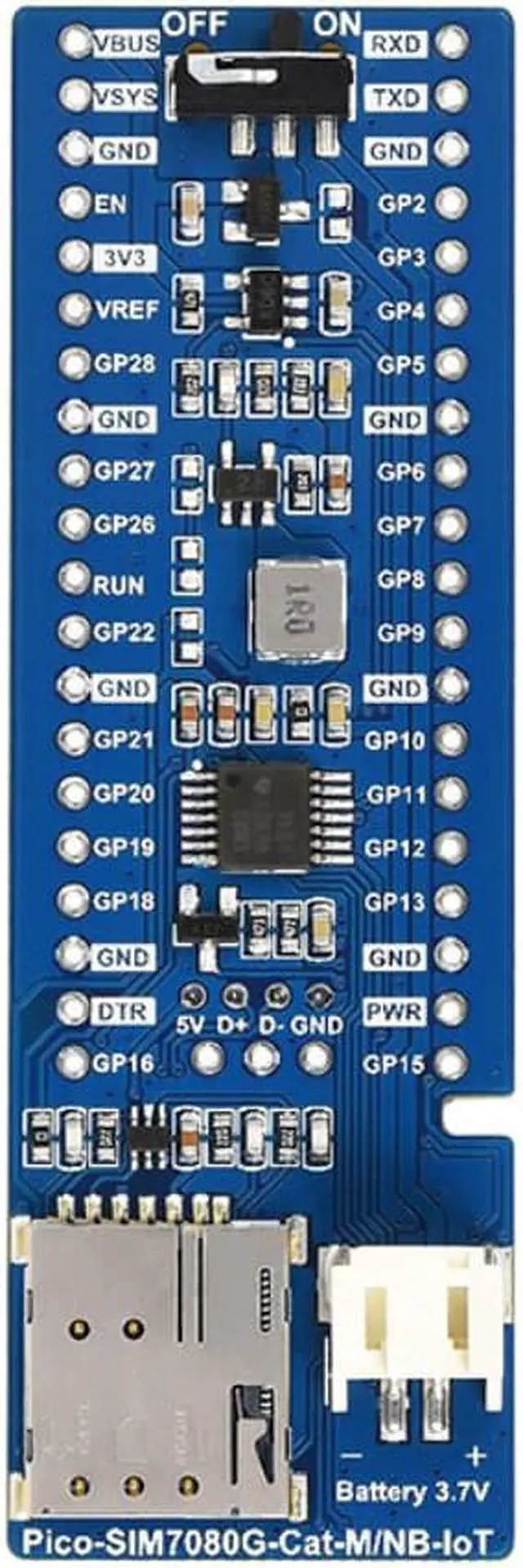

Pin Description
Product Size
Pico-SIM7080G-Cat-M-NB-IoT × 1
LTE antenna × 1
GPS antenna × 1
Mobile NB card × 1
20PIN straight seat × 2
40PIN straight pin × 1
3.7V rechargeable lithium × 1
