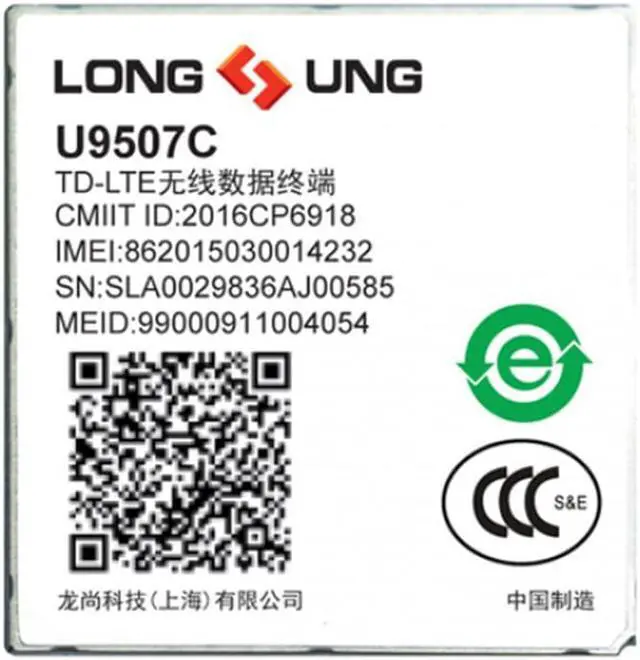

LongSung U9507C DGN LTE Cat4 module Support FOTA, DTMF and VoLTE Release 9 Category 4

Model Number:U9507C

LongSung U9507C is a wireless 4G LTE Cat4 module supporting LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/EVDO/EDGE/GPRS/GSM/CDMA/GPS/BDS network like the
LongSung U9300C
module. On LTE-TDD/LTE-FDD network, LongSung could achieve download data speed up to 150Mbps and upload data speed up to 50Mbps. LongSung U9507C provides SMS, MMS, Phonebook functions as well as high-speed access, and also audio function. It can be designed in many kinds of applications, such as Data card, Video monitor, Tablet, Electric-book, MID, the vehicle equipment, etc.
LongSung U9507C Module Specifications:
General Features
* EDGE multi-slot class 12
* GPRS multi-slot class 12
* Compliant to GSM phase 2/2+
* Output power:
- Class 3 (0.25W) for LTE/TD-SCDMA/UMTS
- Class 4 (2 W) for GSM 850/900
- Class 1 (1 W) for GSM 1800/1900
* Control via AT commands(3GPP TS27.005/3GPP TS27.007 )
* Supply voltage range: 3.3V- 4.2V
* Low Power consumption
- Sleep mode: 5mA
- Power down: 50 A
* Dimensions: 31.0×30.0×2.5mm
* Operation Temperature : -40°C to +85°C
Specifications for SMS:
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode
Additional features:
* VoLTE
* Phone book
* PCM
* DTMF
Band Configuration:
LongSung U9507C:
* LTE-FDD Band 1/3/5/8
* LTE-TDD Band 38/39/40/41
* TD-SCDMA Band 34/39
* UMTS Band 1/8
* EVDO Single bnad BC0
* CDMA1X Single Band BC0
* GSM Band 3/8
GPS/BDS(BeiDou):
* GPS frequency: 1575.42MHz
* At least support 44 channels
* Location accuracy: 10m
* Sensitivity
- Acquisition: -158dBm
- Tracking: -162dBm
* TTFF:
- Cold Start: 60s
- Warm Start: 45s
- Hot Start: 1s
Specifications for data:
* Support Release 9 Category 4
* LTE-FDD up to 150 Mbps DL,50 Mbps UL
* LTE-TDD up to 150 Mbps DL,50 Mbps UL
* TD-SCDMA up to 4.2Mbps DL, 2.2Mbps UL
* DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
* 1xEV-DOrA up to 3.1Mbps FL, 1.8Mbps RL
* EDGE up to 237Kbps DL,118Kbps UL
* GPRS class 10: 85.6kbps DL,85.6kbps UL
* CSD up to 14.4 kbps
* Non Transparent mode
* PBCCH support
* PPP-stack
* Coding schemes CS 1,2,3,4
* FOTA
* TCP/IP
* NDIS
Interfaces:
- Power supply
- USB 2.0 high speed
- UICC/SIM/UIM card interface 3 V / 1.8 V
- UART
- PCM
- Antenna interface
- HSIC
Approvals:
* RoHS
* CCC
* CTA
U9507
C 4G Module *1PCS
