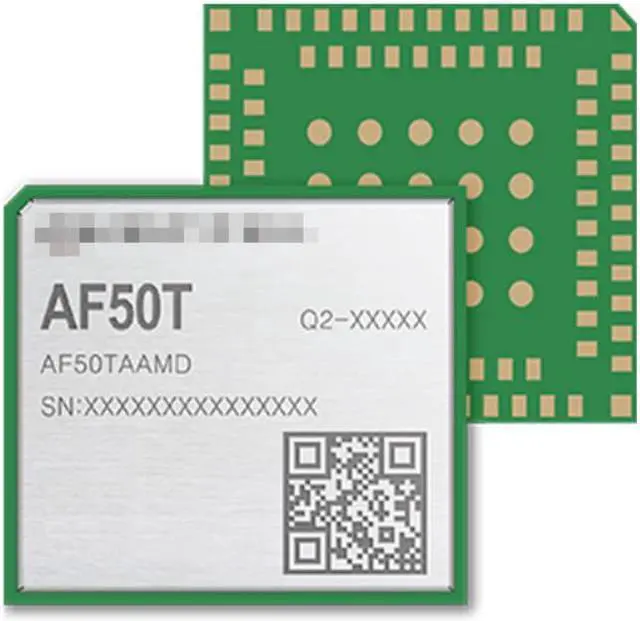

AF50T AF50TAAMD automotive grade Wi-Fi 6 and BT 5.1 module support 2.4GHz 5GHz PCIe 2.0 interface 2 × 2 MUMIMO AG520R AG550Q

Model Number:AF50T

Wi-Fi & BT AF50T
AF50T is an automotive grade Wi-Fi 6 and BT 5.1 module with high performance. It is designed to be used together with Quectel automotive modules AG520R and AG550Q to establish WLAN and Bluetooth connections. Supporting 2 × 2 MUMIMO, it provides a maximum data rate up to 1774.5 Mbps.
With a compact and unified form factor of 19.5mm × 21.5mm × 2.3mm, AF50T is an ideal Wi-Fi/BT solution for size-sensitive applications, and helps customers reduce product size and optimize application design cost. The surface-mount technology enhances its durability and robustness, and the LGA package makes sure the module can be easily embedded into sizeconstrained applications and provide reliable connectivity with these applications. The advanced package allows for largescale automated manufacturing which has strict requirements on cost and efficiency.
Designed with a reliable PCIe 2.0 interface to provide WLAN capability, AF50T achieves low-power and high-speed data transmission. This, coupled with its compact size and extended temperature range, enables the module to meet Wi-Fi/BT+LTE application design requirements in automotive industry.
Key Benefits
 Automotive grade Wi-Fi & BT module supporting 2.4 GHz and 5 GHz dual-band and BT 5.1*
 Ideal for automotive premarket applications with IATF 16949:2016 requirement
 Compliant with automotive quality processes such as APQP, PPAP, etc.
 Wide operation temperature range (-40°C to +85°C) meets the demanding requirements for automotive devices
 Support PCIe 2.0 interface which provides higher data transmission rate and lower power consumption
 Fast time-to-market: simple design minimizes design-in time and development efforts
AF50T *1pcs
