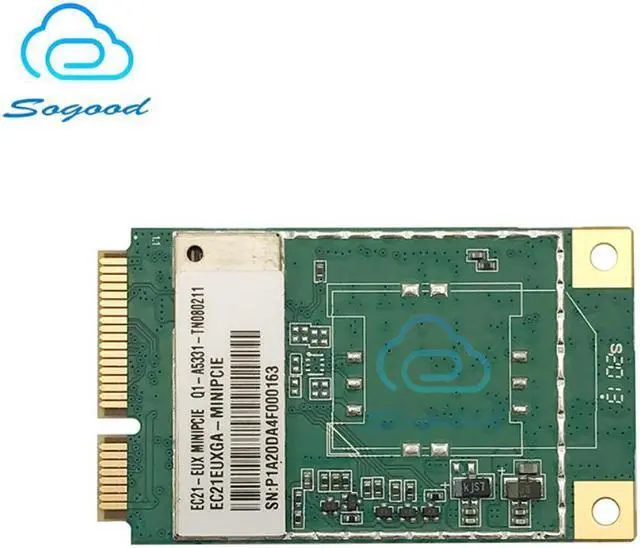

LTE category 1 EC21-EUX MINI PCIE module LTE-FDD B1/B3/B7/B8/B20/B28A WCDMA B1/B8 GSM/EDGE B3/B8 EMEA/Thailand

Model Number:EC21-EU
Package:SMT Type
Promise 100% &:No fake
SIM868:GSM/GPRS+GNSS Module

Quectel EC21 Mini PCIe is a series of LTE category 1 module adopting standard PCI Express
®
Mini Card form factor (Mini PCIe).
Specially optimized for M2M and IoT applications, it features cost-effective, low-power LTE connectivity, and delivers
M2M-optimized speeds of 10Mbps downlink and 5Mbps uplink. These make it ideal for numerous IoT applications that are not reliant on high speed connectivity but still require the longevity and reliability of LTE networks.
EC21 Mini PCIe contains 10 variants: EC21-E Mini PCIe, EC21-EU Mini PCIe, EC21-EUX Mini PCIe, EC21-A Mini PCIe, EC21-V Mini PCIe, EC21-AUT Mini PCIe, EC21-AU Mini PCIe, EC21-AUX Mini PCIe, EC21-KL Mini PCIe and EC21-J Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G network.
EC21 Mini PCIe supports Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as smart metering, tracking and tracing, fleet management, wearable devices, smart home gateways, digital signs, and even drones.
Key Benefits
Cost-effective, lower-power LTE connectivity optimized for broadband IoT applications
 Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
 Standard PCI Express® MiniCard form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
 MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
 Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

EC21-EUX MINI PCIE Module*1PCS
