10PCS HUAWEI DC-DC power supply module NAE12S20-C PSiP package server telecom data communication applications
- 10PCS HUAWEI DC-DC power supply module NAE12S20-C PSiP package server telecom data communication applications
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:DE(Origin)
Model Number:NAE12S20-C
Product Description

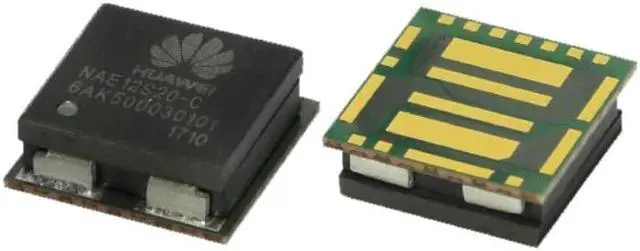

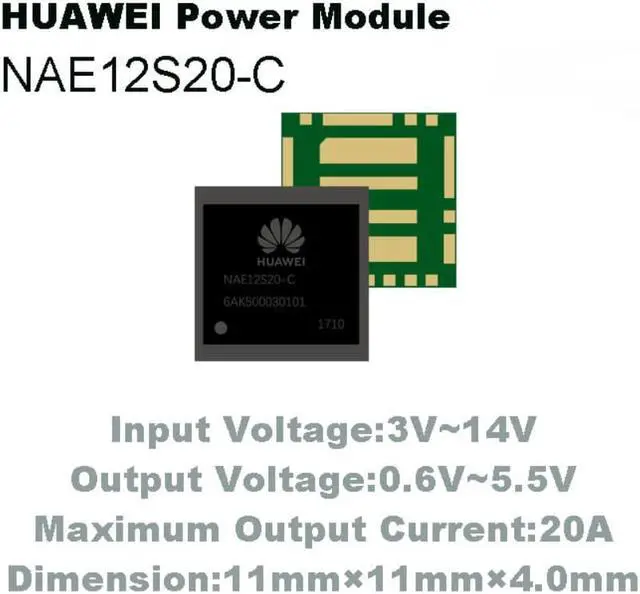

NAE12S20-C is a package level (PSiP) DC-DC power module, the input voltage range is 3V~14V, the maximum output current is 20A, and the output voltage can be adjusted within the range of 0.6V~5.5V Festival.
Key Features
Efficiency: 92% (Vin=5.4V, Vout=1.8V, Iout=10A)
Dimensions (L×W×H): 11.00mm×11.00mm×4.00mm0.43in.×0.43in.×0.16in.
Weight: 1.6g
Input undervoltage protection, output overcurrent protection (hiccup mode), output short circuit protection (hiccup mode), over temperature protection (self-recovery)
Comply with RoHS 2.0 standard
Enable switch (EN)
Output voltage regulation (FB)
Application
Server
Telecom and data communication applications
NAE12S20-C*10PCS
Model Number:NAE12S20-C
Product Description
NAE12S20-C is a package level (PSiP) DC-DC power module, the input voltage range is 3V~14V, the maximum output current is 20A, and the output voltage can be adjusted within the range of 0.6V~5.5V Festival.
Key Features
Efficiency: 92% (Vin=5.4V, Vout=1.8V, Iout=10A)
Dimensions (L×W×H): 11.00mm×11.00mm×4.00mm0.43in.×0.43in.×0.16in.
Weight: 1.6g
Input undervoltage protection, output overcurrent protection (hiccup mode), output short circuit protection (hiccup mode), over temperature protection (self-recovery)
Comply with RoHS 2.0 standard
Enable switch (EN)
Output voltage regulation (FB)
Application
Server
Telecom and data communication applications
NAE12S20-C*10PCS
