2PCS EC25-E EC25 mini pci-e package B1/B3/B5/B7/B8/B20/B38/B40/B41

Origin:Mainland China
Model Number:EC25-E
Package:mini pcie
Speed:150M
Type:4G LTE
Band:B1/3/5/7/8/20/38/40/41

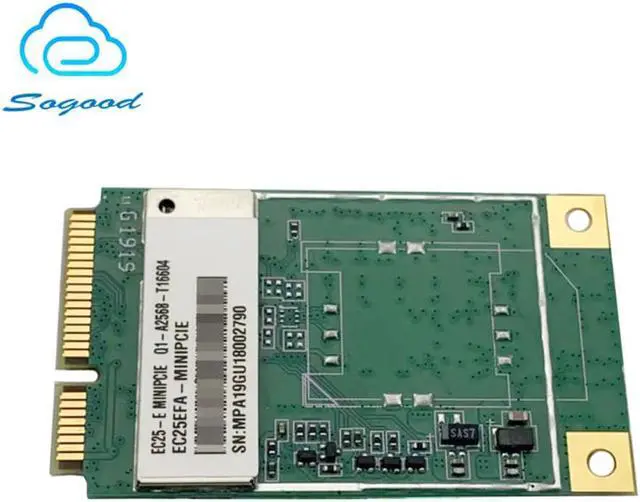

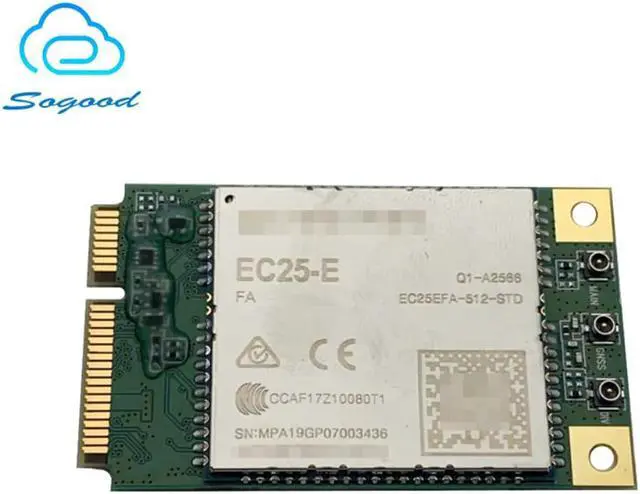

EC25 Mini PCIe
EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express
®
MiniCard form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC25 Mini PCIe contains 5 variants: EC25-J Mini PCIe, EC25-E Mini PCIe, EC25-AU Mini PCIe, EC25-V Mini PCIe and EC25-A Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC25 Mini PCIe supports Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP,
Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital  signage.
Key Benefits
 LTE category 4 module optimized for broadband IoT applications
 Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
 Standard PCI Express
®
MiniCard form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
 MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
 Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
We can supply all series of EC25.Just feel to search in our store if you need other kind.

EC25-E mini pcie*1pcs
