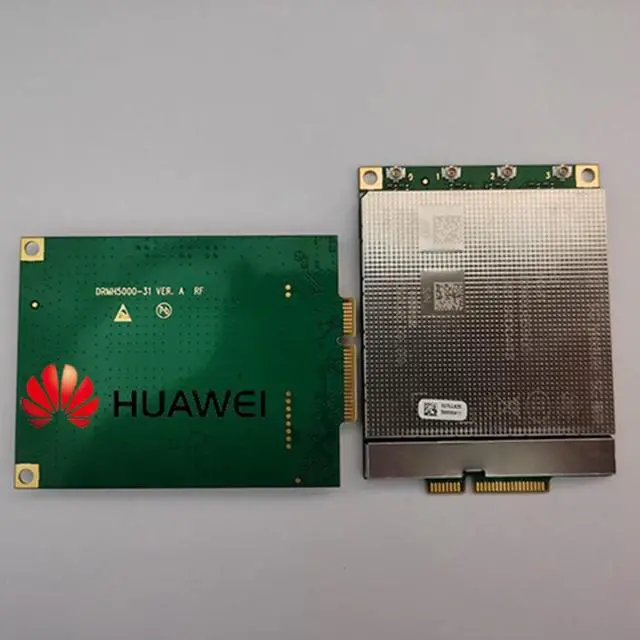

HUAWEI Industrial Module MH5000-31 5G mini pcie module 5G NR 4x4 MIMO Band N1 N78 N79 N41 LTE B1 B3 B5 B8 B34 B38 B40 B41

Origin:Mainland China
Model Number:MH5000-31p

HM500-31 5G MINI PCIE Module
Physical properties
Dimensions (L × W × H): 70 mm × 52 mm × 4.55 mm
Working frequency
5G NR: n1, n78, n79, n41(2515MHz-2675MHz)
5G NR: 4x4 MIMO Band: n1, n78, n79, n41
LTE: B1, B3, B5, B8, B34, B38, B39, B40, B41 (2515MHz-2675MHz)
LTE:UL 2CA: 40C, 41C
LTE:DL 4x4 MiMo Band: B1, B39, B41
UMTS: B1, B8
GSM: 900/1800 MHz
LTE:CA Combination (DL 2CC): 1C, 1A-3A, 1A-8A, 3C, 3A-8A, 38C, 39C, 39A-41A, 40C, 41C
LTE:CA Combination (DL 3CC): 1A-3A-8A, 3C-8A, 39C-41A, 39A-41C, 40D, 41D
LTE:CA Combination (DL 4CC): 39A-41D, 39C-41C
EN-DC: DC_39A-n41A, DC_1A-n78A, DC_3A-n78A, DC_3A-n79A, DC_3C-n78A, DC_5A-n78A, DC_8A-n78A, DC_3A-n41A, DC_39A-n79A
Operating temperature
Normal working temperature: 30°C+70°C
Extended working temperature: 40°C+85°C
Humidity: RH5%RH95%
Voltage:3.8 V4.2 V (typical value 4 V)
52pin MiniPCIe interface
Standard USIM (Universal Subscriber Identity Module) cards (Class B and Class C)
Audio interface: PCM voice interface
USB 2.0 (High Speed) interface
USB 3.0 (High Speed) interface
(Note that USB2.0 and USB3.0 cannot work simultaneously)
UART: 4-wire UART x 1
WAKEUP_OUT interface
WAKEUP_IN interface
RESIN_N interface
PCIE3.0 interface
Antenna interface: 4 * Cell Ant (0,1,2,3)
Data business: support
Operating system: Linux/Ubuntu/Android/Windows
Power consumption
:
SA NR: Power Class 2
NSA NR: Power Class 3
LTE: Power Class 3
UMTS: Power Class 3
GSM/GPRS 900: Power Class 4
GSM/GPRS1800: Power Class 1
EDGE: Power Class E2
MH5000-31P MINI PCIE Module*1pcs
