4A Mini DC-DC Buck Converter 6V-16V 9V 12V to 5V 3.3V Step-down Power Voltage Regulator Module Efficiency 98%

Origin:Mainland China
Condition:
Type:electronic module
Model Number:4A DC-DC module
Application:experimental modules
Operating Temperature:-40°-+85°
Supply Voltage:6V-16V 9V 12V to 5V 3.3V
Dissipation Power:4A
Package:Module
is_customized:Yes

DC 6V-40V To 5V 3A Double USB Charge DC-DC Step Down Converter Module For Vehicle Car Charger LM2596 Dual Two USB
USD 1.98
/ piece /lot 1
USB QC3.0 QC2.0 DC-DC Buck Converter Charging Step Down Module 6-32V 9V 12V 24V to Fast Quick Charger Circuit Board 3V 5V 12V
USD 1.42
/ piece /lot 1
XL7015 5V-80V DC-DC 0.8A Dc converter Step-down module Wide voltage input XL7005A LM2596
USD 0.99
/ piece /lot 1
24V/12V To 5V/5A 25W DC-DC Buck Step Down Power Supply Module Synchronous Rectification Power Converter
USD 1.63
/ piece /lot 1
WAVGAT DC-DC Boost Converter Non-isolated Step-Up Power Supply Module With Heat Sink Adjustable 4.5V-32V to 5-42V 6A
USD 3.35
/ piece /lot 1
WAVGAT DC-DC 12A step-down module Constant pressure constant current module Solar lithium charging LED drive
USD 4.2
/ piece /lot 1
RC Airplane Module Mini 360 DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm LM2596 2A
USD 0.55
/ piece /lot 1
WAVGAT Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable 97.5% 1.8V 2.5V 3.3V 5V 9V 12V
USD 0.55
/ piece /lot 1
Features:
Input voltage: 4.5V-16V
Output voltage: 3.3V / 5.2V
Buck efficiency: up to 98%
Output current: 0~4A
Voltage accuracy:
Load regulation:
Output ripple noise:
Static power consumption:
Working environment: -40 ° ~ 85 °
Size: 13 * 18.6 * 5mm
Features: ultra-high conversion efficiency, luxury materials, 2 ounces of copper + immersion gold process.

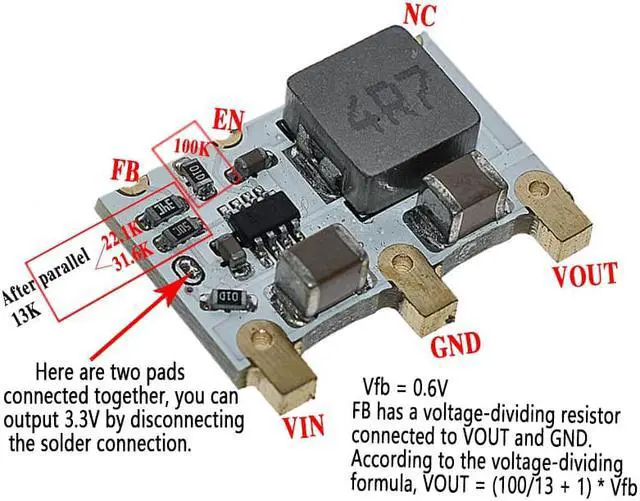

Preset two kinds of voltage, the default output 5.2V (to the mobile phone and other electronic products can make up the line loss when charging to achieve greater charge current), the use of electric iron disconnect the connection can be adjusted to 3.3V output voltage. Leads to the EN control pin, the default high-level output, no output when the low level. Leads to FB feet, with professional knowledge of the user can be an external resistor to change the output voltage.
