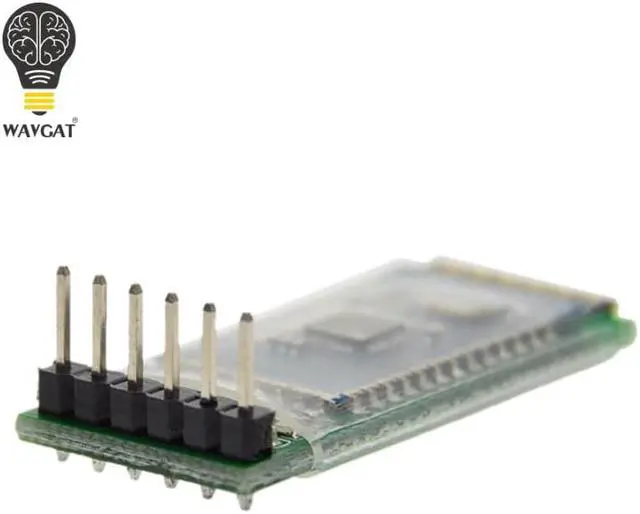

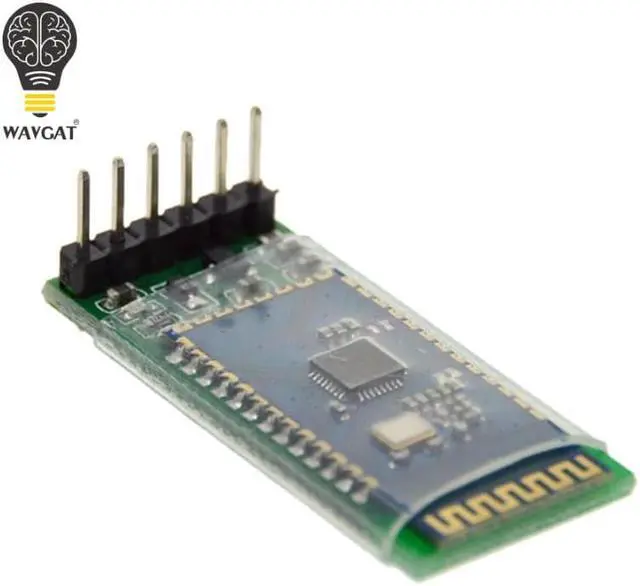

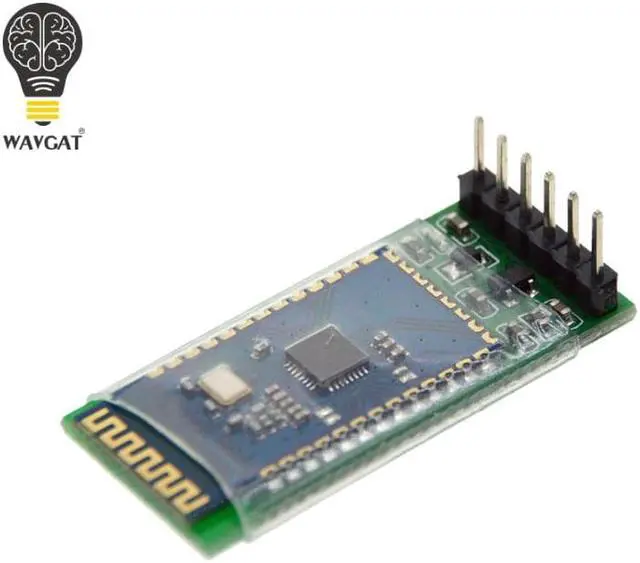

SPP-C Bluetooth serial pass-through module wireless serial communication from machine Wireless SPPC Replace HC-05 HC-06

Origin:Mainland China
Condition:
Type:electronic module
Model Number:Bluetooth serial pass-through module
Application:SPP-C Bluetooth serial pass-through module
Operating Temperature:-40°-+85°
Supply Voltage:.
Dissipation Power:.
is_customized:Yes

hc-06 HC 06 RF Wireless Bluetooth Transceiver Slave Module RS232 / TTL to UART converter and adapte
USD 2.65
/piece
/lot wholesale HC-05 HC 05 RF Wireless Bluetooth Transceiver Module RS232 / TTL to UART converter and adapter
USD 2.85
/piece
HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HC SR04 HCSR04 Distance Sensor
USD 0.9
/piece
hc-06 HC 06 RF Wireless Bluetooth Transceiver Slave Module RS232 / TTL to UART converter and adapter
USD 2.72
/piece
1PCS Interface Base Board Serial Transceiver Bluetooth Module For HC-06 HC-07 HC-05 MEGA 2560 UNO R3
USD 0.25
/piece
100PCS HC-06 HC 06 RF Wireless Bluetooth Transceiver Slave Module RS232 / TTL to UART converter and adapter
USD 270
/piece
SPP-C Bluetooth serial pass-through module wireless serial communication from machine Wireless SPPC Replace HC-05 HC-06
Description:
SPP-C Bluetooth module is designed for intelligent wireless data transmission to build, follow the V2.1 + EDR Bluetooth specification. This module supports UART interface and supports SPP Bluetooth serial port protocol. It has the advantages of low cost, small size, low power consumption and high sensitivity of receiving and sending. It can realize its powerful function with only a few external components.
Features:
Bluetooth V2.1 + EDR
Bluetooth Class 2
Built-in PCB RF antenna
Supports UART interface
3.3V power supply
Applications:
The module is mainly used for short-distance wireless data transmission field. You can easily and PC-connected Bluetooth device, you can also exchange data between the two modules. To avoid cumbersome cable connection, can directly replace the serial line.
Bluetooth wireless data transmission;
industrial remote control, telemetry;
POS system, wireless keyboard, mouse;
traffic, underground positioning, alarm;
automated data acquisition system;
wireless data transmission; banking system;
wireless data acquisition;
building automation, security, room equipment, wireless monitoring, access control systems;
intelligent home, industrial control;
automotive testing equipment;
TV station's interactive program voting equipment;
Government lights energy-saving equipment
wireless LED display system
Bluetooth joystick, Bluetooth game controller
Bluetooth printer
Bluetooth remote control toys
Car Diagnostic Instrument
Physical characteristics:
Electrical Characteristics:
Power consumption:
Application Circuit:
Dimensions:
Other configurations:
Status indication LED: P12
Used to indicate the status of the Bluetooth module
Host interrupt indication: P05
Used to indicate the host is interrupted or not, the connection status is high, other state low.
LAYOUT Note:
1, SPP-C Bluetooth module serial port level to be 3.3V, if the 5V level system and the need to increase the level conversion chip.
2, the Bluetooth signal is greatly affected by the surrounding, such as trees, metal, wall and other obstacles will have a certain Bluetooth signal absorption or
Shielding, it is recommended not to be installed in the metal casing.
3, because the metal will weaken the antenna function, it is recommended to the module Lay board, the module antenna do not shop below and alignment, the most
Good to hollow out.
