For AcBel PCA015 700W DIY Desktop PC Power Supply 24Pin+(4+4Pin)+(6+8Pin)+SATA*8+IDE*2

Model Number: PCA015
Application:Server
Modular:Full Modular
Origin:Mainland China
80 PLUS Certification:80 PLUS
CPU Power Connector:8 pin x2
D-type Bus Number:4
Certification:CE
Graphics Card 12V Pin Number:2 x8 pin +2 x6 pin
Number of SATA Ports:9
Input Voltage:100-240V
Interface Type:20 + 4Pin
Package:No
PFC Type:Active

Product Specification
For AcBel PCA015 700W DIY Desktop PC Power Supply 24Pin+(4+4Pin)+(6+8Pin)+SATA*8+IDE*2

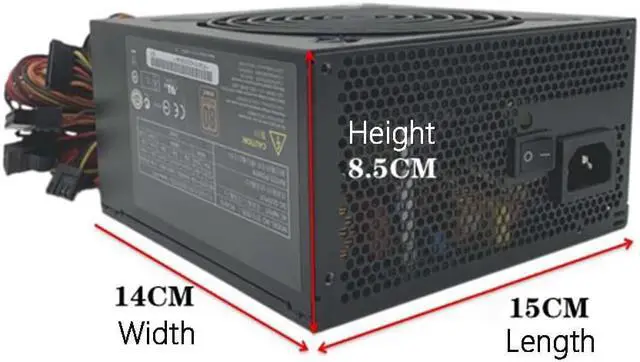

Product size: 150mmx140mmx86mm
Fan diameter: 12cm
Power standard: ATX 12V
Input AC voltage: 100V-240V (50Hz~60Hz)
Output rated power: 700W, maximum power: 800W
Applicable to: Desktop PC
Wire configuration:
Number of CPU interfaces: 2x (4PIN+4PIN)
Number of graphics card interfaces: 2 x (6PIN+2PIN)
Number of SATA interfaces: 9
Number of D-Type 4pin (Molex) ports: 4

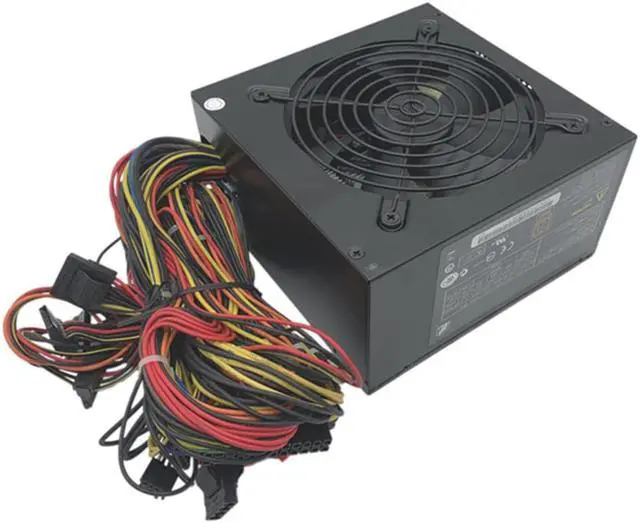

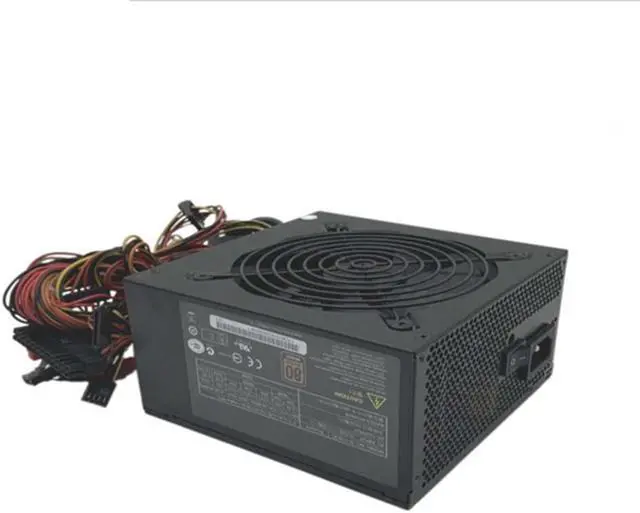

Product show
Our advantage
*The quality of our products is reliable, cost-effective, excellent quality.
*Every product we produce has passed a 100% full-load combustion test before leaving the factory
* We have plenty of stock, fast delivery, no matter how much of your order.
*Our product packaging is very good, customers don't have to worry about damage in transit..
