80 PLUS Certification:Other Certification
Certification:None
Origin:Mainland China
Rating Power:601W - 700W
D-type Bus Number:4
Model Number:700W110V
Package:Yes
Application:Desktop
Graphics Card 12V Pin Number:2 x6 pin
Input Voltage:90-264v
Interface Type:20 + 4Pin
PFC Type:Active
CPU Power Connector:8 pin x2
Modular:Non-Modular
Number of SATA Ports:5

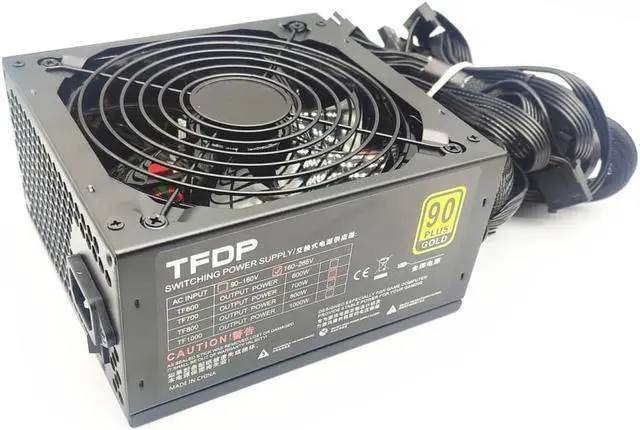

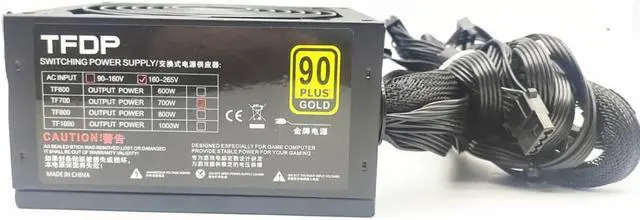

Quiet 700W 12V PC Power Supply 700W 24pin ATX Computer Power Supply PSU 700W PC Gaming Power PSU rgb Fan 110V 220V dual cpu
700-Watts Output Power
Low heat & Low noise operation
Silent low-RPM 140mm cooling fan
Active PFC for reduced harmonic distortion
Full range AC input with automatic AC input voltage selection - 90-- 264V AC
Typical 85.77%, average 84.16% efficiency
High efficiency power conversion allowing lower electrical bill
Dual +12V Output Rails
Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fan less quiet
blue color LEDs turns on when the PSU is on
ATI Radeon®CrossfireTM, CrossFireXTM,FireProTMReady
nVidia®SLITMReady
Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64, Athlon, Ryzen 3/5/7/9, Vega Multi-Core based systems
Safe to Operate - Designed and tested to meet major international safety agency standards
5x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
size :160*150*85mm
Connector :
20+4pin *1
4+4pin*2
6+2pin +6+2pin*1
sata+sata+ide*1
ide+ide+ide*1
sata+sata+sata*1
