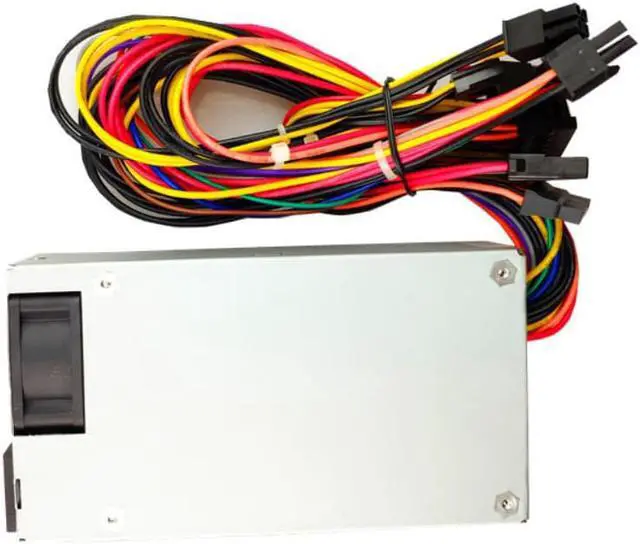

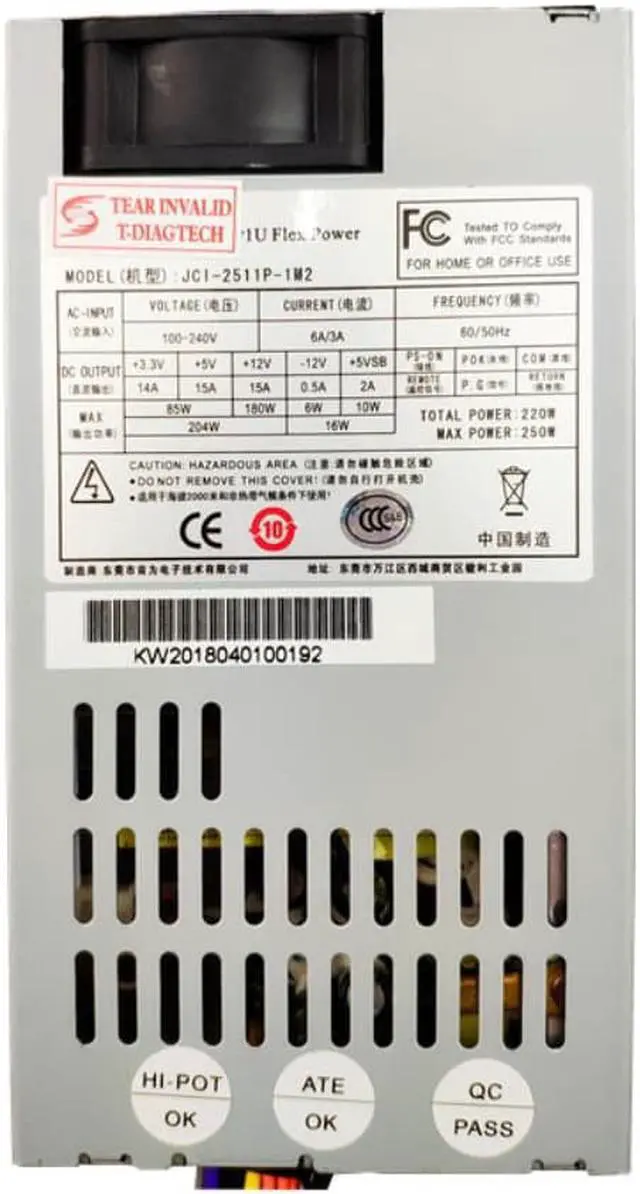

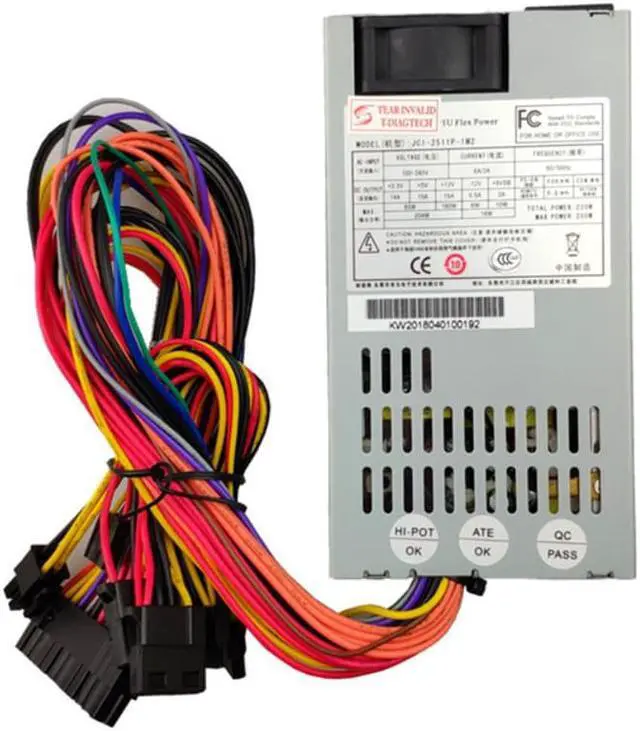

T.F.SKYWINDINTL 250W IPC 1U Flex Small Power Supply 250W IPC Power Supply 250W PSU For Server Ultra-quiet 1u ITX power supply

Input Voltage:90-264Vac
Application:Desktop,Server
D-type Bus Number:3
Number of SATA Ports:2
CPU Power Connector:4 pin
Output:7.5
Approvals:CE, FCC, CB, CC
Graphics Card 12V Pin Number:0
Model Number:JCI-2511P-1M2
Interface Type:20 + 4Pin
80 PLUS Certification:80 PLUS BRONZE
Package:Yes
PFC Type:Active
Modular:Non-Modular
Rating Power:150W - 250W
warrenty :2 years
condition :with retail box

T.F.SKYWINDINTL 250W IPC 1U Flex Small Power Supply 250W IPC Power Supply 250W PSU For Server Ultra-quiet 1u ITX power supply
Technical Parameters
JCI-2511P-1M2 :
Conformed to 80Plus Type
Conformed to IPC 1U Flex Type
Output Capacity: 250Watts Continuous
Wide voltage input 90-264VAC
Low Ripple & Noise
Operation Temperature:0~50
Dimension: 150* 82 *40.5mm
4020mm Low-Noise Fan
Active PFC
Life expectancy: MTBF >100,000 hours
Multiple Protections Function(OCPOVPUVPOPP)
Safety ApprovalsCE, FCC, CB, CCC

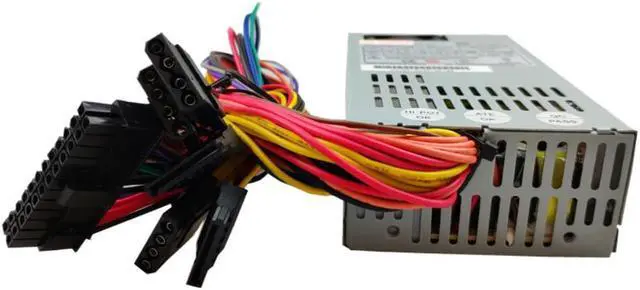

Output Connectors:
24p*1+4p*1+IDE*3+SATA*2+4 Pin Molex *1
Specification
Model No
JCI-2511P-1M2
Specification
250W
PFC
Active PFC
Efficiency
> 80 % Full load
P. G
100-500 ms
Hold-up Time
16ms Min
Weight
0.9 KG
Color
Silver
Fan
Single 4020mm DC Fan
Dimension
150mm (L) x 82mm(W) x 40.5mm(H)
Protection
OCPOVPUVPOPPShort Circuit Protection
INPUT
Input Voltage
90-264Vac
Input Frequency
47 ~ 63 Hz
MTBF
100,000 hrs minimum (at 25 )
Input Current
5A at 115V 3A at 230V
OUTPUT
Voltage
+5V
+12V
-12V
+3.3V
+5Vsb
MIN
0.2
0.5
0.0
0.1
0.0
NOM
7.5
8
0.25
7.5
1
MAX
15
16
0.5
15
2
Units
AMPS
AMPS
AMPS
AMPS
AMPS
1) Total DC output power shall not exceed 250 Watts.
2) +5V and +3.3V outputs shall not exceed 90 Watts
3) +5V, +3.3V and +12V outputs shall not exceed 234 Watts
Environment
Operation Temperature
0 to 50
Storage Temperature
-40 to 80
Operation Humidity
20% to 85%, non-condensing
Storage Humidity
10% to 95%, non-condensing
