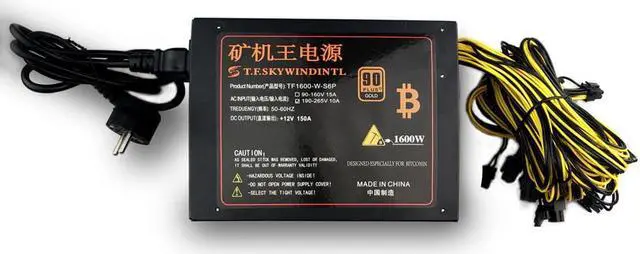

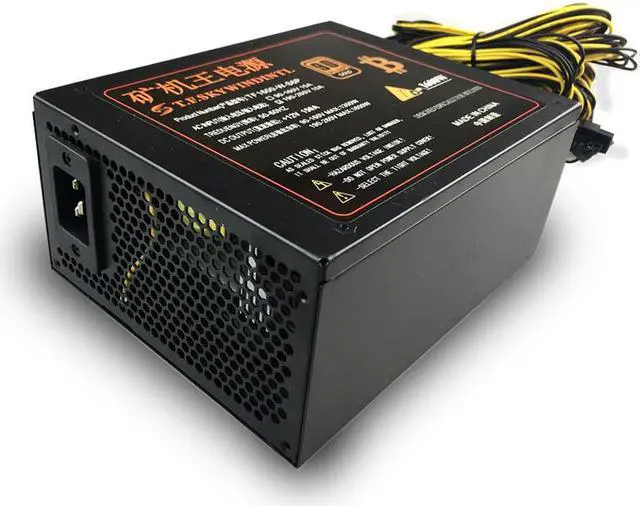

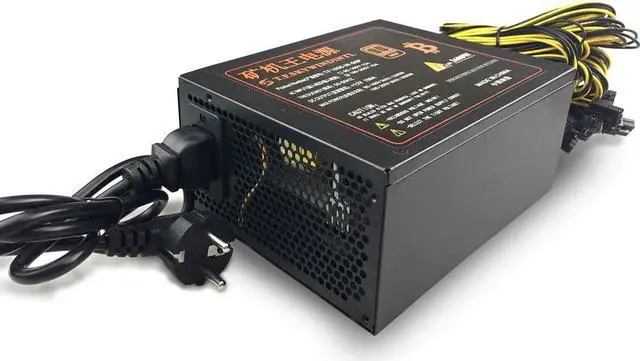

T.F.SKYWINDINT BITMAIN 1600W Power Supply asic bitcoin miner mining Rig PSU 1600W power supply antminer D3 S9 S7 L3+ AWP3++

80 PLUS Certification:Other Certification
Rating Power:> 1000w
Plug Type:EU plug
Graphics Card 12V Pin Number:6 pin
Output:check description
PFC Type:Active
Model Number:1600L
Input Voltage:180v-264v
Package:Yes
Approvals:check description
Modular:Non-Modular
Application:Server,Desktop

T.F.SKYWINDINT BITMAIN 1600W Power Supply asic bitcoin miner mining Rig PSU 1600W power supply antminer D3 S9 S7 L3+ AWP3++
voltage : 220v
connector : 7*6P+2*(6+2)p
Specifications:
Output
*DC Voltage:12.15V
*Rated Current(220V input): 133A
*Rated Power(220V input): 1600W
*Ripple & Noise:
*Voltage Regulation:
*Source Regulation:
*Load Regulation:
*Setup, Rise Time:
*Power off Protection Trip Time: >9mS

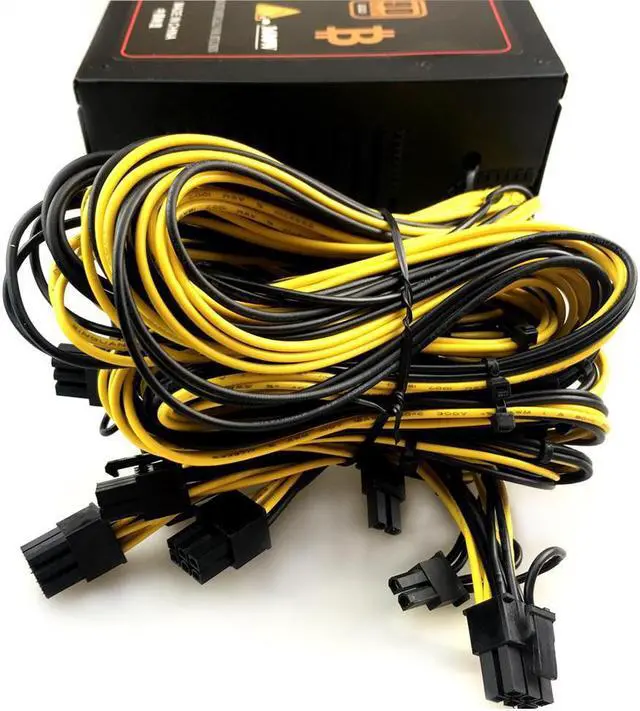

*Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
*Noise Level:
*Leakage Current:
Protection
1.Low-voltage Input:80-89V AC
2.Output Short Circuit:Yes
3.Output Overcurrent:134-185A max.
4.Overheat Protection:Yes
Environment Conditions
1. The Best Operating Temperature: 15°C - 50°C
2.Operating Humidity: 20% - 90% relative humidity (non-condensing)
Cooling
Fan:Forced-air cooling
Package includes:
1 x  power supply for Antminer D3 S9 S7 L3
1 x EU plug
