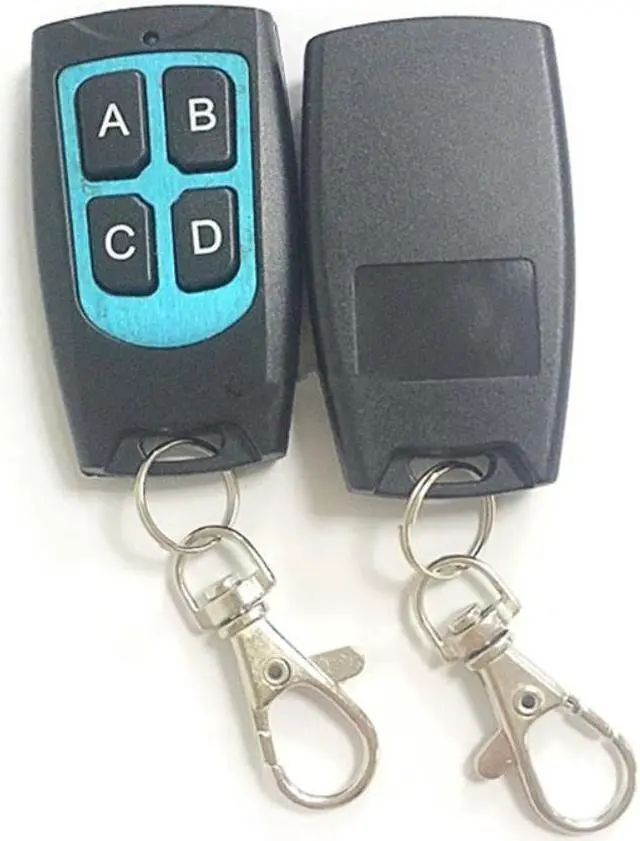

Red LED Universal ABCD 433.92 Mhz Duplicator Copy CAME Remote for Garage Door Gate Key Fob PT2262 TOP 432EV TOP-432NA TOP432NA

Model Number:ABCD 433mhz remote control
Certification:CE
Origin:Mainland China
NO:IOU00640

Features:
1.Privacy is strong
2.One to one key copy
3.Each key password alone save
4.Can continuous repetitive copy use
Specifications:
Working voltage: DC12V (27A a including)
Operating Current: 8mA
Working frequency: 433.92MHz
Modulation Mode: ASK (AM)
The transmission power: 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
Notice:
The essential condition for the selection of the remote control;the copyed remote control operates normal,chip is compatible and frequency is correct.
Before buying,please make sure the copyed remote control operating frequency or choose & buy the frequency adjustable type remote control.
Before buying,please confirm whether your remote control can be copyed or not.
Works with the following remote control IC modules (please check your remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3.PT2262.PT2260.EV1527.FP527.PT2242.HT600.HT680.HT6207.HT6010.HT6012.HT6014.AX5326-4.SMC918.PT2240.HT6013.HT6013.HT12D,etc
Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products
How to Program (it's easy!):
Step 1 -delete the existing code of our remote duplicator
1)Click and Hold A and B buttons together - Led will flash 3 times
2)Keep holding A button and release B button
3)Keep holding A button and push B button 3 times, Led will start flashing Non-stop
Now press any key on the remote control, LED lights are not bright, so delete code success; if you press the button LED lamp is lit, indicating that the code is not deleted !
Step 2 - clone your remote
1)Put both remotes Into back to Back position. Make sure they have direct contact
2)Click and hold 1 button on your remote and 1 button on your clone remote. Keep holding until led will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned. ( the left keys follow the same above operation)
Note
If for some reason the clone does not go further then 2 blinks , it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.
Our remote control can copy the fixed codes and learning codes
rather than stealth codes.It can't copy car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly,such as HCS200,HCS201,HCS300,HCS301,etc)
Package:
1 x User Manual
1 x Remote Control
Note:If u press the Second button,it maybe will not work,Please long press the B button to wake up the Second button
