2pcs Mini drive control board, suitable for at065tn14 at070tn90 at070nt92 at070tn94 at080tn64 at090tn10 50PIN 800*480 LCD
- 2pcs Mini drive control board, suitable for at065tn14 at070tn90 at070nt92 at070tn94 at080tn64 at090tn10 50PIN 800*480 LCD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Type:Tablet LCD
Origin:Mainland China
1. Product description:

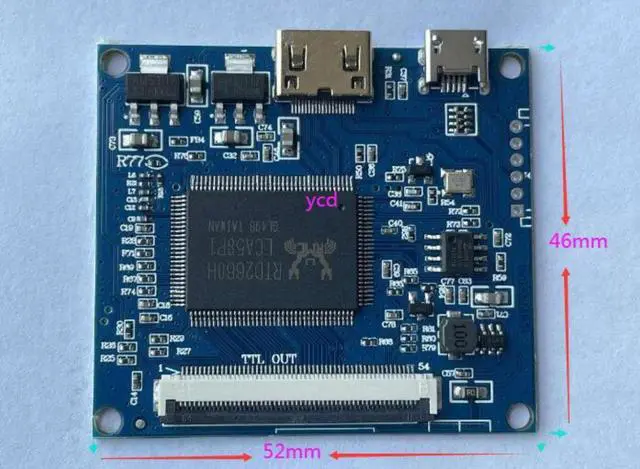

The appearance dimension of this product is 5.2CMx4.6CMx6mm
This drive board can
1. MIRCO USB power supply interface, 5V standard power supply, greater than 1.5A
2. No key and remote control, automatically switch to HDMI channel after inserting HD-I
3. One HD-I signal input, and the IC supports HDI1.2
4. HDI is a high-quality MINI gold plated seat
5. The screen interface is defined by high-quality gold-plated connector - 50PIN-AT070tn92
6. USB -- DM+DP signals can be extended externally
7. The driver board adopts a special circuit design, which can drive the LED backlight within 10V and support the current output of 180MA at most,
9. Support TTL signal output,
It can support general 50PIN6.5-7-8-9-10.1 inch LCD screens such as AT070TN90,TN92 TN94 TN14 TN10 TN64
10. This drive board adopts double-sided gold plated special FPC seat, FPC, which is directly used instead of being connected up and down at the regional meeting
Origin:Mainland China
1. Product description:
The appearance dimension of this product is 5.2CMx4.6CMx6mm
This drive board can
1. MIRCO USB power supply interface, 5V standard power supply, greater than 1.5A
2. No key and remote control, automatically switch to HDMI channel after inserting HD-I
3. One HD-I signal input, and the IC supports HDI1.2
4. HDI is a high-quality MINI gold plated seat
5. The screen interface is defined by high-quality gold-plated connector - 50PIN-AT070tn92
6. USB -- DM+DP signals can be extended externally
7. The driver board adopts a special circuit design, which can drive the LED backlight within 10V and support the current output of 180MA at most,
9. Support TTL signal output,
It can support general 50PIN6.5-7-8-9-10.1 inch LCD screens such as AT070TN90,TN92 TN94 TN14 TN10 TN64
10. This drive board adopts double-sided gold plated special FPC seat, FPC, which is directly used instead of being connected up and down at the regional meeting
