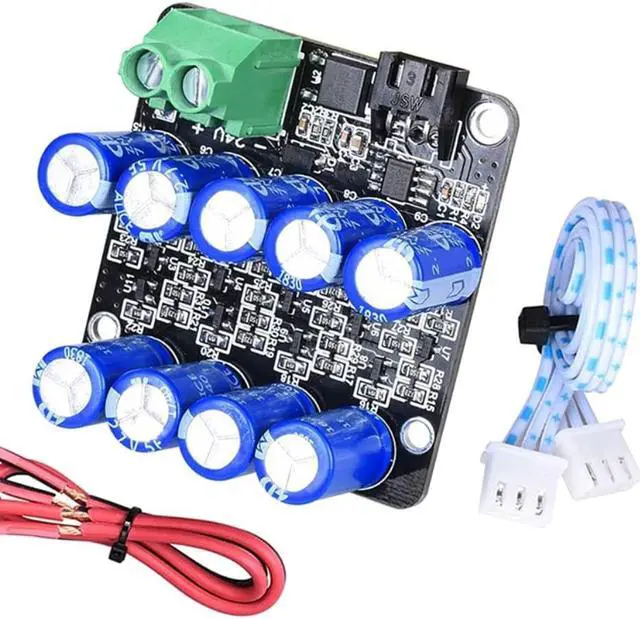

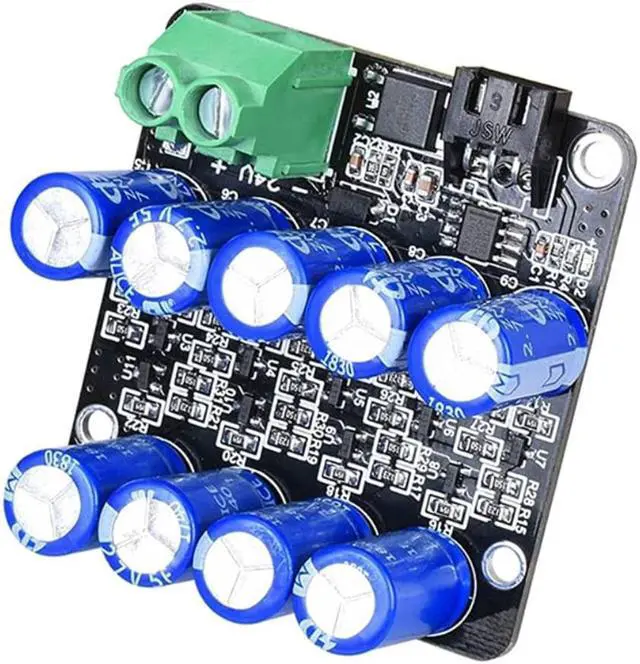

Genericed Direct BTT UPS 24V V1.0 Resume Printing While Power Off Module Sensor

Model Number:B2RD13AC802054
Origin:Mainland China
Type:Other

Features:
OOTDTY
and

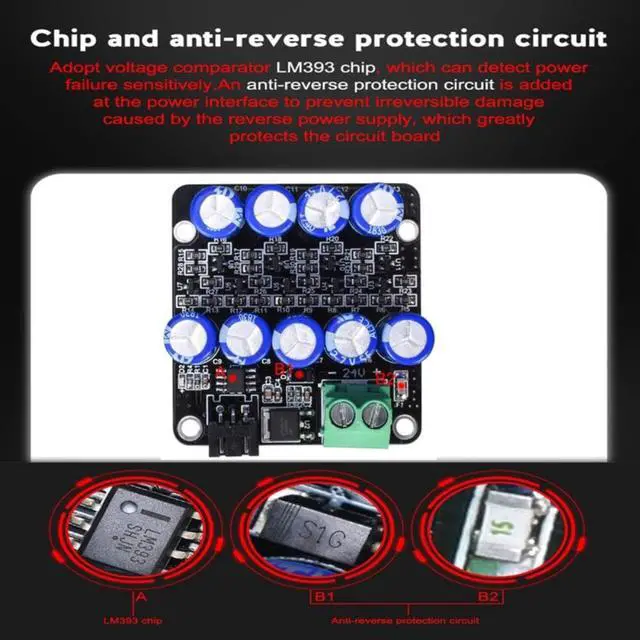

Adopt voltage comparator LM393 chip, which can detect power failure sensitively.
Equipped with 9 2.7V 5 F supercapacitors to store electricity, so that there is sufficient power supply after detecting the power failure, then the printer can successfully complete the corresponding operation.
An anti-reverse protection circuit is added at the power interface to prevent irreversible damage caused by the reverse power supply, which greatly protects the circuit board.
The module is small and easy to install.
Super Compatibility: Compatible with most 3D printer motherboards on the market (For example SKR PRO V1.1/SKR V1.3/SKR MINI E3 V1.2).
Specifications:
Main function: realize the power off resume print function
External dimension: approx. 52.53x50mm/2.7x1.97in
Power input: DC24V
voltage:3.3V or 5V
Support model:All DC 24V powered 3D printers are available(like Ender3)
Module Power-on:

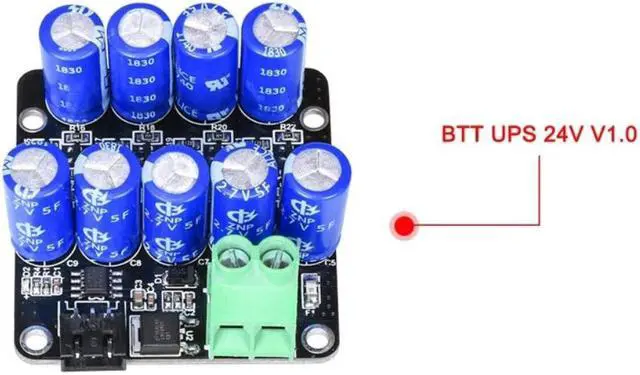

After BTT UPS 24V V1.0 power on, D2 red light in the lower-left corner will continue, indicating normal power supply.
Colour:Photo Color
Material:ABS
Package Includes:
1 x 3D Printer Parts
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
