WIFI Bluetooth SP107E Pixel IC SPI Music LED Controller by Phone APP For WS2812 SK6812 SK9822 RGBW APA102 LPD8806 Strip DC5-24V

Origin:Mainland China
Power Source:DC
Controled Method:Bluetooth Music
Model Number:SP107E
Features:High-quality
Remote Distance:20M
Item Type:RGB Controler
Material:ABS
Warranty:2 Year
Wattage:/
Applicable Lights:LED Pixel Strip Light
Certification:ce
Oscillation frequency:/
Connection Mode:Wire Screw
Max. Load Power:/
Voltage:5-24V

WIFI Bluetooth SP107E Pixel IC SPI Music LED Controller by Phone APP For WS2812 SK6812 SK9822 RGBW APA102 LPD8806 Strip DC5-24V
1. Features:
1) Long distance APP remote control via Bluetooth;
2) Support almost every kind of one-wire or two-wire LED driver IC ;
3) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
4) Creatively usingfrom-image-to-effect method for user toDIYany effect;
5) Support setting pixel number and segments number, able to control up to 960pixels;
6) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
7) User setting saving;
2. App control:
Both IOS version and Android OS version are available.
Requires IOS version 10.0 or later;
Requires Android OS version 4.4 or later;
SearchLed Chordin App Store or Google pay or scan this QR code to download and install the App:
3. Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage :
DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
4. Instructions:
APP Operations:
1. Make sure you have turned on Bluetooth on your phone;
2. Open the APP, drag to refresh the device list, select device name SP107E to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;
AUX IN: Plug the supplied audio split cable into the AUX IN jack, connect the audio output source(MP3, Phone or tablet)and the speaker(or headset), the controller will automatically switch into AUX input mode;
MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.

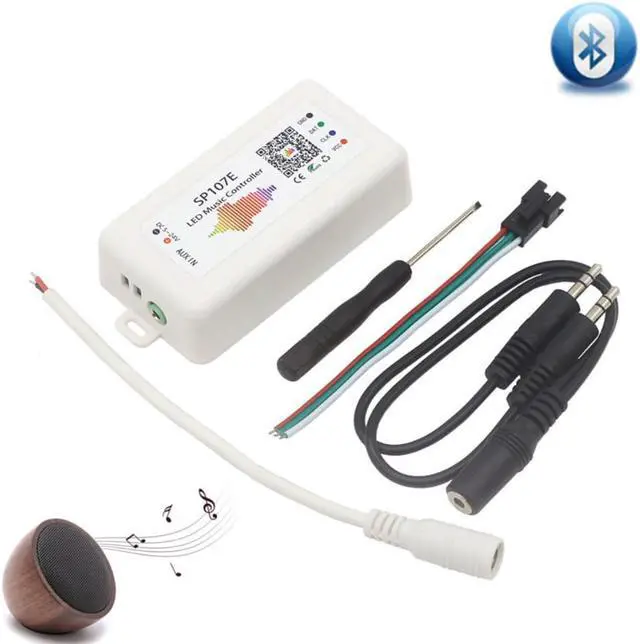

Package includes:
1x SP107E music LED controller
1x User manual
