DC MINI IR 24Keys LED Pixel Strip Light Controller For WS2811 WS2812B SK6812 1903 16703 With Remote Controller DC5-12V

Origin:Mainland China
Item Type:RGB Controler
Material:ABS
Warranty:1Year
Certification:ROHS,CCC,FCC,ce
Connection Mode:DC
Power Source:DC
Wattage:2W
Oscillation frequency:Wireless IR
Voltage:5-24V
Model Number:WS2812B WS2811 Pixel LED Controller DC 5V 12V 24Key
Remote Distance:20M MAX
Controled Method:IR Wireless
Features:Wireless Remote Control
Applicable Lights:WS2812B WS2811 LED Strip
Max. Load Power:2048Pixels

WS2812B WS2811 Pixel LED Controller DC 5V 12V 24Key IR RGB RGBW RGBWW White Warm White Running Light Strip Remote Controler
Pay Attention:
1.5V Power is only for the 5V WS2812B led strip , 12V Power is only for the 12V WS2811 led strip ,
2.If the led strip length is above 5m , you need conenct extra power to add voltage !
Specification:

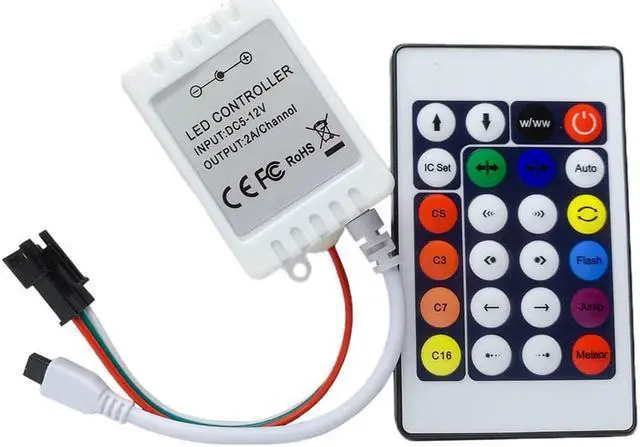

1.item name: 24keys ir remote controller
2.Supply Voltage:DC5-12V
3.Controller's dimension: 50mm x34mm x22mm

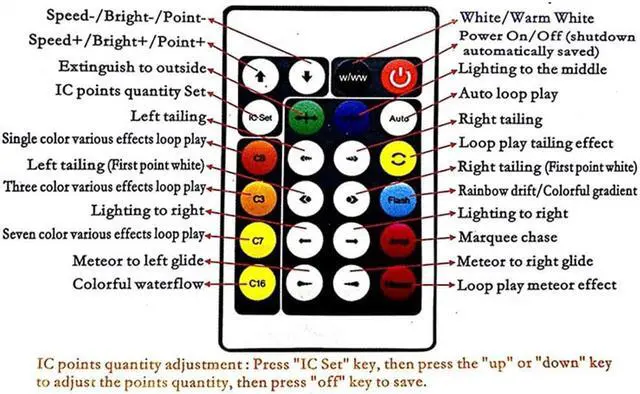

4.IR Remote controller
5.output DC 5V 6A
6.24KEYS
7.Package sizes: 85mm x 52mm x 6mm
8.for the remote: 3V cell
9.Working temperature: -20.C -60.C
10.Max 1028 pixels can be controlled
11. max meters: 15 meters led strip controlled
12. more than 80 Effects: fade change; watering; chase. . .
Product  description:
1.24 Keys IR Remote Controller for RGB LED SMD strip lights, it is able to control led strip light's color and flash modes, including modes of Flash, strobe, Fade, Smooth.
2. Adopt IR remote to control the LED strip lights.
3.It is able to control led strip light's color, brightness and flash modes.
4.Controller can control max 1024 pixels, each effect can have 64 levels speed for adjusting.
5.It is able to control led strip light's color, brightness and flash modes.
6. It is able to control led strip light's color, brightness and flash modes.
Features:
1.Infrared ray controller using advanced computer control chip
2. The infrared ray convenient, Simple to use
4. Output low ripple and noise
5. Two year warranty
6. Average working no trouble >50, 000 hours
7.Single wire output signal, supports normal Ink1003,ucs1903,tm1804,ws2811,ws2812b etc.
8.Built in up to 200 programs for user
9.Selectable led pixels to be controlled(1-512)
10.Support IR remote controller, controlling distance up to 15 meters
Package Included:
1Pcs DC5-12V 24keys IR Remote Controller (
is not included
)
