Stair LED Motion Sensor Controller DC12V 24V 32 Channels Indoor PIR Night Light Dimmer For Stairs Flexible Strip

Origin:Mainland China
Power Source:DC
Controled Method:PIR Motion Sensor
Model Number:TX-LTK01
Features:Lighting With Steps
Remote Distance:0-3m
Item Type:RGB Controler
Material:ABS
Warranty:1Year
Wattage:0.5W
Applicable Lights:Single Color LED Light
Certification:CCC,ce,FCC,ROHS
Oscillation frequency:50-60HZ
Connection Mode:Dupont Port
Max. Load Power:400W
Voltage:12-24V

Stair LED Motion Sensor Controller DC12V 24V 32 Channels Indoor PIR Night Light Dimmer For Stairs Flexible Strip

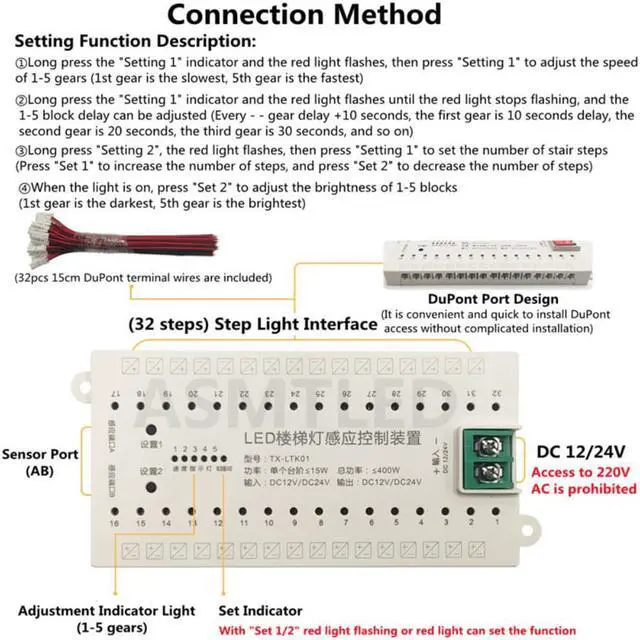

Product description:
Product name: 32-channel stair sensor controller
Voltage: DC12V/DC24V
Power: 400W MAX
Channel: 32 (set to 1-32 step)
Sensors: 2 Pir Sensor
NOTE:
1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
Important note: The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.
Product package:
Only 1PCS LED controller(
Not included the led strip and power supply
)
