DC5-24V 20A 6Pin Mini 40Keys IR Remote Controller Dimmer Switch For SMD 5050 RGB+CCT LED Strip Lights

Origin:Mainland China
Item Type:RGB Controler
Material:ABS
Warranty:1Year
Certification:ce,ROHS,UL,CCC,LVD,FCC
Connection Mode:Common anode
Power Source:DC
Wattage:<1W
Oscillation frequency:/
Voltage:5-24V
Model Number:RGBWW LED Controller
Remote Distance:30m MAX
Controled Method:40Keys IR Remote Control
Features:Wireless IR Remote Control
Applicable Lights:5-24V RGB+CCT LED Strip
Max. Load Power:12V:288W

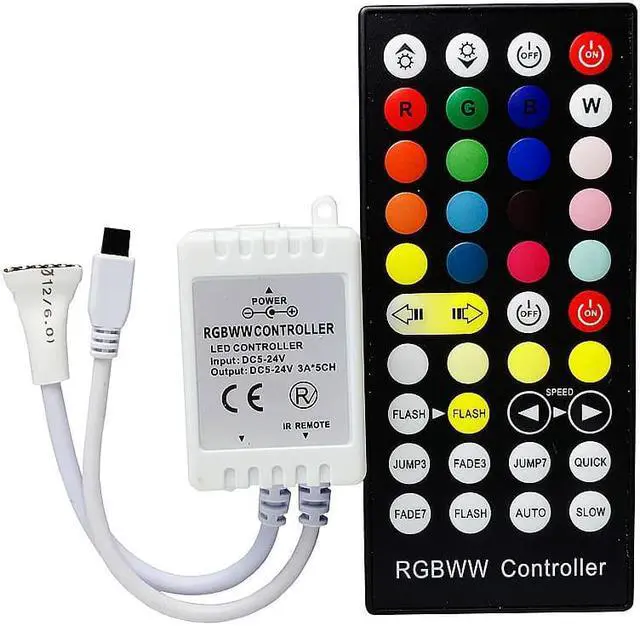

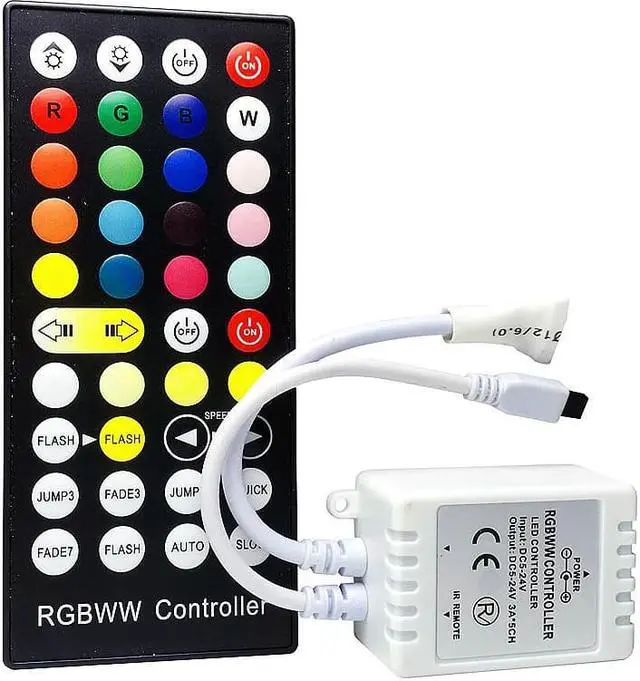

40Key IR RGBWW Controller DC 5V 12V 24V 5CH*4A Color Temperature Brightness Colors Adjustable RGB+CCT 6Pin LED Strip Dimmer
Features:
This RGBWW Controller is divided into RGB +W+WW three parts, it can be Turn on/OFF RGB Part and W/WW part independently, and can controlled their brightness and their color independently. such as,when turn on RGB part, it can change RGB part's color and brightness;and can turn on W/WW parts at the same time ,and can turn on/OFF W/WW part or adjust its brightness .when at 3/7 color Fade model,can adjust their changing speed;when at 3/7 Color Jump mode,can adjust their brightness and adjust changing speed.
40-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices, customize any color and various dynamic changes in lighting effects through infrared remote control.
Specifications:
Supply voltage: DC5V-24V
Output: 5 channels
Connecting mode: Common Anode
Static power consumption:
Output current: 4A(each channel)
Pacakge Includes:
1 x 40Key RGBWW Remote Controller(
Not Included CR2025
)
