Ladder Light Controller 36 Channel DC 12V 24V Dual Motion Sensor Stair Light Stairway Sense Step Control For Dream Color Strip

Origin:Mainland China
Power Source:DC
Controled Method:PIR Motion Sensor
Model Number:Stairs Light Strip Controller
Features:Lighting with the steps
Remote Distance:0-5m
Item Type:RGB Controler
Material:Aluminum

Wattage:<2W
Applicable Lights:Dream color and single color led strip
Certification:CCC,ce,LVD,ROHS
Oscillation frequency:50-60HZ
Connection Mode:Common Anode
Max. Load Power:864W
Voltage:12-24V

Ladder Light Controller 36 Channel DC 12V 24V Dual Motion Sensor Stair Light Stairway Sense Step Control For Dream Color Strip
Description:

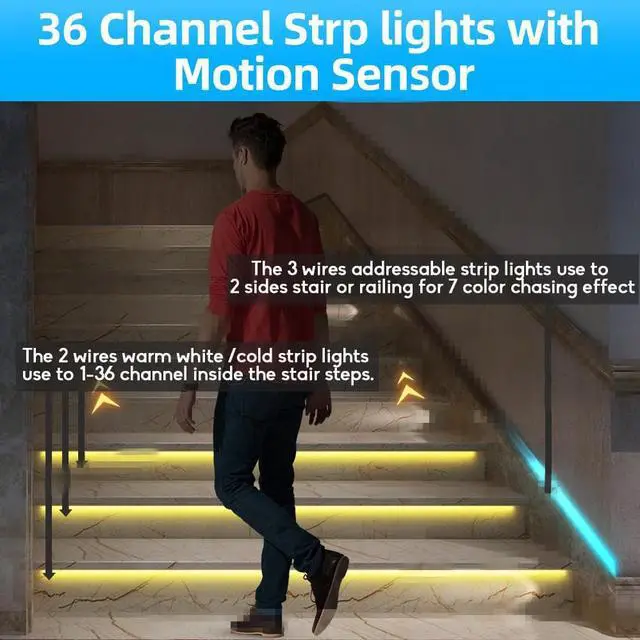

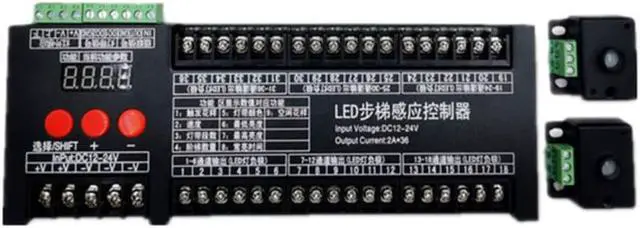

36-channel multi-function LED controller with two sensors, which can drive 2 kinds of LED lights, one is a dream color light that supports a universal SPI single-wire chip, such as the universal 1903, 1909, 1912, TM1812, WS2811, 16703, 8205, 8206 and so on full-color pixel LED lights,  the control system at the lower left corner of DO1, GND, DO2, GND with 2 parallel output terminals, can be connected to the left and right sides of the stairs lights. The output terminals on both sides of the controller are for the single color light strips used on the 36-way stair tread, the number of light strips can be adjusted. The function setting of the induction controller is selected by the buttons. The setting is displayed through the 4-digit digital tubes on the left.
Specification:
Working Volatge:DC12-24V
Output Current:2A*36CH
Step Numbers:36 Seps Max
Function:
1. 7 Trigger Modes: 0 - All off , 1 - All bright , 2 - follow , 3 - Step ladders and light strips turn on one by one , 4 - The step ladder and the light strip are on as a whole and off one by one , 5 - Step ladders and light strips as a whole gradually go out one by one , 6 - The step ladder and the light strip are gradually brightening and extinguishing.
2. Speed: 1-30 Adjustable level : 1 - Fastest ,  30 - Slowest.
3. Number of leds :Can be adjusted in 0-600.
4. Number of steps :1 controller is 36 steps ,and can be connect 2 controller as 72 steps.
5. Strip color :if use RGB color can be change 7 colors and if use single color,you can Adjust brightness.
6. Lowest brightness: the highest brightness when there is no trigger (can provide night light effect when there is no trigger) 0-10 level adjustable 0 off 10 brightest.
7. Maximum brightness: the highest brightness when triggered 30 brightness is the lowest 255 brightness is the highest.
8. Constant bright time, adjust the constant bright time after triggering,adjustable within the range of 0-120, 0.5 second interval (0 no delay,2*0.5 second is 1 second).
9. Idle pattern: idle pattern without trigger, the light strip has a trailing effect, and the step ladder gradually brightens from bottom to top 0 off 1 on.
Important Note:
The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.
Package included:
1 * 36 channel Stair Sensor LED Controller
(
Not included the power adapter , led strip and extension wire
)
