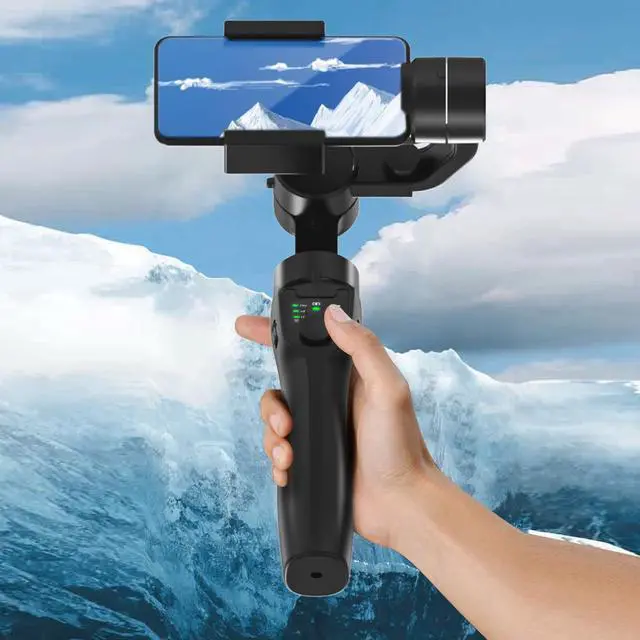

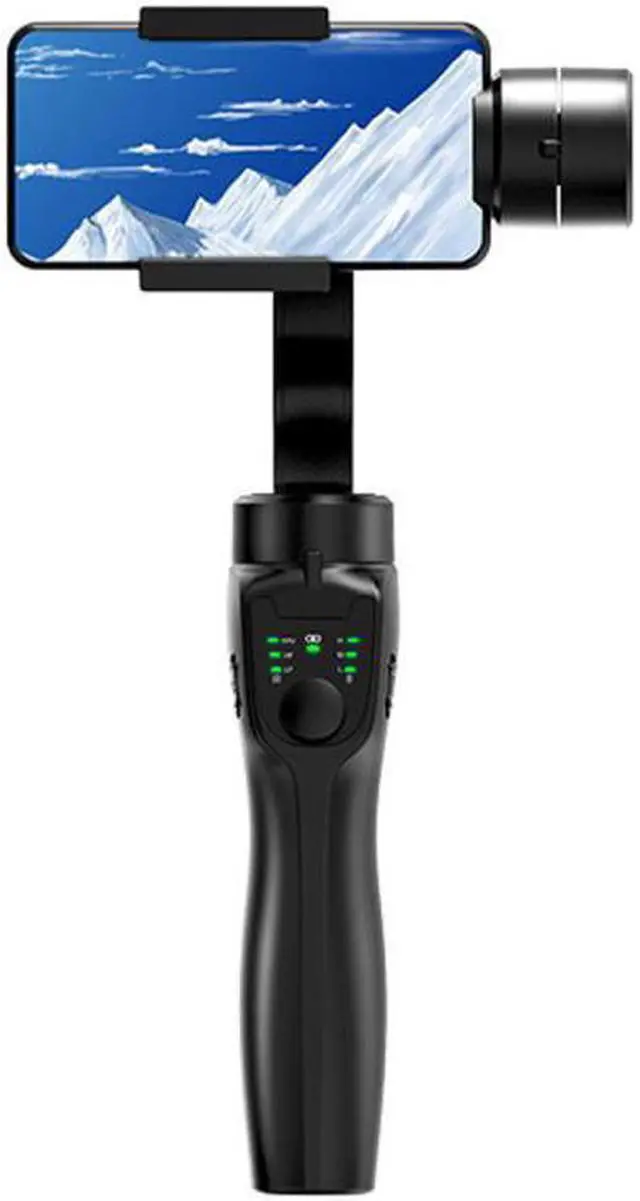

Professional Smartphone 3-Axis Handheld Gimbal Electric Anti-shake Stabilizer

Origin:CN(Origin)
Communication:1/4 Screw
Type:Single Handgrip
Certification:CE
Package:Yes
Model Number:C02228

This product is a three-axis hand-held head designed for mobile phones.
It can assist mobile phones to shoot, effectively eliminate the shaking caused by the outside world in the shooting process, and provide stable and smooth images.

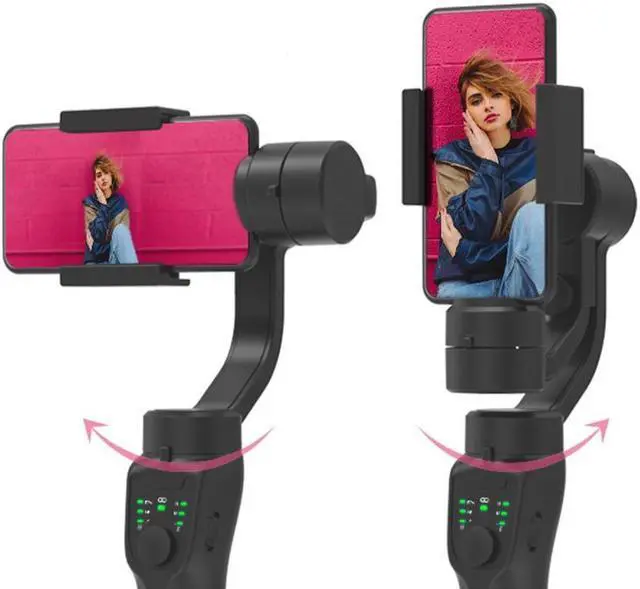

The stabilizer supports horizontal and vertical shooting of mobile phone.
The shooting Angle of mobile phone can be adjusted quickly and manually through the control button to meet the needs of daily shooting and film and television production.
Connect the charging cable to the holder and charger to charge. The charging time is about 3 hours and the longest working time is 6 hours.
Three indicators are on one by one when charging, and three indicators are on when fully charged.
Electric quantity status indicator (white)
Full power: Three lights are on at full capacity.
Steady power: Turn on two lights.
Low power: turn on a light, please charge in time.
Red light flashing: low power alarm, prompt charging immediately.
Status Indicator
Full charge indicator light
Bluetooth light: the red light flashes when the device is turned on, and the bluetooth blue light is always on when connected
Steady power indicator
Low battery, red light lightning low charge
The FPV mode is green
PF half follow the green light
L All locked green light
Operation Instructions
Correct installation of mobile phone schematic
Please install the mobile phone and adjust the balance when the power of the handheld head is off
Stretch the phone clip. Place the phone in the phone clip, and align the right side of the phone with the motor clip.
Balance the phone by pulling the arm
Correct installation of mobile phone schematic
Specification
Charging Voltage:5V
Charging Current:
Working Current:200-2000MA
Working Voltage:5V
Working Temperature:0-40°
Working Time:4-6hrs
Net Weight:380g
The Load Weight:75g----250g
Range Of Pitch Motor:-160°~ +160°
Range Of Roll Motor:-85~ +85°
Range Of Yaw Motor:-160°~ +160°
Size Of Interface:1/4Inch threaded joint
