Vszerda DB25 Breakout Board, DB25 Female D-SUB Connector to DB25 Screw Wiring Solderless Terminal Module Breakout PCB Board Kits with Plastic Case (F Black)
Limited time offer, ends 07/22 By YuXuan Technology
- One truth about working, you always need the cable or adapter when you don't have in your toolbox. That's why we choose these terminal-block audio connectors. No soldering required! Use stranded or solid core wire and a small screw driver to create custom wiring jigs.

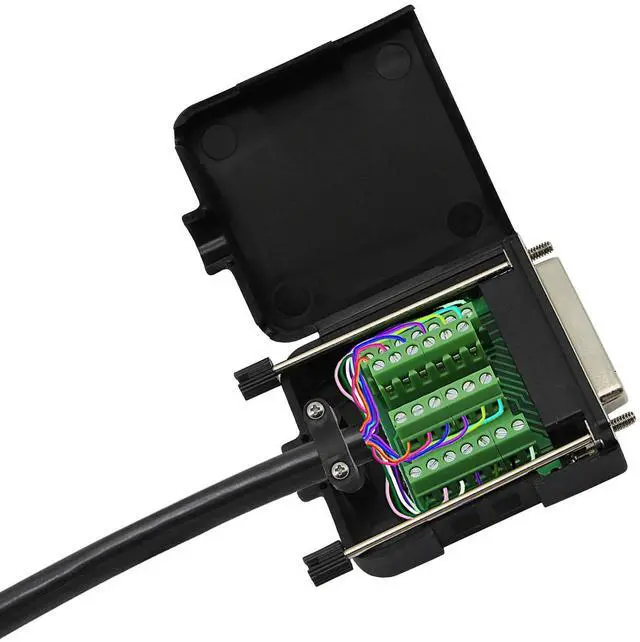

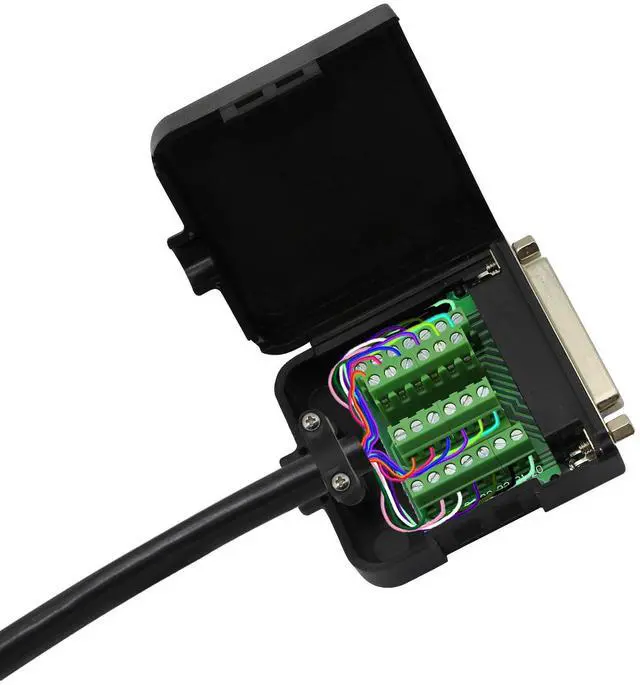

- Innovatively designed with a new outer casing that is widened and bolded for easy opening and closing. Strong and firm after fastening.Converts a DB25 male( with positioning screws) to a 25-position screw terminal block with cable strain relief and housing.

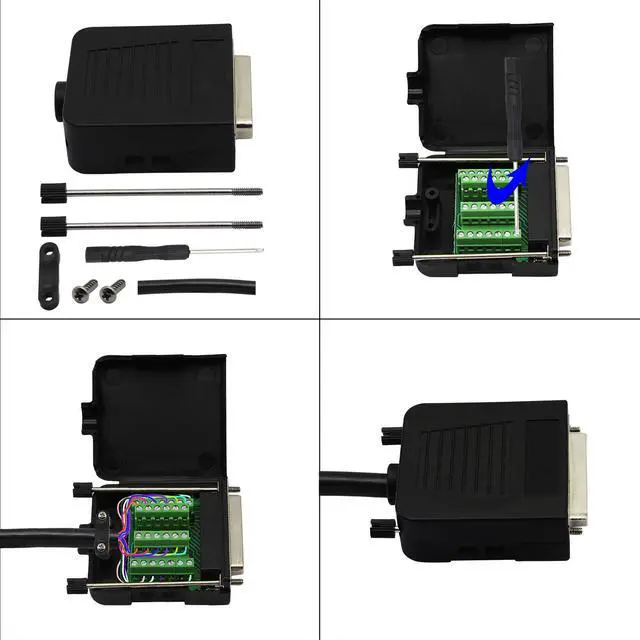

- All copper matrix, better contact and stronger oxidation resistance.USAGE:1. Prepare materials and tools. 2. Loosen the terminal block with a screwdriver.3. Strip the cable4.Wiring by PCB board number and tighten the screws.5.Install the cable tie, and cover the case.

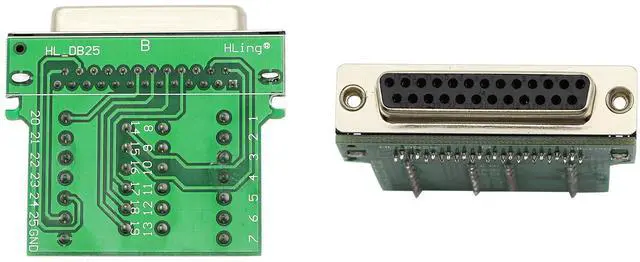

- All signal ports named and labeled clearly.High quality PCB carrier, FR-4 fiber glass PCB.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name : DB25 Female Adapter;
Material : Metal, Electric Part;
Color : Black, Green

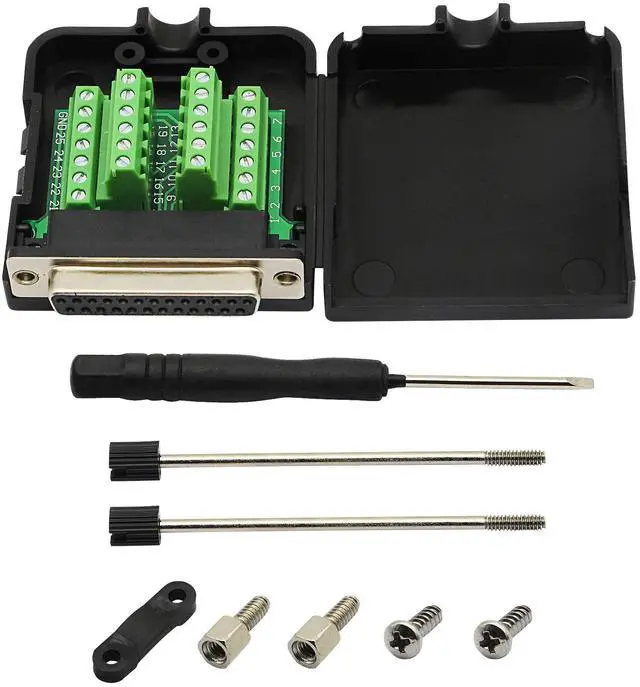

Package included: 1 x DB25 breakout board
Female adapter with case
1x Nylon cable pressing plate
2x Screws
2x Long bolts
2x Nuts
1x Screwdriver
1.High-quality gold-plated plug, reliable contact, super transmission performance, strong signal stability.
2.High-quality white plastic nylon cable,double hole thread design,wide and thick and durable.
3.The circuit board has connection number, easy to identify and easy to connect.

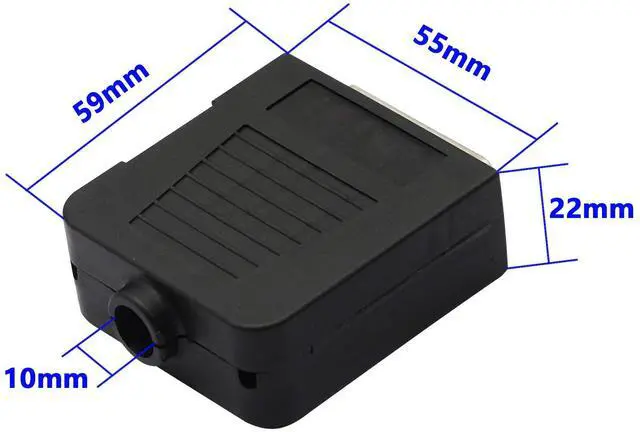

4.Enclosure size: 59 x 55 x 22mm
5..Diameter of stern tube hole :10 mm
6..The largest wire diameter:10.45mm
7..The Pcb board is a high-density copper-clad double-panel that effectively prevents signal interference and makes communication more stable.
8.Cable buckle design: The fixing point is on the nylon card wire, so that the shell is not damaged by external force during the process of screw fastening. It is more capable of digesting all external forces' collision and traction during long-term use, thus effectively protecting all crimping points.
9.Applications: Industrial control equipment, radios, computers, tax control machines, automation control equipment, industrial instruments, etc.
Additional Features
- ackage included: 1 x DB25 female breakout board female adapter with case ,1x Nylon cable pressing plate ,2x Screws,2x Long bolts,2x Nuts,1x Screwdriver.
