Vszerda Adapter 10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier Selector JMB575 JMS580
Limited time offer, ends 01/24 By YuXuan Technology
- 10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier Selector ;;Dual chipset at the adapter, JMB575+JMS580.
- JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.
- JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.
- With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
- Complies with Serial ATA 6Gb/s Electrical Specification 3.2;;;Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

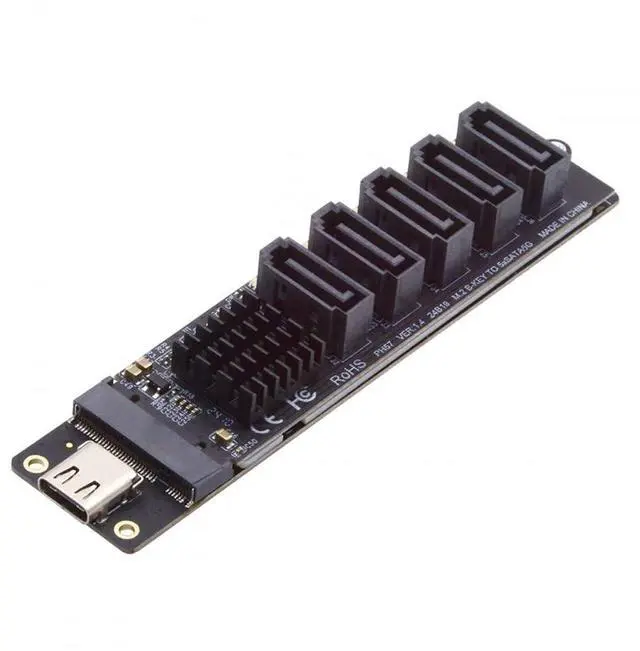

10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier Selector

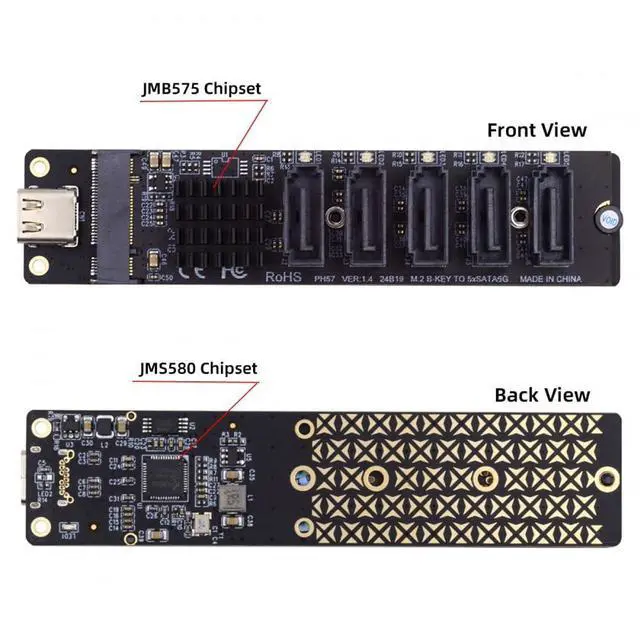

Dual chipset at the adapter, JMB575+JMS580.

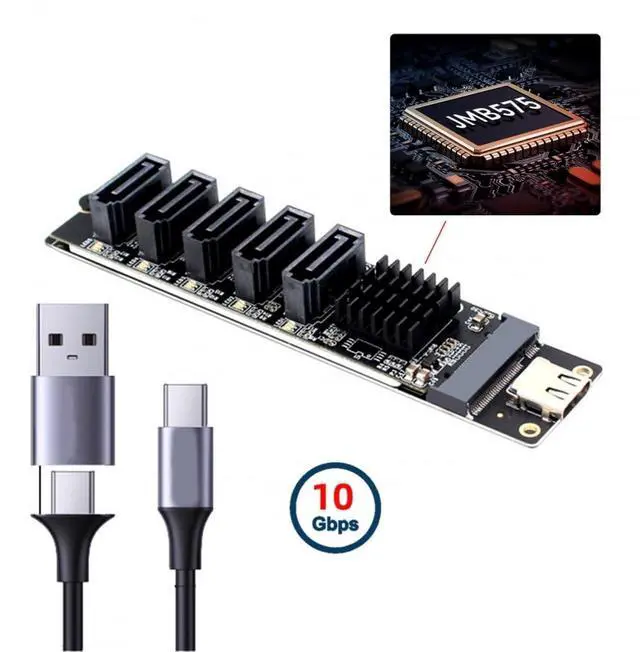

JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

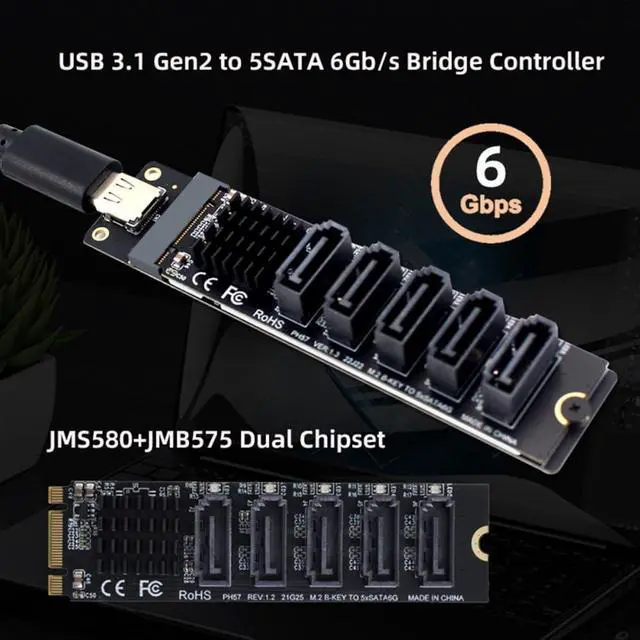

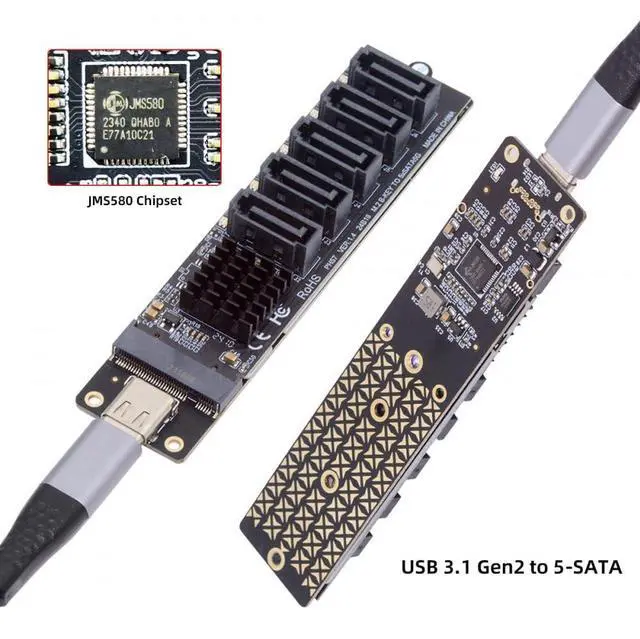

JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.

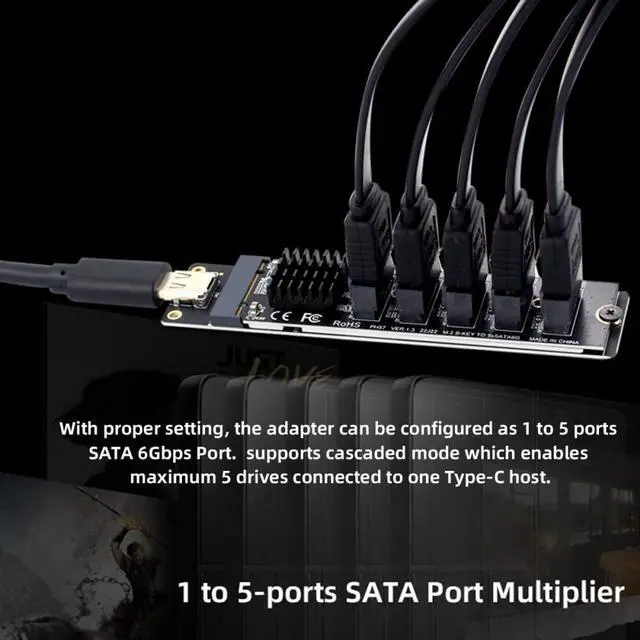

With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
Key Features:
Complies with Serial ATA 6Gb/s Electrical Specification 3.2;
Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification;
Support 5 port SATA 6Gbps interface; Supports BIST and loopback mode;
Support command-based and FIS-based switching; Support PM aware and non-PM aware host;
Main control chip: JMB575+JMS580

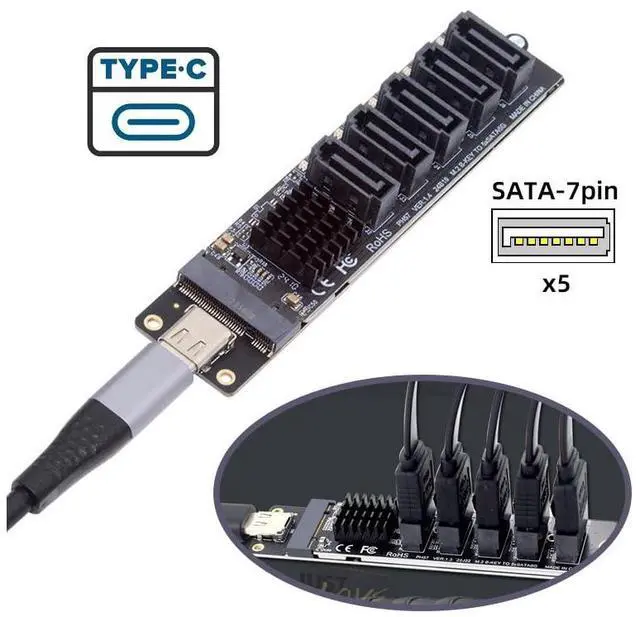

Interface: 5 x SATA3.0 interface
