Vszerda Type-C USB3.2 USB4 20Gbps to M-Key M.2 NGFF NVME SATA SSD PCBA Enclosure 2280/2242/2260mm RTL9220

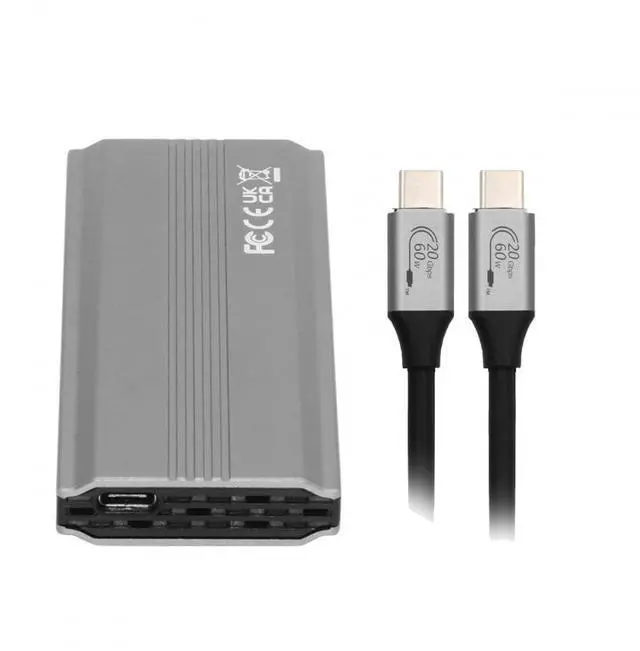

- The item included one Enclosure,20Gbps Cable,Screwdriver. (The SSD not include.)
- The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.
- In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
- In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.

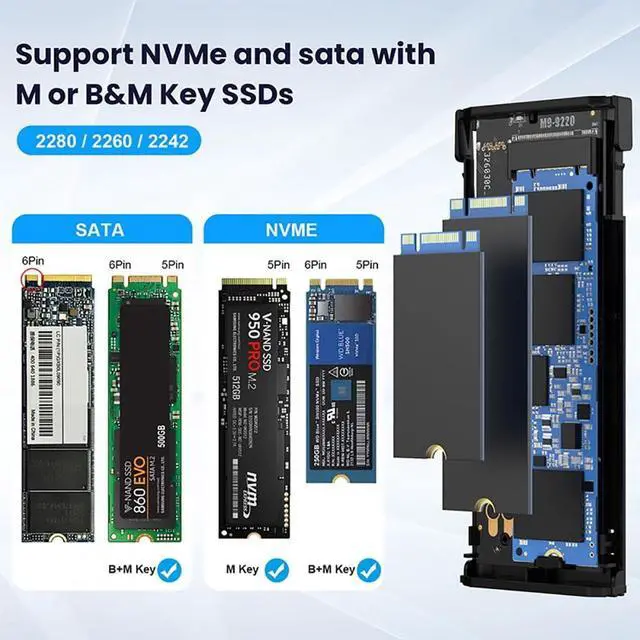

- It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.Fit for 2242/2260/2280mm NGFF/NVME M.2 SSD.(The NGFF SSD is not included)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type-C USB3.2 USB4 20Gbps to M-key M.2 NGFF NVME SATA SSD PCBA Enclosure 2280/2242/2260mm RTL9220
The item included one Enclosure,20Gbps Cable,Screwdriver. (The SSD not include.)
The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.
In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.
Fit for 2242/2260/2280mm NGFF/NVME M.2 SSD.(The NGFF SSD is not included)
