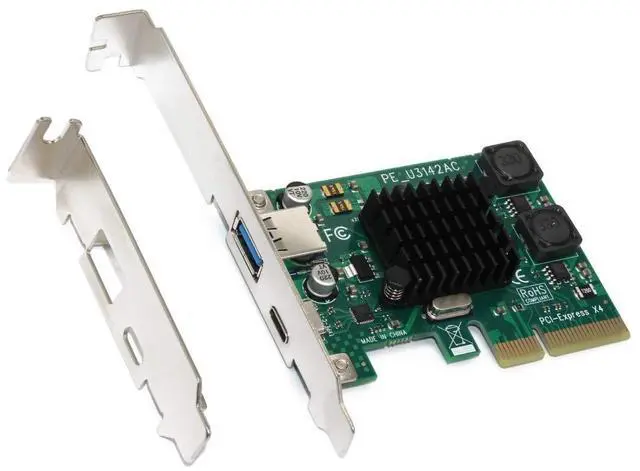

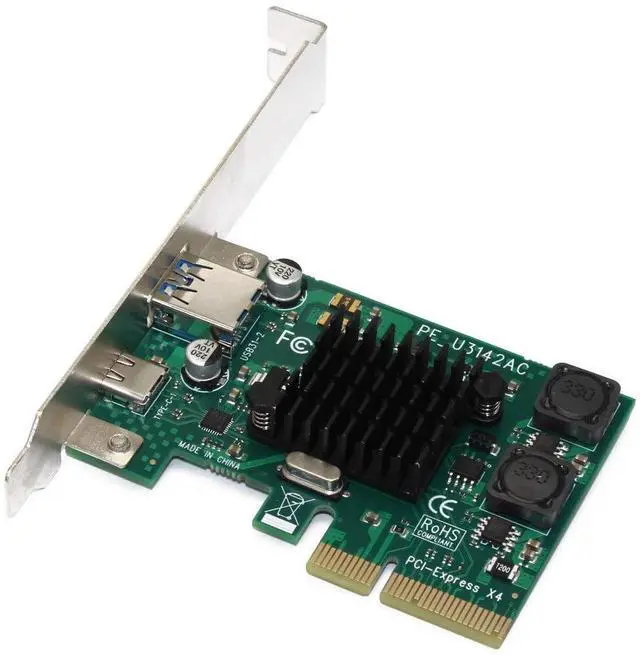

Vszerda Add on Cards PCI-E to USB3.1 Gen-11 10Gbps Type-A Type-c Dual-Port Expansion Card Desktop PC Motherboard PCIE 4X USB 3.1 Type C Riser Adapter

Feature:

• 1. ASM3142 main control chip. Adopt advanced technology of low voltage power supply. Support USB3.1 dual port, up to USB3.1 Gen-11 10Gbps.

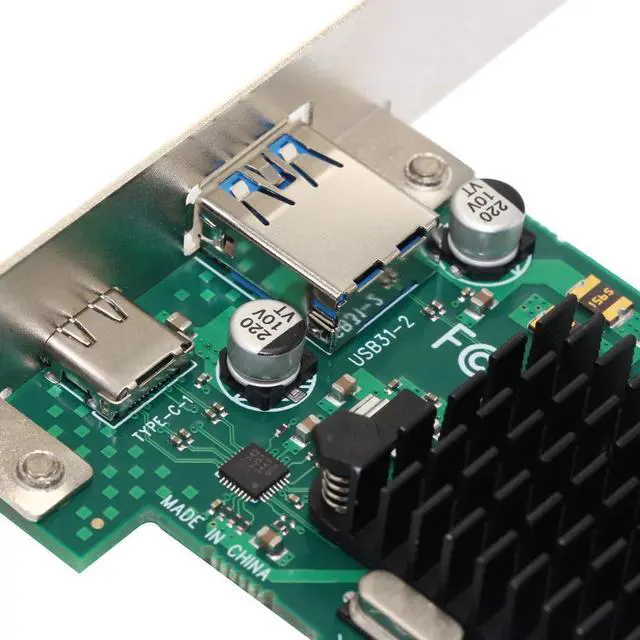

• 2. Support 2 devices running simultaneously with Type-A+Type-C USB3.1 dual port, and maintain the compatibility with the existing USB peripheral products.
• 3. Independent voltage regulator capacitor. Each interface is equipped with an independent voltage regulator capacitor to ensure stable power supply for each interface. The capacitor is of solid-state patch type, which can withstand high temperature up to 250?.

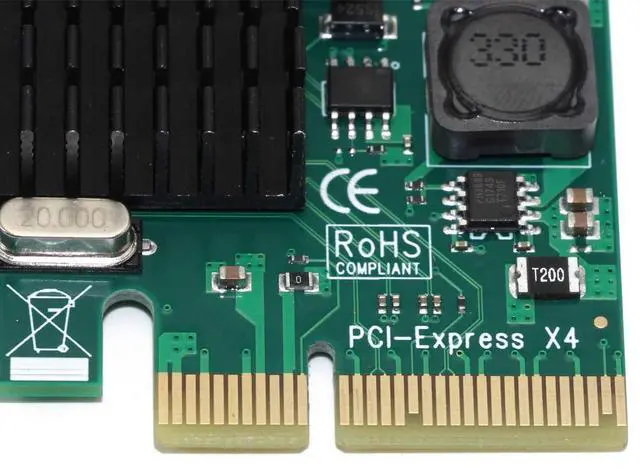

• 4. The thickened immersion gold process makes the contact more reliable and the transmission more stable, not easy to cause packet loss and distortion, and easy to realize 10,000 times of plugging and unplugging, suitable for PCI-Ex4, x8, x16 slots.
• 5. Free external power cord, standard semi-high-grade board
• 6. 2 USB3.1 ports with power supply module

• Specifications:Brand: JMT
• Product model: U3142AC
• Power supply interface: USB3.1*2
• Bus interface: PCI-E X4 (available for PCI-E X4/PCI-E X8/PCI-E X16)
• Extended interface: Type-A+Type-C
• Main control model: ASM3142
• Transmission rate: 1000Mbps dual port
• Support system: For XP/WIN7/WIN8/WIN8.1/WIN10, etc.
• Support chassis: support floppy drive installation

Notes:

Please allow 1-3mm differs due to manual measurement.

Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Package List:

1 x Expansion Card

2 x Screws

1 x Half Height Baffle

1 x Driver Disk

Additional Features

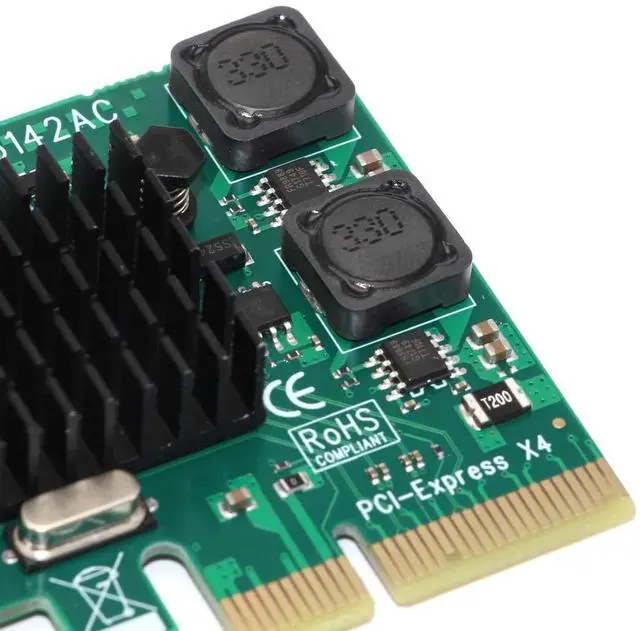

• 4. Equipped with 2 independent power management modules, supplying power without external power supply, so that the two interfaces can work independently without interference, more stable operation and more reliable to use.

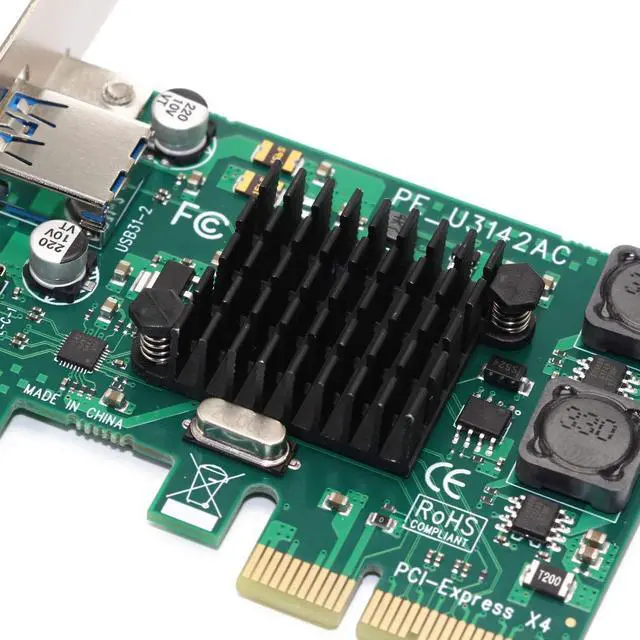

• 5. The thickened immersion gold process makes the contact more reliable and the transmission more stable, not easy to cause packet loss and distortion, and easy to realize 10,000 times of plugging and unplugging, suitable for PCI-Ex4, x8, x16 slots.Adopt imported alloy cooling fin with great heat conduction ability, which can efficiently dissipate the heat so that the expansion card is always at normal temperature and maintain stable operation.
