DIXSG Outdoor PoE Passthrough Switch - 1 In 3 Out Extender, IEEE802.3af/at Powered, 100Mbps Ethernet, Wall Mount Waterproof Plug and Play

PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

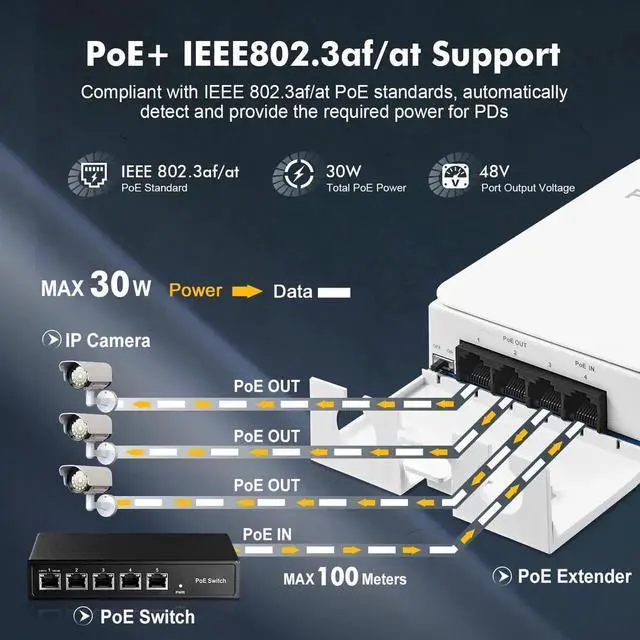

IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.

PoE pin:

Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);

Output: 1/2 (+), 3/6 (-)

Outdoor weatherproof Industrial grade ABS polymer material shell, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.

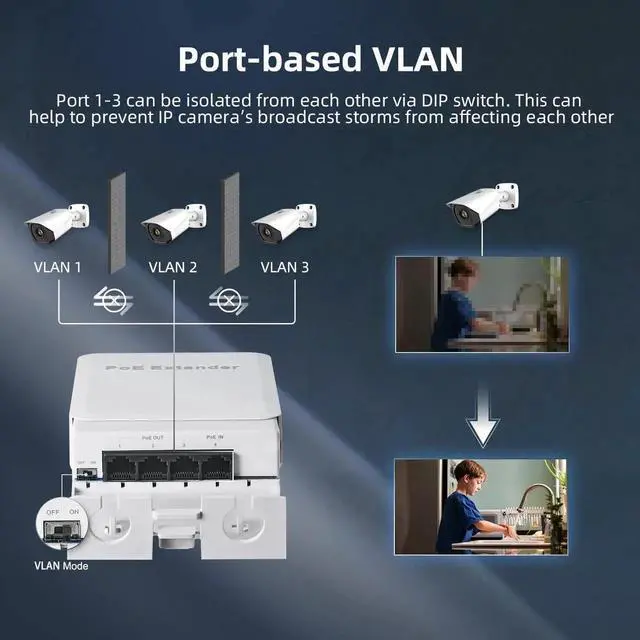

Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*. Support VLAN mode and extension 250m, controlled by dipswitch
