DIXSG HDMI Matrix, HDR 4K@60Hz 4 in 2 Out HDMI Switch Splitter with IR Remote, HDMI Matrix Switch + Optical Toslink + 3.5mm L/R Audio Output, Support UHD HDMI2.0, HDCP2.2, 18Gbps, EDID, Audio Extract

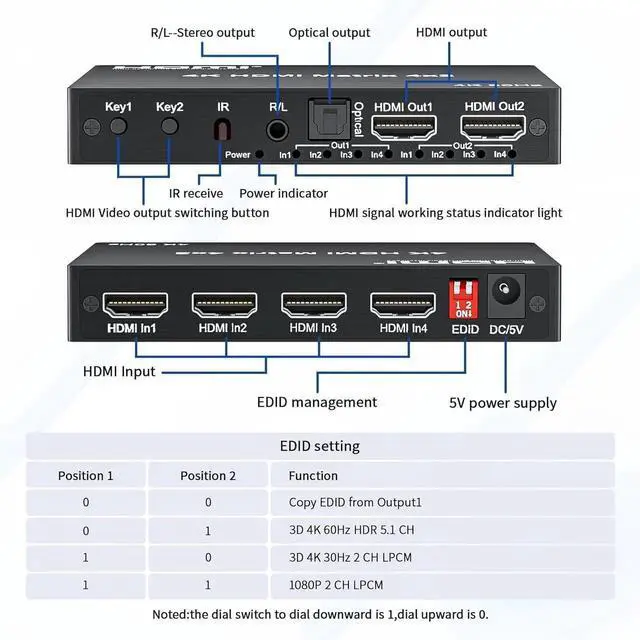

EDID function can set the video and audio format of the HDMI source

Flexible EDID switching provides 4 switching modes that can be met for different resolution needs

NOTE!!!

After you had set the EDID, please restart the HDMI Matrix Switch

4X2

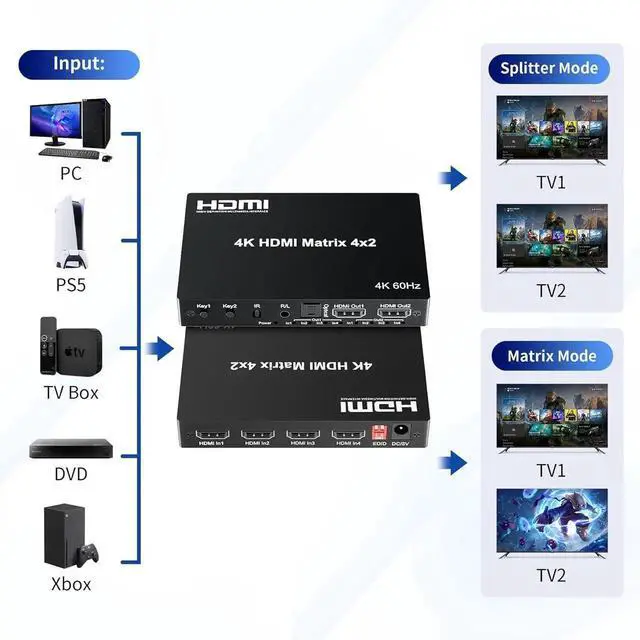

HDMI Matrix: Be able to connect up to 4 HD signal sources to 2 HDMI Display terminals via optical or digital stereo headphone output. Can be controlled by a IR remote control or button press

4K High Resolution: Supports resolution up to 4K (3840x2160) @60Hz, supports HDR, Ultra HD and 18Gbps video bandwidth. HDMI 2.0 and HDCP 2.2 complaint

Audio Extract: Supports LPCM/Dolby/DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract separately or simultaneously by Optical SPDIF or 3.5 mm headphone audio output port

Compatibility: Support HDCP 2.2 and HDMI 2.0. Input signal compatible with computer, PS3, PS4, PS4 pro, Xbox, NS, HD player, Fire TV, Apple TV etc.

Output support: monitors, projector, HDTV etc

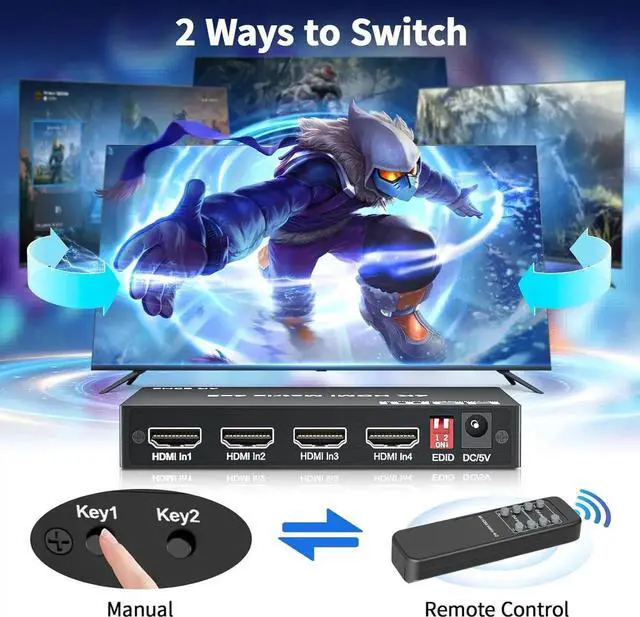

EDID Management: Allowing to set the EDID to adjust the resolution and audio format. You can switch the 2 input source by using remote control or pressing the manual button
