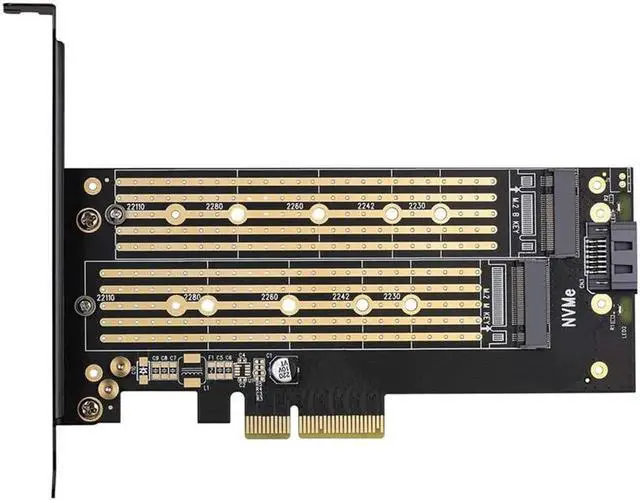

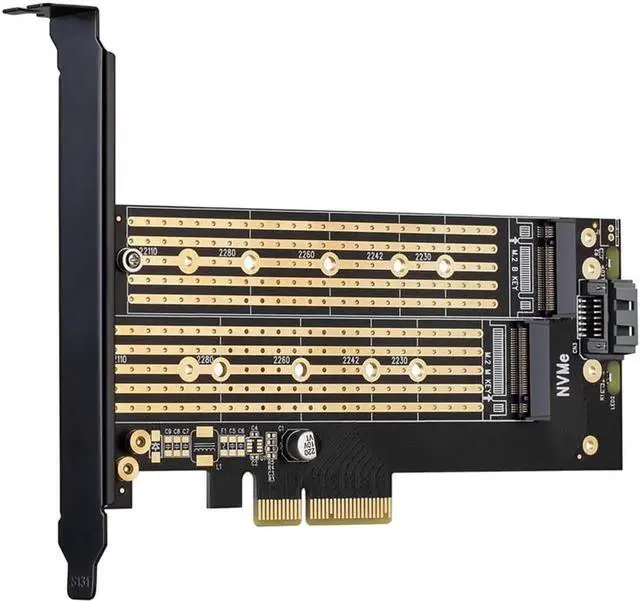

DIXSG Dual M.2 PCIE Adapter for SATA or PCIE NVMe SSD with Advanced Heat Sink Solution,M.2 SSD NVME (m Key) and SATA (b Key) 22110 2280 2260 2242 2230 to PCI-e x 4 Host Controller Expansion Card

Features:

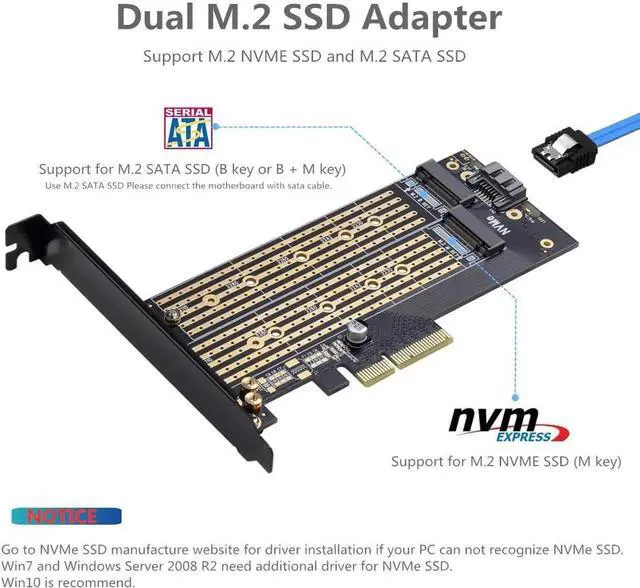

Supports one M.2PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously

Supports PCIE M.2 SSD (NVMe or AHCI, Key-M)

SupportsSATA-based M.2 SSD (Key-B / B+M)

Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD

Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard

PCB 24 X 5copper hole effective ventilation heat dissipation,Including 2 heat sinks

Transparent tothe operating system and no driver required

NOTE :

You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M.2 SATA SSD (Key B).(SATA Cable Has Been Included)

You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.

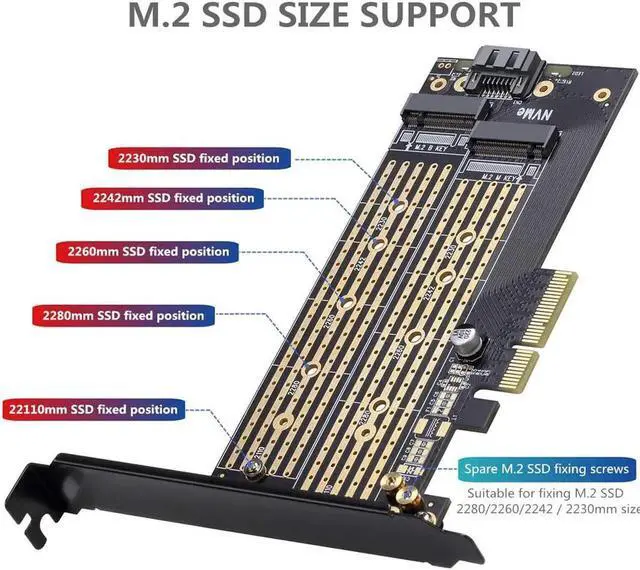

Size support:

Supports NVME & SATA M.2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)

System:

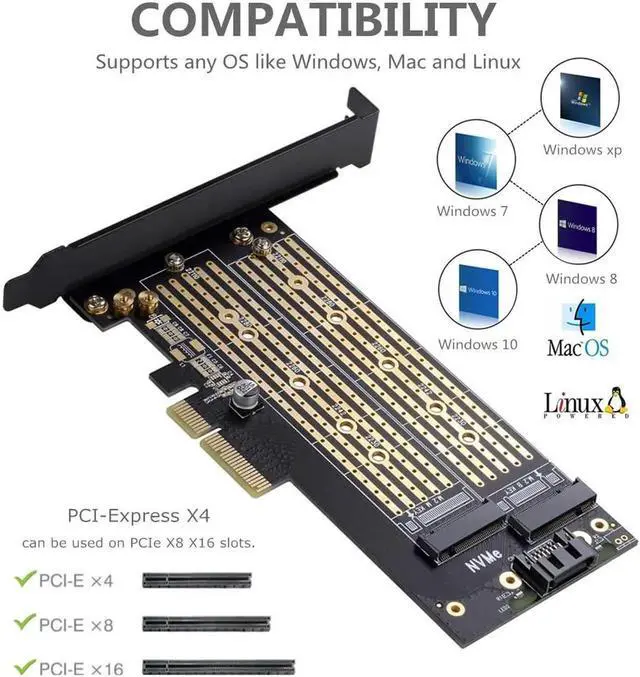

Supports any OS like Windows, Mac and Linux.(no driver required)

Applicable Slots:

Supports PCI-Express X4, X8, X16 slots.

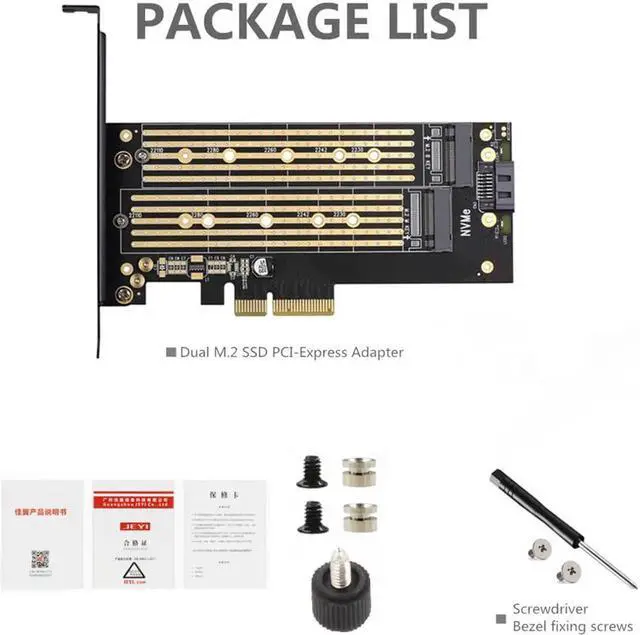

Package list:

M.2 (NVME & SATA) SSD Adapter Card x1

Regular/Low Profile PCIe Bracket x1

Aluminum Heatsink x1

Screwdriver x1

Screw kit x1
