DIXSG HDMI to Component Converter, AUBEAMTO HDMI to 1080P YPbPr 5RCA RGB + R/L Video Audio Adapter, Support Apple TV, PS5, Roku, Xbox, Fire Stick, DVD Players to HDTV and Projector

HDMI to 1080P YPbPr Converter converts HDMI input signal into analog YPbPr video and R/L audio. Please make sure your output device has YPbPr interface output, not RCA interface. Note: Not a YPbPr component to HDMI converter, ,it can not be reverse to use.

It is a resolution pass-though converter. The output video resolution is identical to the input signal and it has no scale function. So please make sure the HDMI input signal source and YPbPr output source have the same resolution to make this product work.

HDMI to YPbPr Converter compatible with DVI by a DVI-HDMI cable or connector (not included), support most HDMI connected devices, like PS3, PS4, PS5, Roku, Fire TV, Blu-ray DVD, Xbox, Roku, Game Console, Amazon Fire TV, Notebook etc.

HDMI to YPbPr Adapter supports 165MHz/1.65Ghps per channel(6.75Gps all channel)bandwidth for HDMI Input. Support multiple HDMI/Component resolutions: 480P@50/60Hz, 576P@50/60Hz, 720P@50/60Hz, 1080p@50/60H.

Easy to Use, Install in seconds. AUBEAMTO HDMI to component YPbPr does not need of setting. Please make sure the input signal resolution is not greater than 1080P.

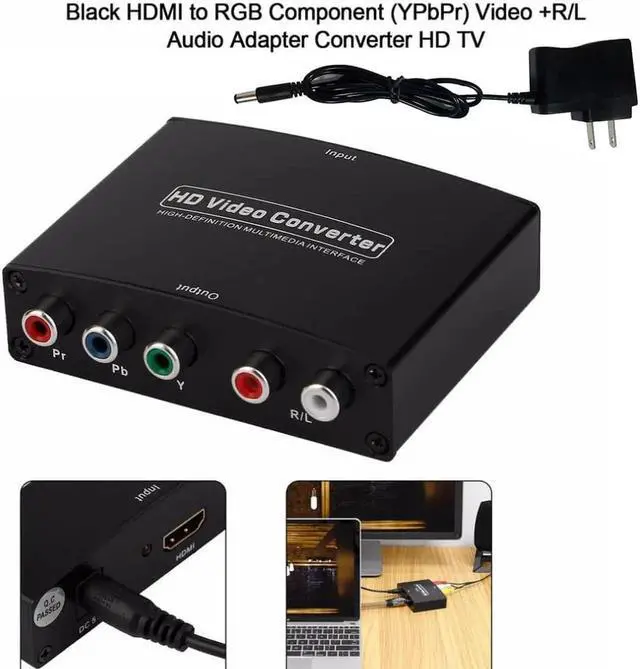

HDMI to Component box is designed to help user easily convert digital HDMI or DVI(using a DVI-HDMI connector, not included) signal from an HDMI or DVI enabled source to component RGB video with R/L audio, allowing the viewing of digital video to be presented on a RGB display via standard component video cable.

Features:

- Audio output format: 2 channel LPCM;

- Compliant with HDMI 1.3, Support HDCP 1.2

- Support 165MHz/1.65Ghps per channel(6.75Gps all channel)bandwidth for HDMI Input

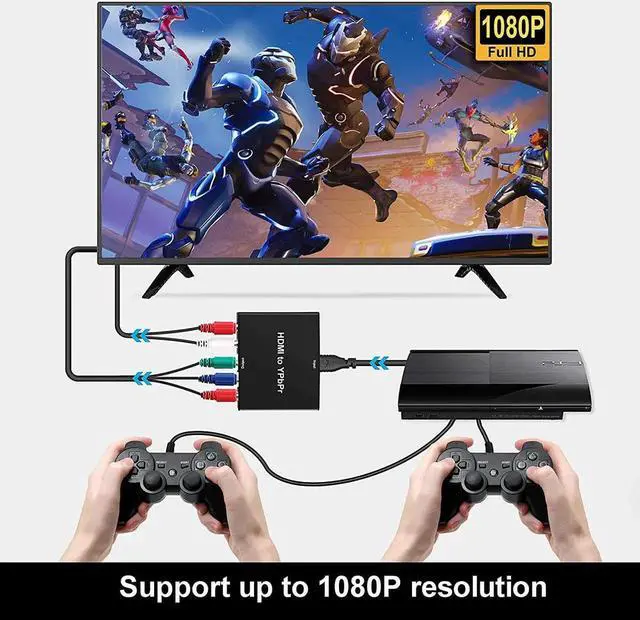

- Support HDMI resolutions: 480P@50/60Hz, 576P@50/60Hz, 720P@50/60Hz, 1080P@50/60Hz (not support 1080i)

- Support Component Video resolutions: 480P@50/60Hz,576P@50/60Hz,720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz

Connection steps:

1. Connect the HDMI input from source device to this converter. (Input cables are optional)
2. Connect the YPbPr and R / L audio output of this product to the display device.
3. Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.
4. Power on all connected devices, Choose the input of the display device to its YPbPr channel.
5. The image does not need to be adjusted, the Converter will position it automatically, the user may adjust the horizontal position under some extreme condition.
6. Some traditional CTR display not work after connected witch this Converter This mainly caused by these Displays only supporting 480i and 576i YPbPr interlaced resolution. Therefore, we suggest to choose LCD Display or those can support YPbPr CRT Displays.

Kindy Note:

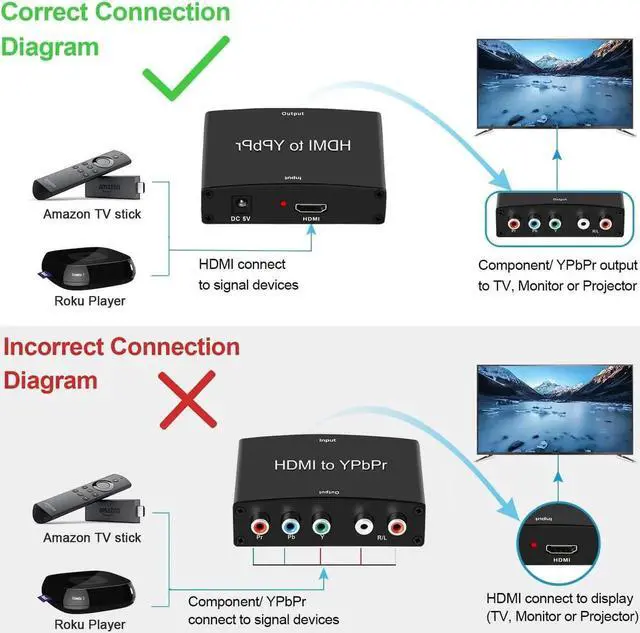

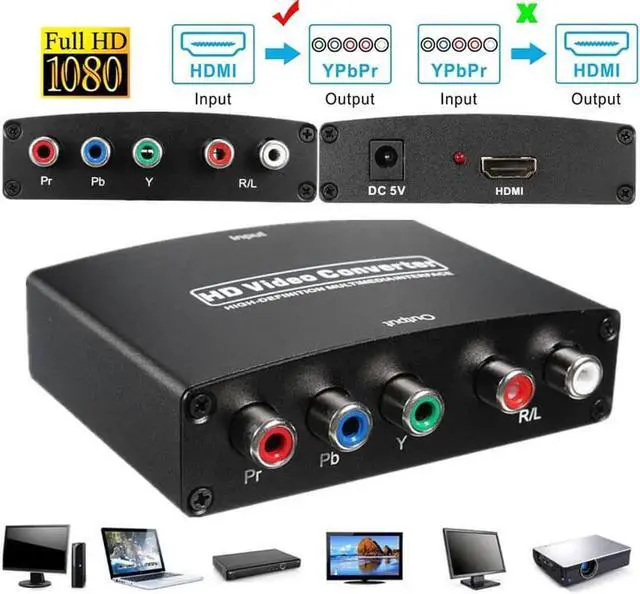

1. This is a HDMI to YPbPr component converter adapter, Not Component to HDMI, not YPbPr component to HDMI converter, It does not work in the opposite direction.
2. This HDMI to 5RCA adapter does not have the downscaler function. If your component video device does not support 720P or 1080P, then you need to adjust the input HDMI signal to 480 or 576 resolution. As some component video device may be old,only support 480 or 576 resolution formats. And this product is BYPASS, which means that the output signal depends on the input signal.
3. Make sure the input source and output device resolutions are the same(not higher than 1080P)
4. Please confirm power the converter when you using it.
5. Please make sure each port of the YPbPr cable is connected correctly and plugged into the bottom.

HDMI to 1080P YPbPr Converter converts HDMI input signal into analog YPbPr video and R/L audio. Please make sure your output device has YPbPr interface output, not RCA interface.

Note: Not a YPbPr component to HDMI converter,, it can not be reverse to use.

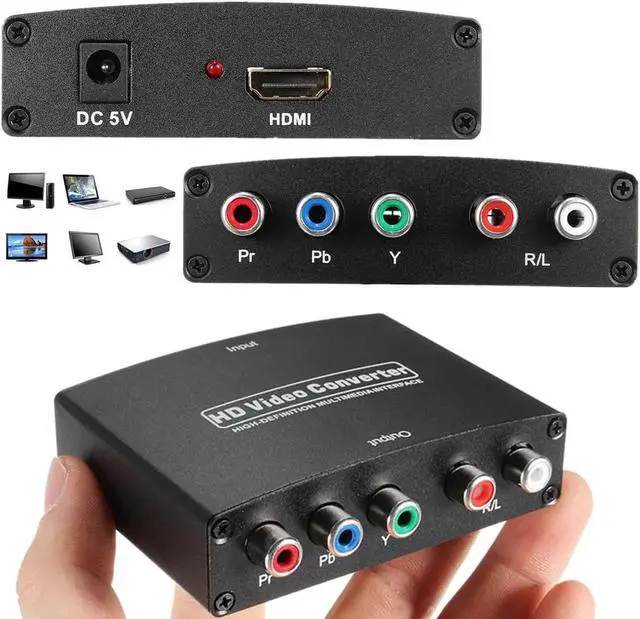

Specification:

1.

Input: HDMI

2.

Output: Component + R/ L audio

3.

HDMI video input format: 1080i/p(50/60Hz)720p(50/60Hz)576p (50hz) 480p (60Hz)

4.

YPbPr video output format: 1080i/p(50/60Hz), 720p(50/60Hz), 576p (50hz), 480p (60Hz).

Features:

- Audio output format: 2 channel LPCM;

- Compliant with HDMI 1.3, Support HDCP 1.2

- Support 165MHz/ 1.65G hps per channel( 6.75G ps all channel)bandwidth for HDMI Input

- Support HDMI resolutions: 480P@50/60Hz, 576P@50/60Hz, 720P@50/60Hz, 1080P@50/60Hz (not support 1080i)

- Support Component Video resolutions: 480P@50/60Hz, 576P@50/60Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
