DIXSG 196FT/60m HDMI Extender with IR & Loop Out 1080P HDMI Extender No Loss RJ45 to HDMI Extender Transmitter Receiver over Cat5e/Cat6

HDMI Extender with POC 1080P HDMI Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver over Cat5e/Cat6

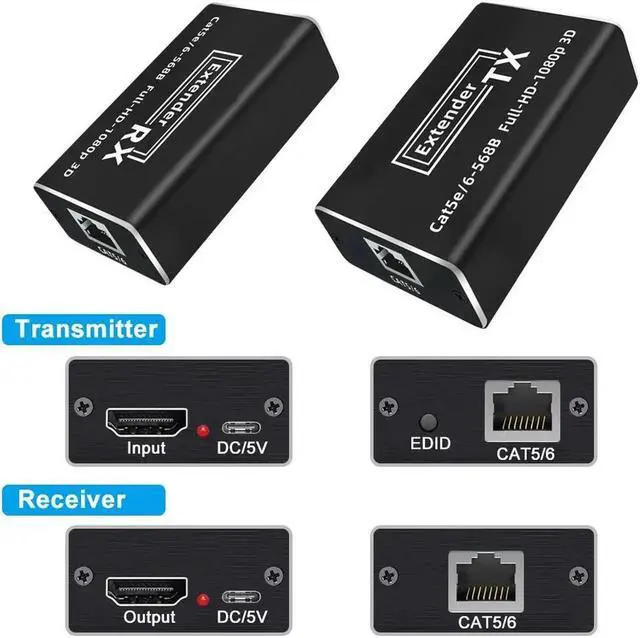

Description:

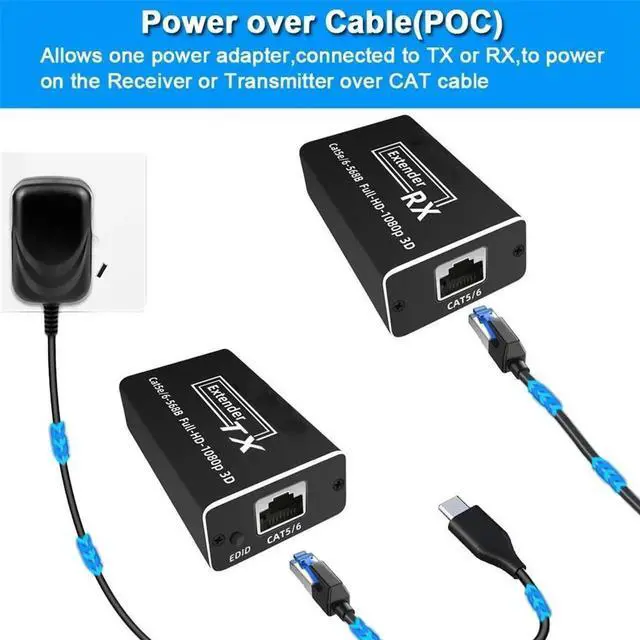

HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, 3D,POC. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

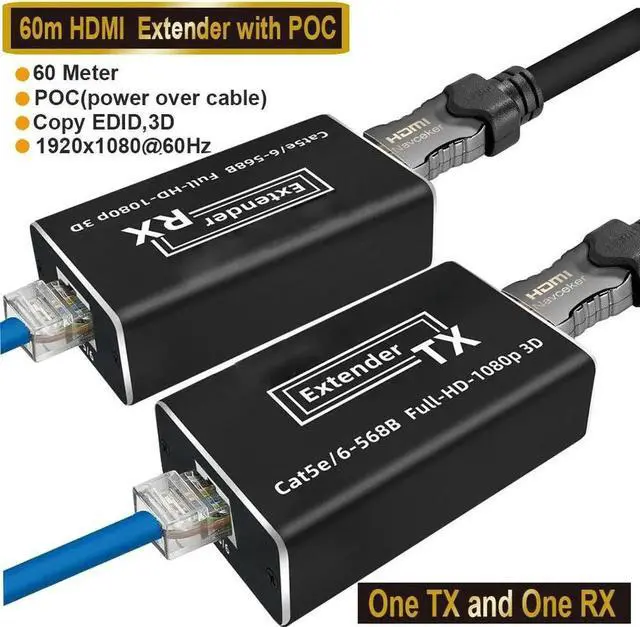

1. Long range transmission:up to 60m/196ft over a single CAT6 cable;
2. Video resolution:Up to1920x1080P@60Hz,3D;
3. Audio sampling rate:32kHz, 44.1kHz and 48kHz ;
4. Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
5. Uncompressed mode:ZERO Delay,No loss
6. Male to male:one TX to one RX applicataion;

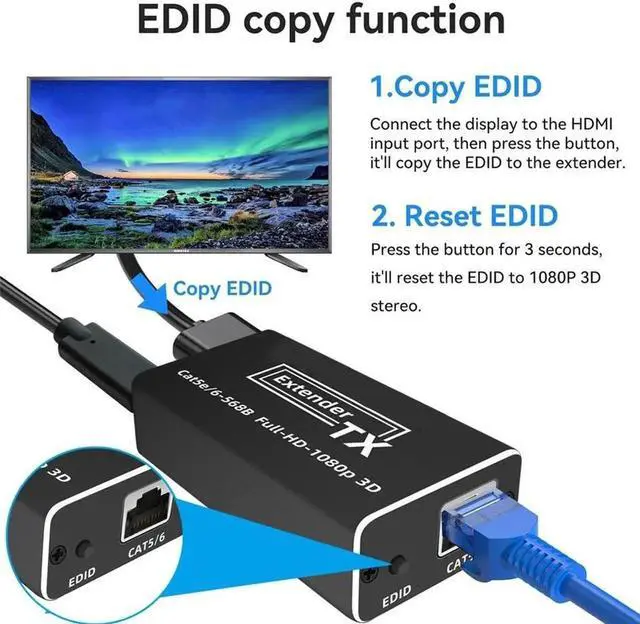

7. Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again;
8. Video standard:compliance with HDMI 1.4 and HDCP 1.4 standard;
9. Built-in automatic adjustment system:make the image smooth, clear and stable;
10. Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
11. Simple to install, plug and play

Specifications:

NEW 60M HDMI Over Network Extender 1080P HDMI Transmitter by RJ45 CAT5e CAT6 LAN Extensor

Video

Standards----------HDMI 1.4; HDCP 1.4

Maximum pixel clock------165MHz

Maximum data rate-------10.2Gbps

Resolution ------1920X1080P@60Hz

Connector-----HDMI-A

Impedance--------100Ohms

UTP

Interface-----RJ45/IEEE-568B

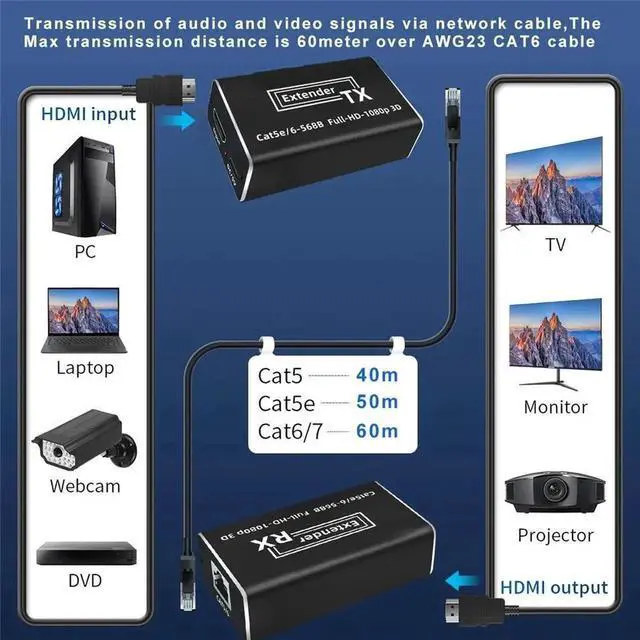

Transmission distance--------CAT5e:50m/164ft,CAT6:60m/196ft

Other

Power supply-----The power adapter: DC 5V/1A

Power dissipation------MAX 3W

Temperature-------Operating: -5 ~ +70

Humidity-------Operating: 5% ~ 90%

Dimension-------94*71*25mm

The warranty--------1 year free warranty

Package List:

HDMI extender Transmitter...............................1 piece

HDMI extender Receiver...................................1 piece

Power Adapter..................................................1 piece

User Manual..................................................1 piece

Extender HDMI RJ45 1080P HDMI extender cat5 60M HDMI extender audio Kit over ethernet cat6/5e for PS4 apple TV PC laptop HDTV

Long range transmission: up to 60m/196ft over a single CAT6 cable;

Video resolution: Up to1920x1080P@60Hz, 3D;

Audio sampling rate: 32kHz, 44.1 kHz and 48kHz;

Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD;

Uncompressed mode: ZERO Delay, No loss

Male to male: one TX to one RX applicataion;

Copy EDID: It is extended display identification data, Press the button 3seconds, the TX will copy the signal data, like auto-match. They remember the EDID information if you plug them off the power adapter and them turn them back again;

Video standard: compliance with HDMI 1.4 and HDCP 1.4 standard;

Built-in automatic adjustment system: make the image smooth, clear and stable;

Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

Simple to install, plug and play
