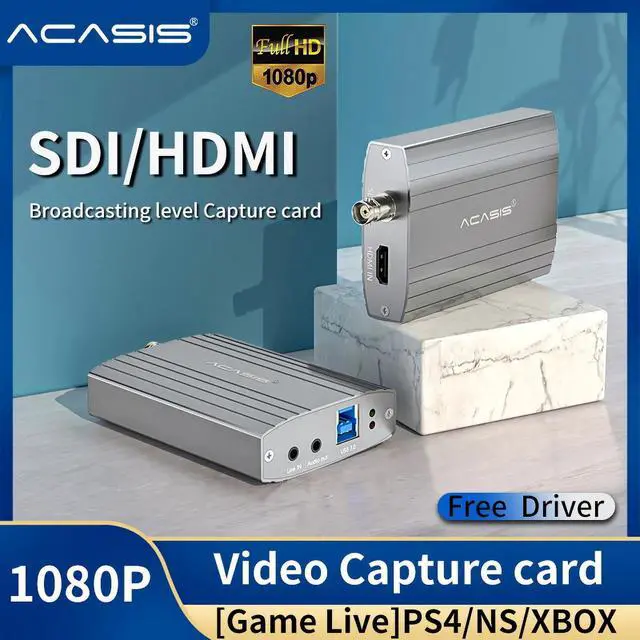

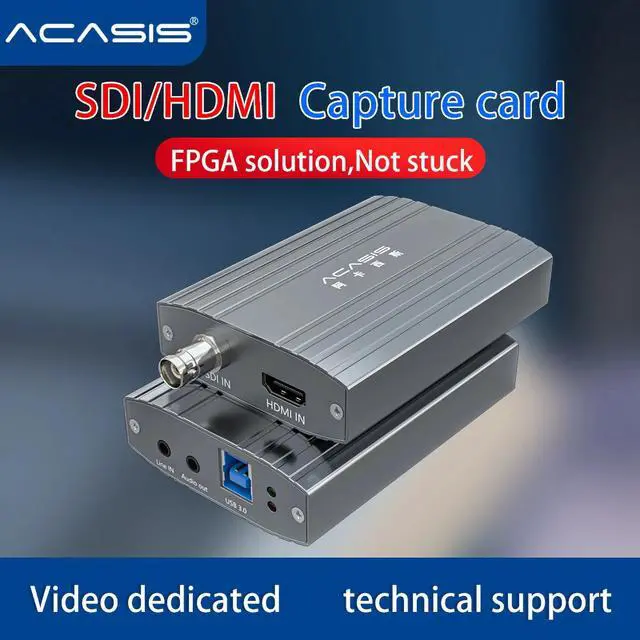

DIXSG 1080P60HZ USB-C 3.0 HDMI+SDI dual signal capture card (with audio) plug-in switching signal

This DIXSG SDI and HDMI Dual Switch Capture Card is plug-and-play, no driver installation required!

Host interface: USB-C/USB3.0 , 5GB/s transmission bandwidth.

Video Input Interface: HDMI1.4*1 4K30HZ/1080P60HZ 3G-SDI HHD-SDI*1.

Recording Capture Resolution: 640x480-1920x1080, Frame Rate: 25/30/60 fps.

3.5 Audio Interface: ADUIO connector - can be connected to 3.5MM headphone / LINE IN connector - can be connected to 3.5MM mixer. 3.5MM mixer.

Audio input: HDMI audio SDI audio LINE IN audio.

Output color space: YUY2.

package accessories: AC-U3SDH/USB-A-C cable/HDMI HD cable/manual (warranty card).

Compatible Software: Windows Media Encoder (Windows). Adobe Flash Media Live Encoder (Windows, OS X). Real Producer Plus (Windows). VLC (Windows, OS X, Linux). QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X), OBS-Studio, DaumPotPlayer, etc....

Compatible systems: Windows 7, Windows Server 2008 R2, Windows 10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above).

Note:

USB3.0 capture card for most scenarios, but the USB3.0 capture card must have a computer USB3.0 or USB3.0 interface to use (if you are a C-port computer, it is recommended that the computer connects to the docking station, the capture card USB interface to the docking station on the USB3.0 interface)

Capture card to support stereo, AUDIO interface can be connected to the headset to hear capture card internal sound support stereo.

capture card can not display two screens at the same time.

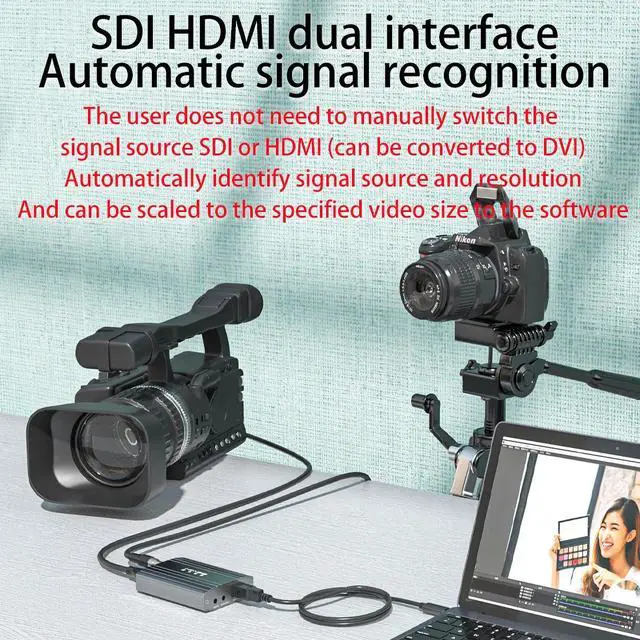

. Capture card is a priority to capture the first access to the capture card signal, such as the first connected to the HDMI connected to the SDI, then the capture card is to capture the HDMI signal. If you need to change the signal to SDI, just unplug and plug the HDMI cable.

. The LINE audio of the capture card can be output at the same time with HDMI audio.

1. This ACASIS AC-U3SDH (HDMI + SDI capture card) capture card video capture resolution up to resolution: 640x480-1920x1080p, frame rate: 25/30/60 fps, it outputs the color space to support RGB down, powerful features, excellent parameters, no need to install the driver, wiring is simple plug-and-play, it is suitable for large-scale game screen recording, various types of live broadcast, while it is installed inside the cooling fan, has a strong heat dissipation, which ensures that it can work for a long time without overheating. It is suitable for large-scale game screen recording, various types of live broadcasts, HDMI and SDI two kinds of interfaces to expand your usage, which allows you to use this capture card in more devices. Please let it become your most faithful partner!
2. Interface Requirements] Before purchasing the capture card to confirm whether the computer has a USB3.0 interface or USB3.0 interface above.If there is no USB3.0 interface capture card resolution can only reach 640X480, if your computer is TYPE-C interface is recommended to let customers prepare a docking station linked to the computer, the capture card USB connected to the docking station on the USB3.0 interface to use.
3. Advantages of USB3.0 capture card: Extremely low latency, almost imperceptible delay. High picture reproduction. Support stereo sound. Wider range of applicable devices and scenes

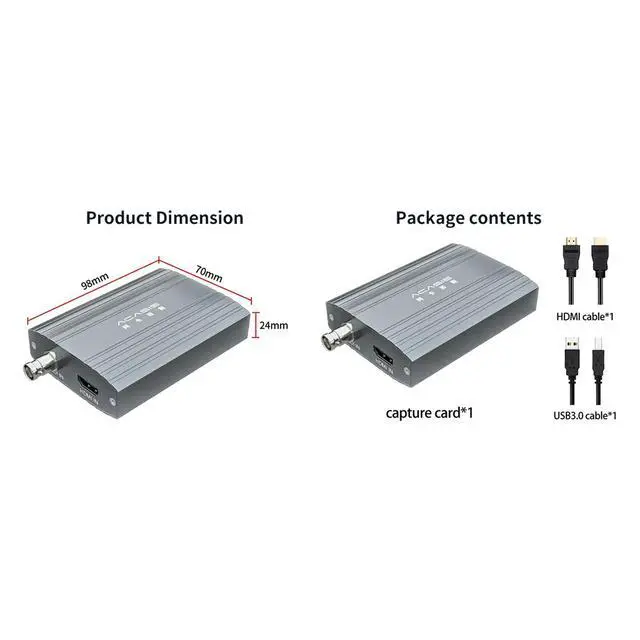

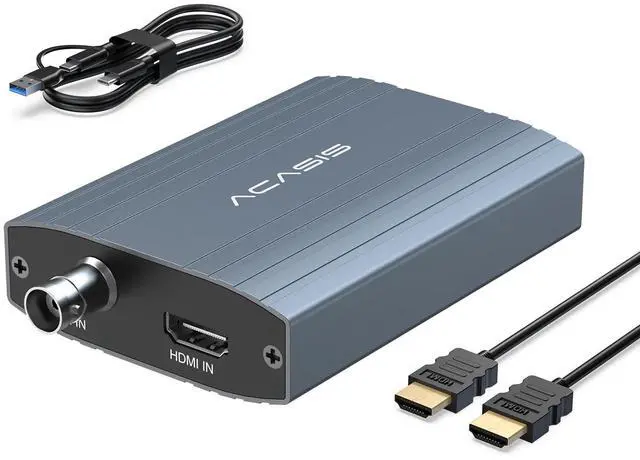

4. Accessories: capture card * 1 HDMI cable * TYPE-USB cable * 1 kraft box * 1 color box * 1 fixed cotton * 1
5. [Excellent performance]With SDI+HDMI dual interface compatible with more devices.LINE interface can be transmitted to computer with HDMI audio. Full aluminum alloy body for better texture
