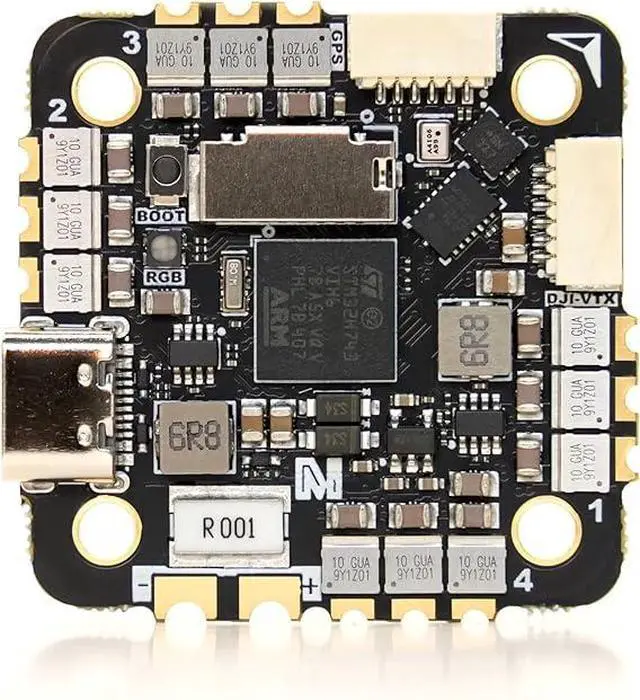

MicoAir743V2 AIO Flight Controller with 45A 4in1 ESC (Metal-Encapsulated ), STM32H743, Dual IMU, Barometer, 26S Input O3/O4 Support, Compatible with ArduPilot, PX4, Betaflight, INAV
- Product Dimensions 1.42"L x 1.42"W x 0.32"H
- Item Weight 10 Grams
- Display Type Video Output
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- High-Performance MCU: STM32H743 + Dual IMU + High-Precision Barometer Powered by the flagship STM32H743VIH6 MCU (480MHz, 2MB Flash), this flight controller delivers exceptional computing power and real-time responsiveness. Equipped with a BMI088 + BMI270 dual IMU setup for enhanced vibration resistance and accurate attitude sensing, along with the SPL06 barometer for precise altitude controlideal for demanding multirotor applications.
- Built-in 45A ESC with Fully Metal-Enclosed MOSFETs, Supports AM32 & Bi-Directional DShot Features an integrated 4-in-1 45A ESC built with high-quality metal-encapsulated MOSFETs, offering low internal resistance, high current handling, and excellent heat dissipation. Supports PWM / DShot300 / DShot600 / bi-directional DShot (BDShot) protocols with up to 48KHz PWM frequency for fast and responsive control. Wide voltage input (26S) ensures broad compatibility with various battery types. Ideal for 2-inch to 5-inch frames.

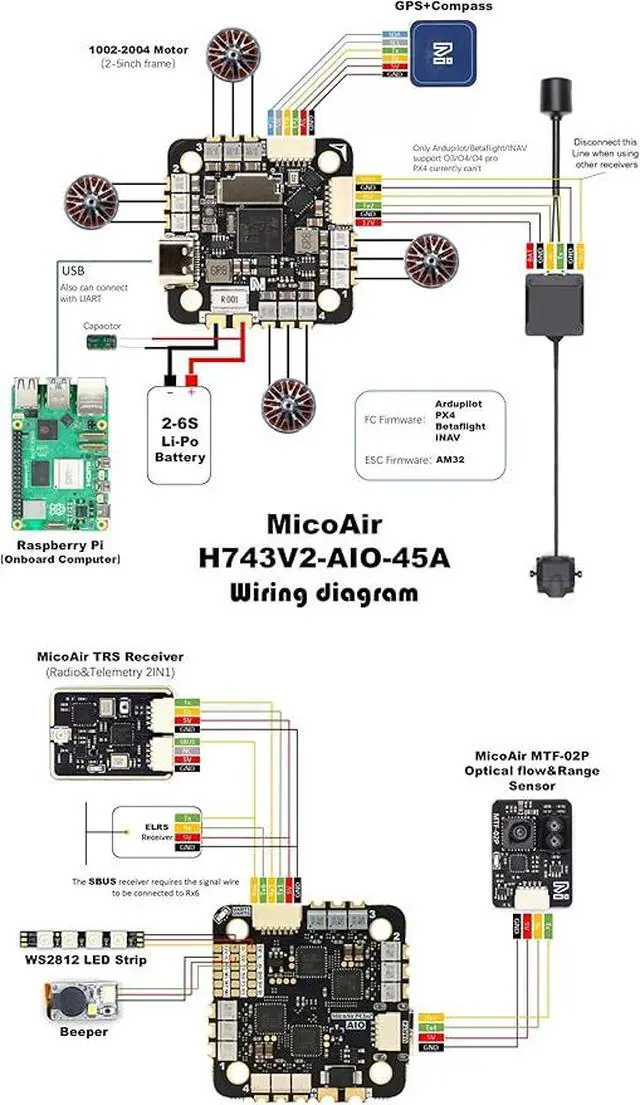

- Plug-and-Play Compatibility with O3 / O4 / O4 Pro HD Video Systems Optimized for HD transmission systems, with a dedicated SH1.0-6P connector supporting DisplayPort protocol and built-in 12V 2A power output. Ensures stable operation of O3/O4/O4 Pro without additional power modules or wiring. Simply plug and flystreamlined integration for HD FPV setups.

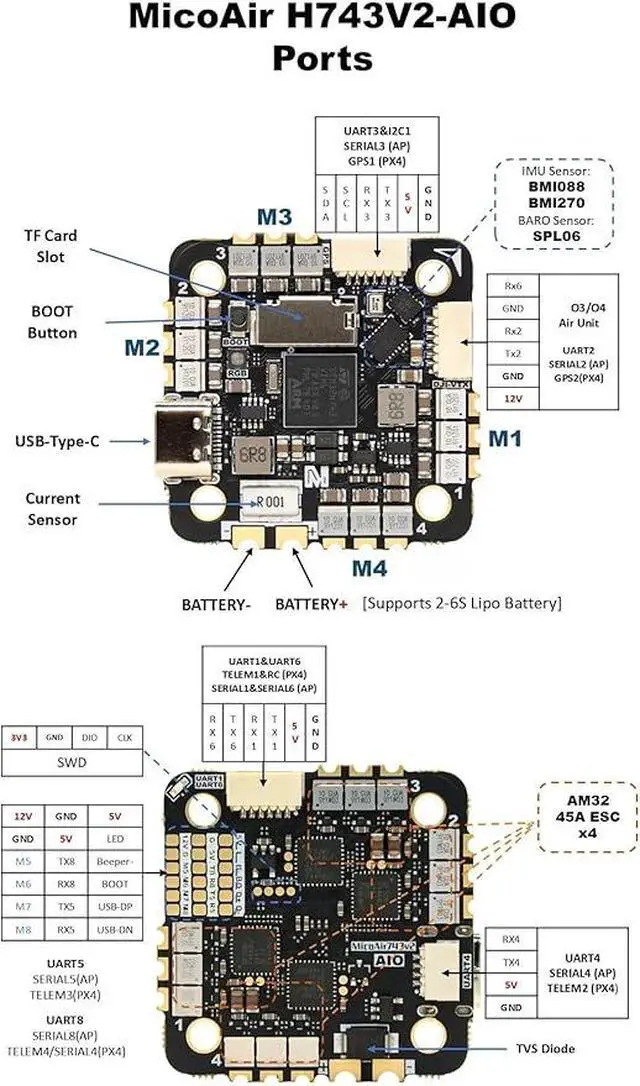

- Rich Interface Expansion & Full Compatibility with MicoAir Sensor Ecosystem Includes 5V 2A and 12V 2A regulated BEC outputs for peripherals such as optical flow modules, GPS units, and receivers. Offers extensive I/O: 7x UART (all DMA-enabled), 9x PWM outputs, TF card slot, I2C, SWD, 2x ADC, LED strip support, and buzzer port. Fully compatible with MicoAirs MTF-01/MTF-02 optical flow + ToF modules, GPS modules, telemetry units, and moretrue plug-and-play hardware/software integration with no soldering required.
- Full Support for Major Open-Source Flight Firmware Platforms Natively supports ArduPilot, PX4, Betaflight, and INAV, offering excellent firmware flexibility and long-term expandability. Designed for developers, engineers, and advanced pilots seeking a reliable and adaptable all-in-one flight control solution.
- Designed for Both High-Performance FPV and Advanced Research Applications offers a complete hardware interface layout and a rich ecosystem of compatible sensors . With comprehensive documentation , its an ideal platform for research, prototyping, and secondary development in robotics, UAV studies, and autonomous systems.
